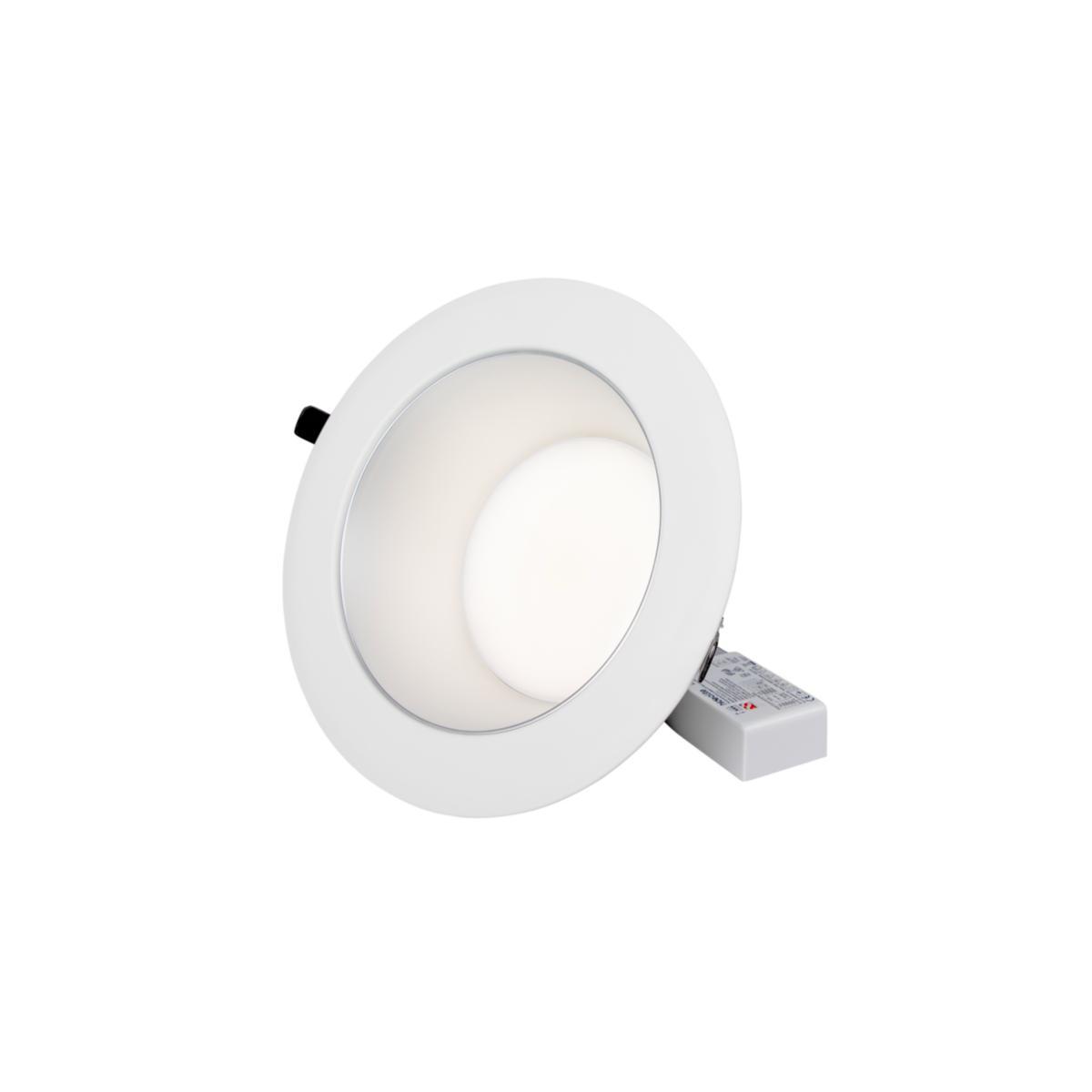

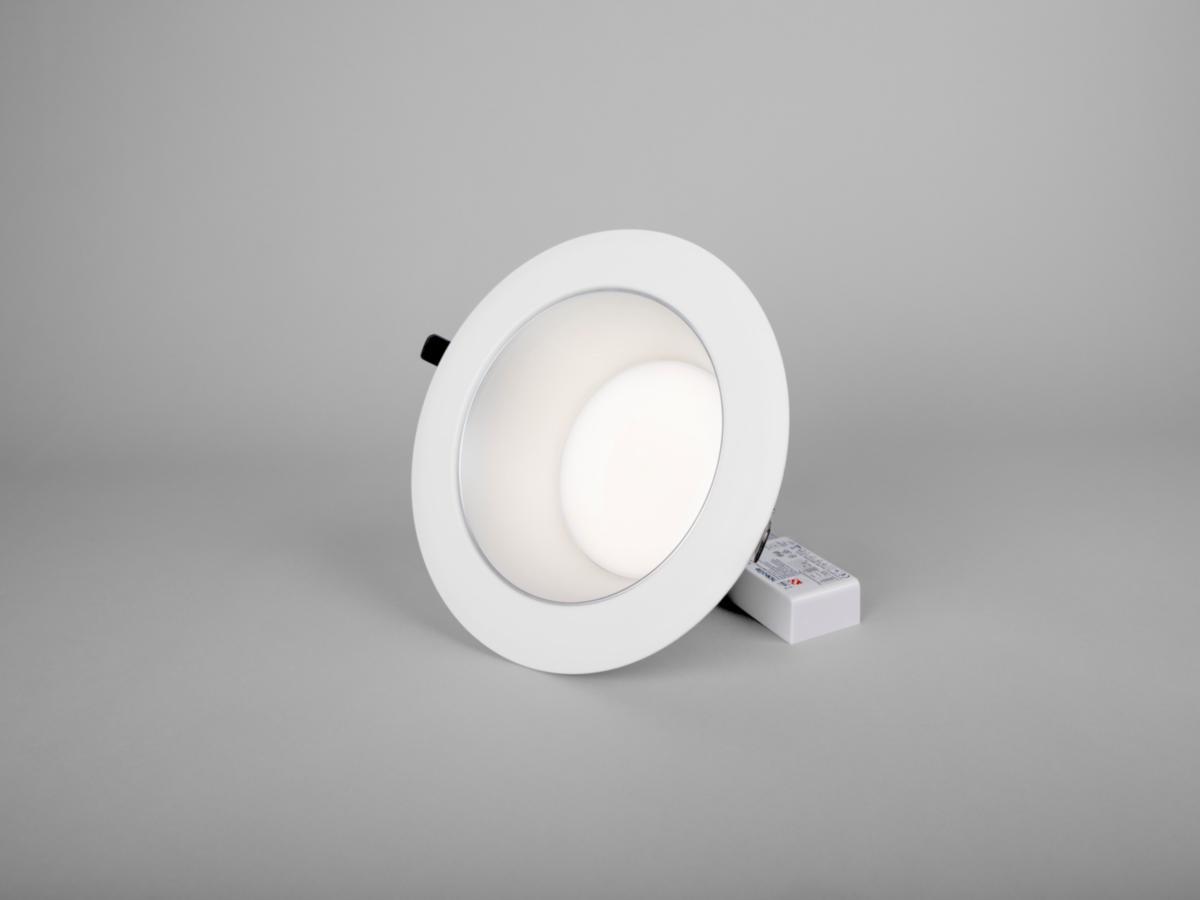

Downlight Echo L
Echo L 265 White
Article number: Suppl. article no:
7476829
4728
to see price and stock

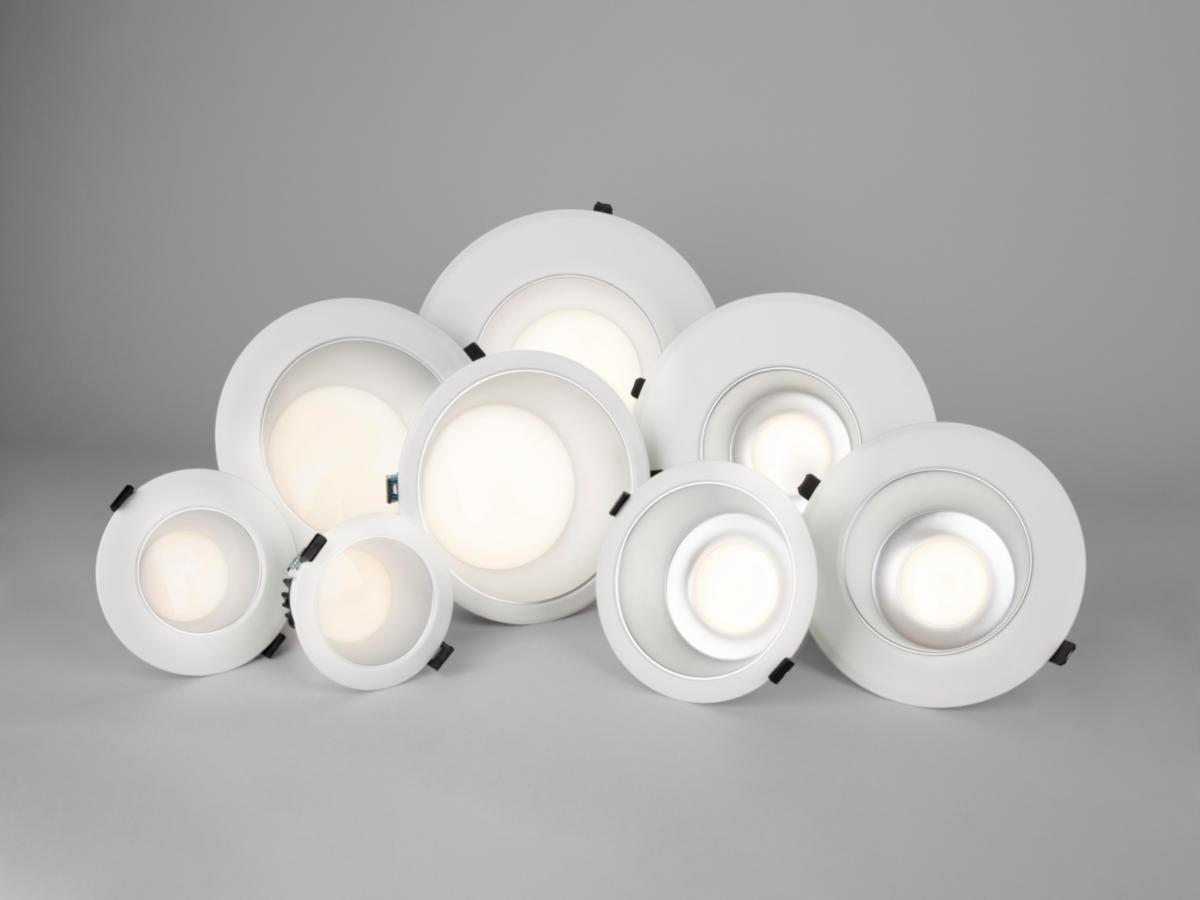

Skip changing the cover rings, instead choose a complete fixture in the size you need. Echo is a large product family that covers holes from 103-300mm. Dimmable all-round luminaire for public environments that require a lot of light, for example in rooms with higher ceiling heights, corridors or shops. Perfect for new installation and replacement of compact fluorescent lamps. Selectable color temperature via DIP switch. Echo M and Echo L have adjustable light flow via DIP switch. Supplied complete with driver for phase dimming or DALI-2. DALI-2 is delivered with Q-box Micro, quick terminals and screwless strain relief. Dimmable with the most common dimmers on the market.
- Article number: 7476829
- Suppl. article no: 4728
- Ean no: 7392971148274
- Material class QT4320
Technical data
- Packagin Size: 1 PCS/6 PCS
- Max. system power: 30 W
- Rated luminous flux according to IEC 62722-2- 1: 3160 lm
- Colour temperature: 3000-5700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: > 80° - Extreme wide beam
- Dimming DALI-2: No
- Outer diameter: 265 mm
- Built-in diameter: 210-250 mm
- Height/depth: 109 mm
- Lamp type: LED exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 1720 cd
- Reflector: Matt
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 4
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming 1-10 V: No
- Dimming programmable: No
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Power factor: 0.9
- Dimming phase cut-on (leading edge): Yes
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 2.5 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 105 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 75000 h
- Suitable for ceiling mounting: Yes
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 81 %
- Flickering value Pst LM: 0.034
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Constant light output (CLO): No
- Luminous flux adjustable: Continuously variable
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 27
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 46
- Stroboscope effect value SVM: 0.428
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: E
- Nominal current: 600-800 mA
- Connection type: Push-in clamp
- Luminous flux: 3000-3160 lm
- Built-in width: 210 mm
- REACH Date: 2023-05-16
- Built-in height/depth: 106 mm
- REACH Information obligation: No
- Emergency power supply integrated: No
