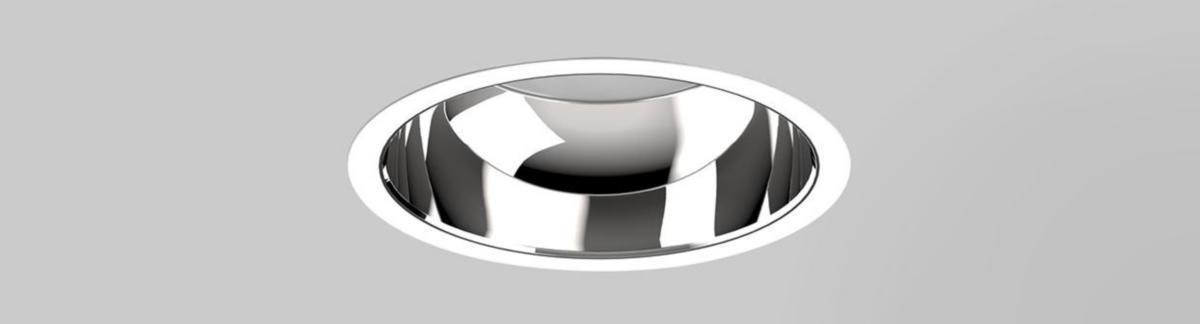

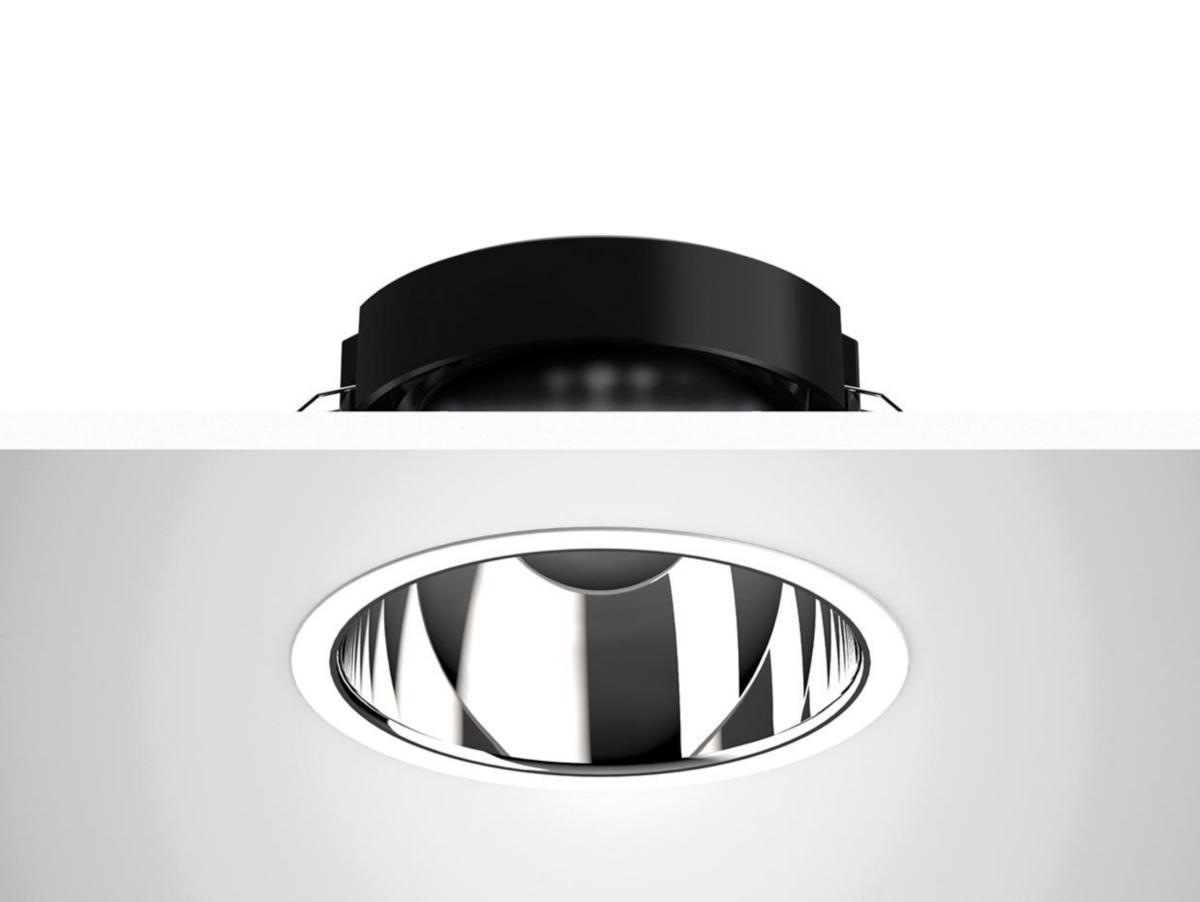

Downlight CCT Evo
DOWNLIGHT CCT 36W 3K DA UGR19
Article number: Suppl. article no:
7475758
1T8222DA
to see price and stock
CCT Evo is a downlight family in 3 sizes for offices where high demands are placed on glare reduction, quality and ease of installation.
- Article number: 7475758
- Suppl. article no: 1T8222DA
- Material class QT4480
Technical data
- Max. system power: 36 W
- Rated luminous flux according to IEC 62722-2- 1: 4074 lm
- Colour temperature: 3000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 41-80° - Wide beam
- Dimming DALI: Yes
- Dimming DALI-2: No
- Outer diameter: 234 mm
- Built-in diameter: 214 mm
- Lamp type: LED exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: Yes
- Number of poles: 5
- Dimming phase cut-off (trailing edge): No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: Yes
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: Yes
- Dimming manufacturer's proprietary system: No
- Power factor: 0.9
- Dimming phase cut-on (leading edge): No
- Material cover: Other
- Degree of protection (IP): IP54
- Dimmable: Yes
- Conductor cross section: 1.5 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 113 lm/W
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC/DC
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Type of wiring: Ending
- Connectable conductor cross section: 1-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Failure rate at median useful life of 35,000 h at 25 °C ambient (tq): 5 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 10 %
- Beam angle adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: Continuously variable
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 74
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 85
- Unified Glare Ratio (UGR): 19
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: A
- Reflector colour: Silver
- Connection type: Push-in clamp
- Luminous flux: 4074 lm
- REACH Date: 2022-01-01
- Built-in height/depth: 131 mm
- REACH Information obligation: No
- Emergency power supply integrated: No
