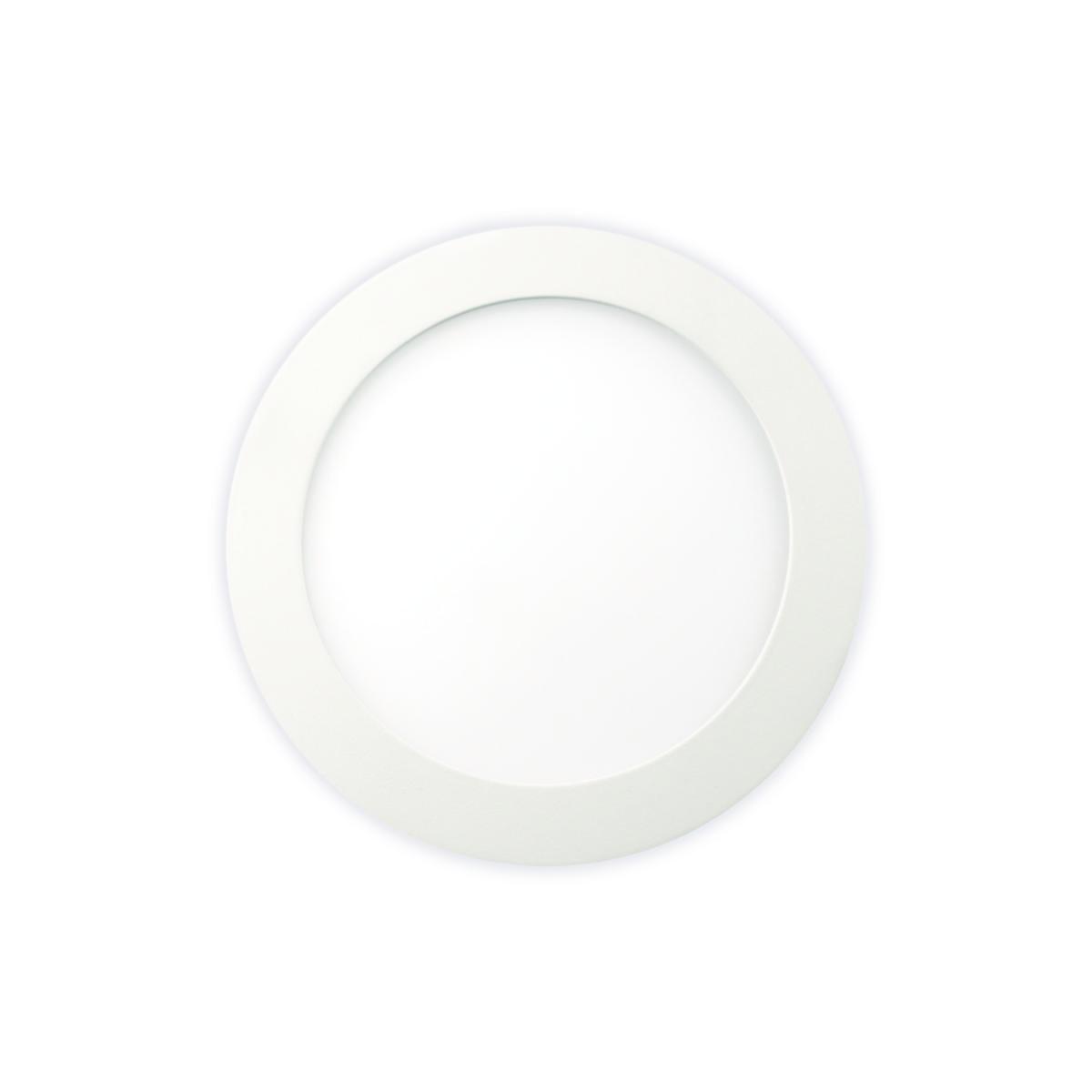

Downlight Alisia Elite
DOWNL ALISIA ELI 12W 3K MW/R 10242 ALISIA ELITE
Article number: Suppl. article no:
7474908
10242
to see price and stock
Alisia Elite is an innovative, elegant and flicker-free LED downlight with high light output and high color reproduction. Approved for installation directly in insulation and combustible material. Suitable for acoustic ceilings. The drive can be easily separated from the luminaire, which can be an advantage when painting. It is possible to mount with cable or 16 mm flex pipe.
- Article number: 7474908
- Suppl. article no: 10242
- Ean no: 5713080102421
- Material class QT4370
Technical data
- Max. system power: 12 W
- Rated luminous flux according to IEC 62722-2- 1: 920 lm
- Colour temperature: 3000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: > 80° - Extreme wide beam
- Dimming DALI: No
- Dimming DALI-2: No
- Outer diameter: 170 mm
- Built-in diameter: 155 mm
- Built-in height: 22 mm
- Height/depth: 22 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: None
- Housing material: Aluminium
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.9
- Dimming phase cut-on (leading edge): No
- Material cover: Plastic matt/satinized
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 1.5 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Diffuser lens/optic/panel
- Light outlet: Direct
- Luminaire efficacy: 77 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated life time L80/B10 at 25 °C: 35000 h
- Suitable for ceiling mounting: Yes
- Impact strength: IK06
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 1.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: Yes
- Beam angle adjustable: No
- Colour of light adjustable: No
- Luminous flux adjustable: No
- Exchangeable control gear: Yes
- Energy efficiency class: A+
- Connection type: Push-in clamp
- Luminous flux: 920 lm
- REACH Date: 2021-11-24
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A+
- REACH Information obligation: No
- Dimming depending on control gear: Yes
