Hide-a-lite

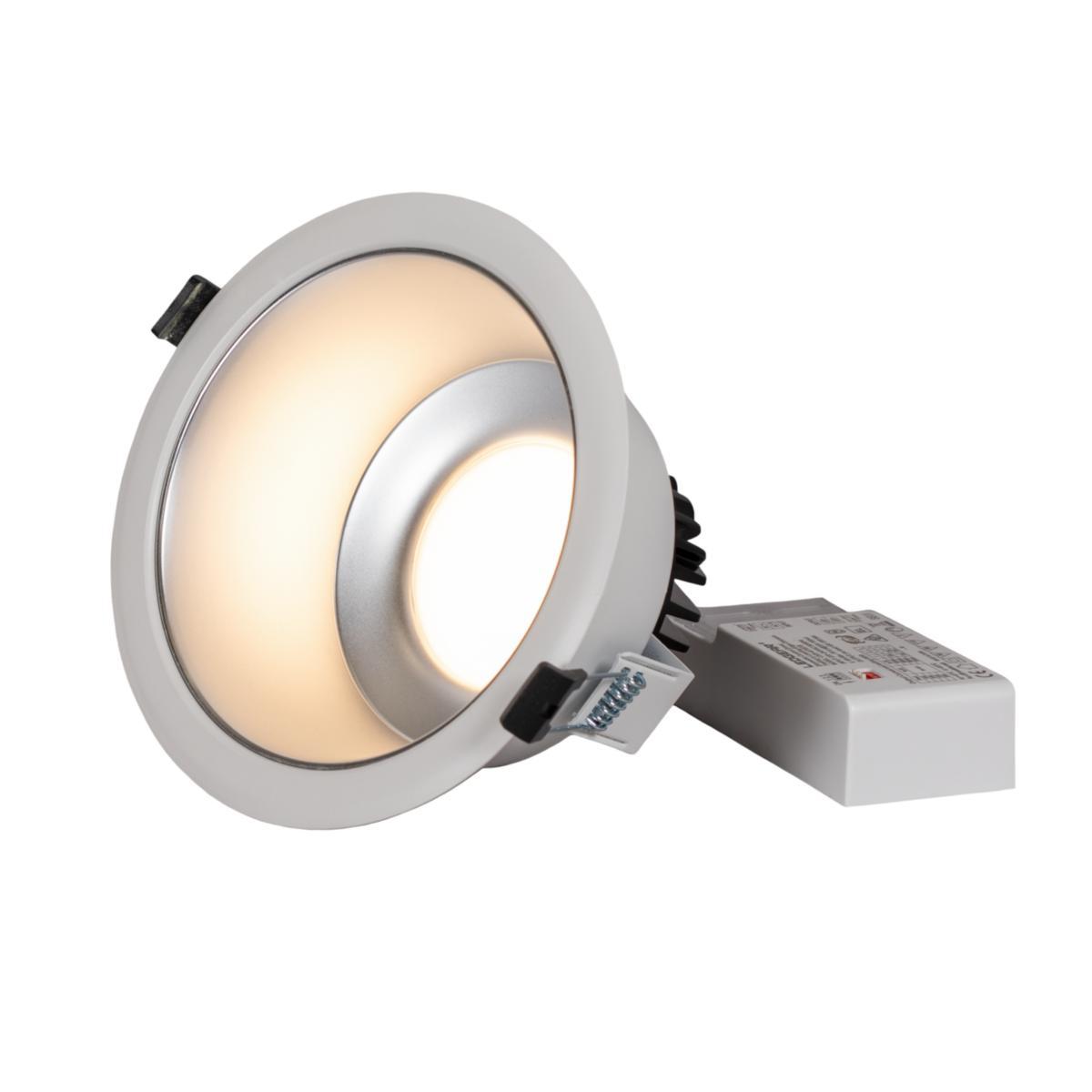

Downlight Echo
DL ECHO M WHITE 830/840 VIT ECHO M
Article number: Suppl. article no:
7474809
7474809
to see price and stock
Skip changing the cover rings, instead choose a complete fixture in the size you need. Echo is a large product family that covers holes from 103-300mm. Dimmable all-round luminaire for public environments that require a lot of light, for example in rooms with higher ceiling heights, corridors or shops. Perfect for new installation and replacement of compact fluorescent lamps. Selectable color temperature via DIP switch. Echo M and Echo L have adjustable light flow via DIP switch. Supplied complete with driver for phase dimming or DALI-2. DALI-2 is delivered with Q-box Micro, quick terminals and screwless strain relief. Dimmable with the most common dimmers on the market.
- Article number: 7474809
- Suppl. article no: 7474809
- Ean no: 7392971141305
- Material class QT4320
Technical data
- Packagin Size: 1 ST/8 ST
- Design: phase dimming
- Max. system power: 20 W
- Rated luminous flux according to IEC 62722-2- 1: 1780 lm
- Colour temperature: 3000-5700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: > 80° - Extreme wide beam
- Dimming DALI: No
- Dimming DALI-2: No
- Outer diameter: 172 mm
- Built-in diameter: 144-158 mm
- Height/depth: 106 mm
- Lamp type: LED not exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: Multi-coloured
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 1080 cd
- Reflector: Matt
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 4
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Power factor: 0.9
- Dimming phase cut-on (leading edge): Yes
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Material cover: None
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 2.5 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 94 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated life time L80/B10 at 25 °C: 100000 h
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 80 %
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Constant light output (CLO): No
- Luminous flux adjustable: Continuously variable
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 52
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 88
- Exchangeable control gear: Yes
- Energy efficiency class: A+
- Connection type: Push-in clamp
- Luminous flux: 1780-1870 lm
- Built-in width: 144 mm
- LED nominal current at constant current: 250-500 mA
- REACH Date: 2022-06-01
- Built-in height/depth: 104 mm
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Emergency power supply integrated: No
- Dimming depending on control gear: No
