Downlight P-753, Designlight
DOWNL P-753MW FIXED 15W P-753MW
Article number: Suppl. article no:
7474769
P-753
to see price and stock

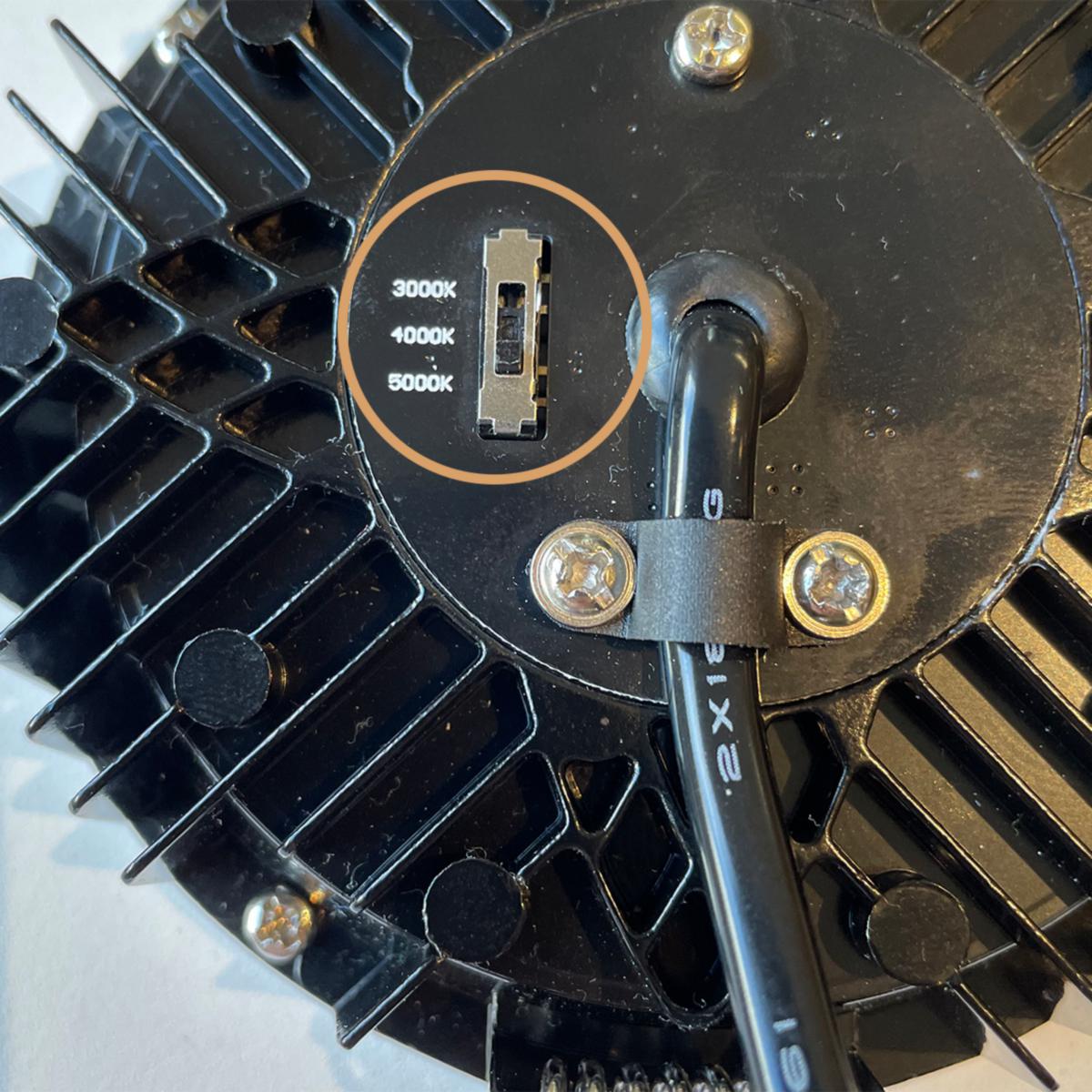

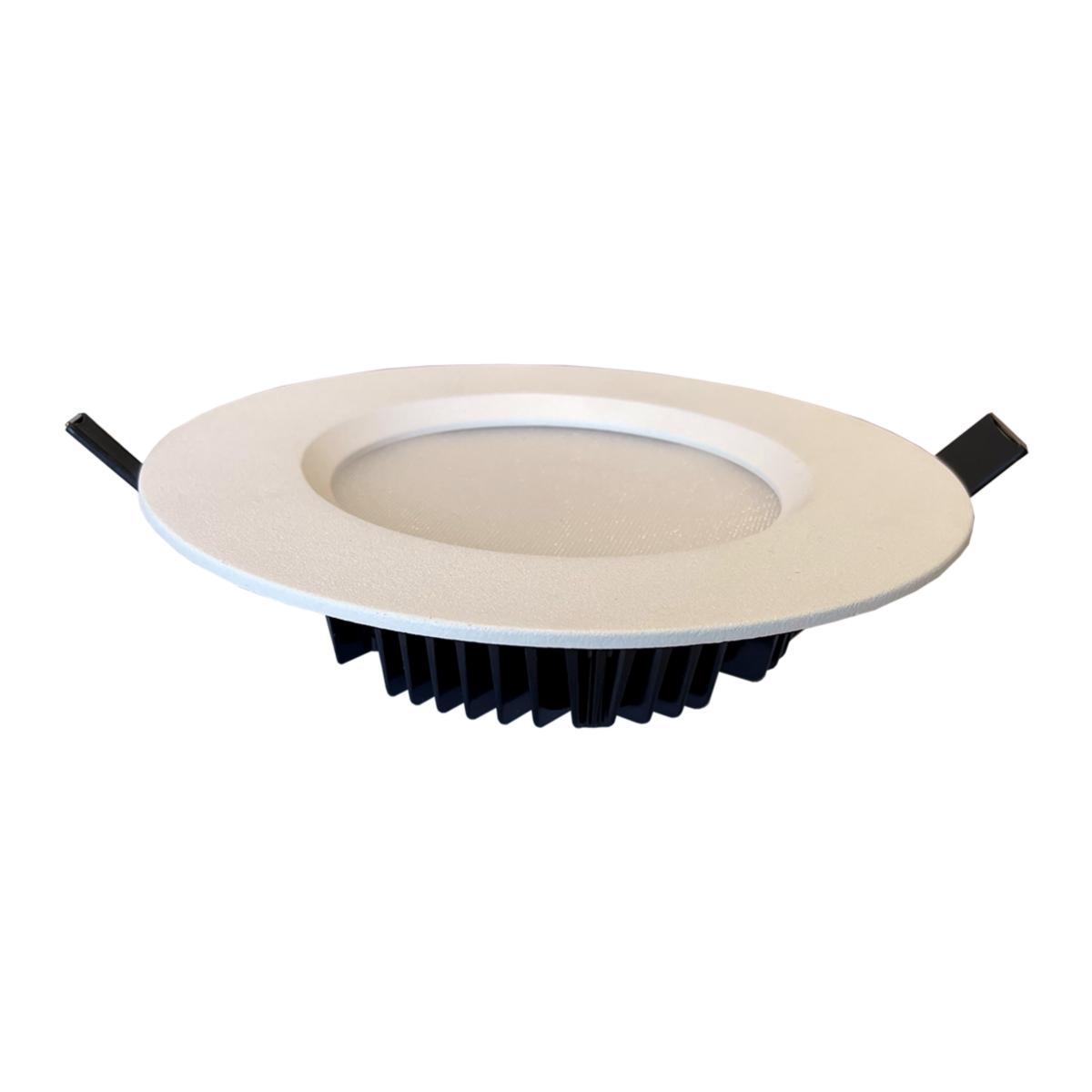

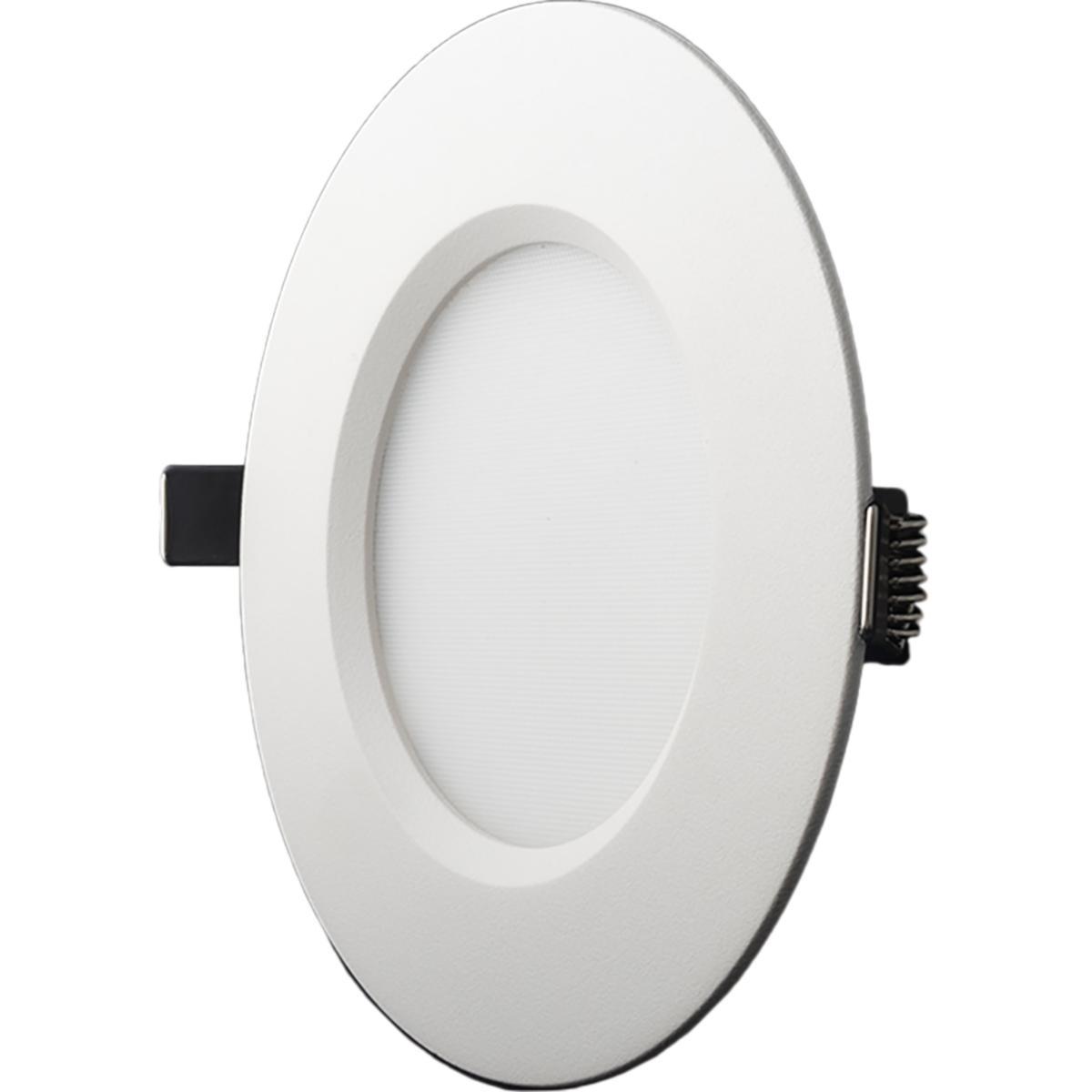

Downlight 15W for good general light in larger rooms, adjustable color temperature 3000/4000 / 5000K, 1650lm / 3000K incl. dimbart drivdon
- Article number: 7474769
- Suppl. article no: P-753
- Ean no: 7340123803489
- Material class QT4440
Technical data
- Packagin Size: 1 ST/24 ST
- Energy label: F
- Type: P-753
- Max. system power: 15 W
- Colour temperature: 3000-5000 K
- Housing colour: White
- Beam angle: > 80° - Extreme wide beam
- Outer diameter: 150 mm
- Built-in diameter: 105 mm
- Built-in width: 105 mm
- Built-in length: 105 mm
- Height/depth: 37 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Luminous intensity: 700 cd
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 150 mm
- Dimming phase cut-on (leading edge): Yes
- Degree of protection (IP): IP44
- Dimmable: Yes
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light outlet: Direct
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 80-89
- Suitable for clamp-mounting: No
- Suitable for pedestal/floor mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- Length: 150 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Rated lifetime L70/B50 at 25 °C: 40000 h
- Suitable for ceiling mounting: Yes
- Colour of light adjustable: Positions
- Constant light output (CLO): No
- Energy efficiency class: A++
- REACH Date: 2021-08-16
- LED nominal current at constant current: 500 mA
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
