Westal
Downlight WLD-PIR
DOWNLIGHT WLD-PIR 8W WLD PIR
Article number: Suppl. article no:
7474460
20-1-25
to see price and stock

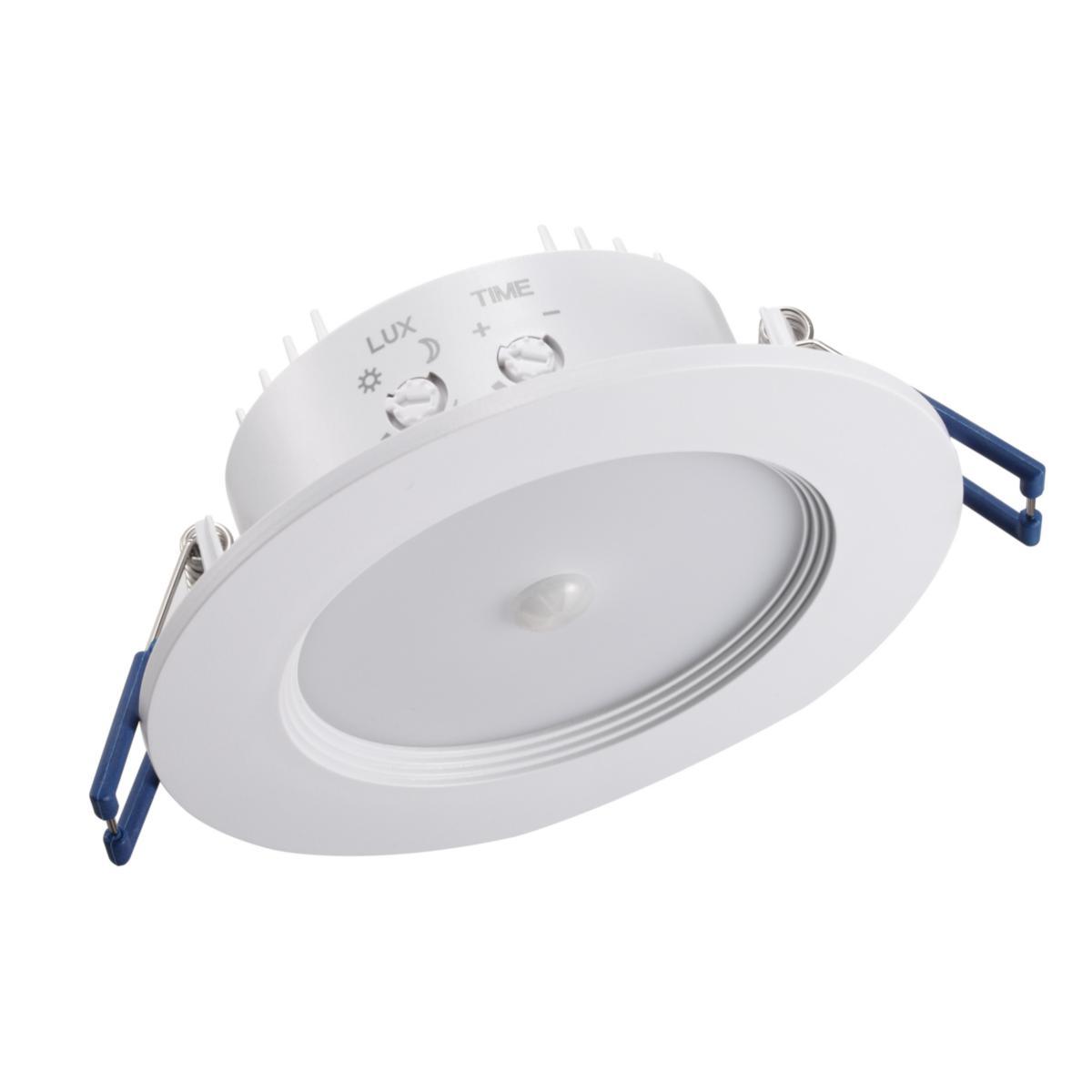

Thin recessed downlight in white lacquered aluminum. Equipped with LED controlled by PIR sensor. For drilling 83-95mm. Easily installed with spring clips and connected using a terminal block directly on the downlight, no external drive required. PIR sensor with adjustable holding time 10s - 5min and light sensor that is adjustable between 3 - 2000lux.
- Article number: 7474460
- Suppl. article no: 20-1-25
- Ean no: 7393047201251
- Material class QT4410
Technical data
- Max. system power: 8 W
- Rated luminous flux according to IEC 62722-2- 1: 690 lm
- Colour temperature: 2900-3100 K
- Housing colour: White
- Beam angle: > 80° - Extreme wide beam
- Outer diameter: 105 mm
- Built-in height: 45.5 mm
- Height/depth: 48.5 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- Type of control gear: Not required
- Housing material: Aluminium
- Number of poles: 3
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Material cover: Plastic matt/satinized
- Degree of protection (IP): IP54
- Lamp holder: Other
- Conductor cross section: 2.5 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: I
- Light outlet: Direct
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 80-89
- With light sensor: Yes
- With movement sensor: Yes
- Nominal voltage: 220-240 V
- Voltage type: AC/DC
- Surface protection: Powder coating
- Covering of the luminaire with thermally insulating material possible: Yes
- Connection type: Screwed terminal
- REACH Date: 2021-12-08
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
