Downlight Plano Basic, Hide-a-Lite
DL PLANO BASIC 170 WHITE VIT PLANO BASIC
Article number: Suppl. article no:
7474374
7474374
to see price and stock

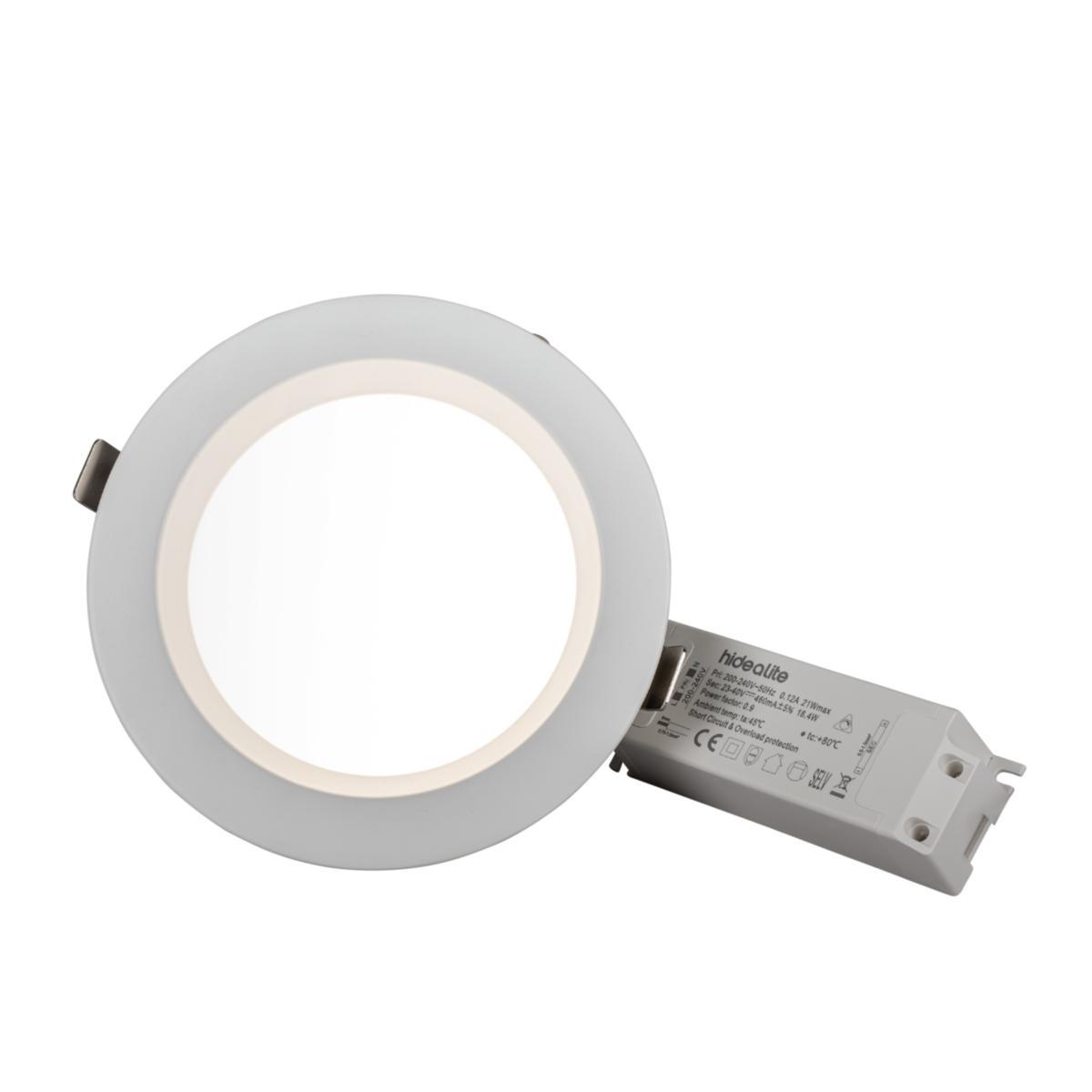

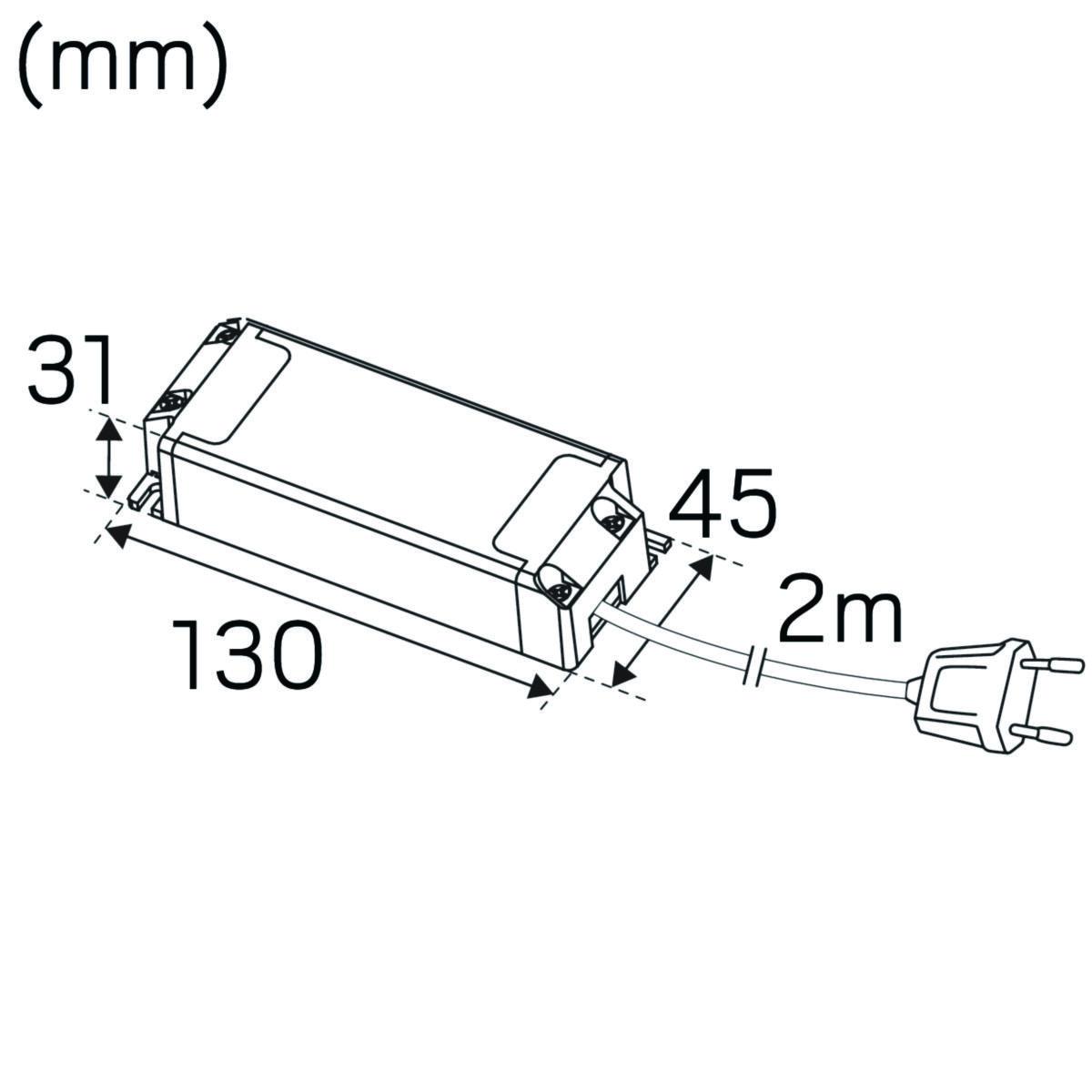

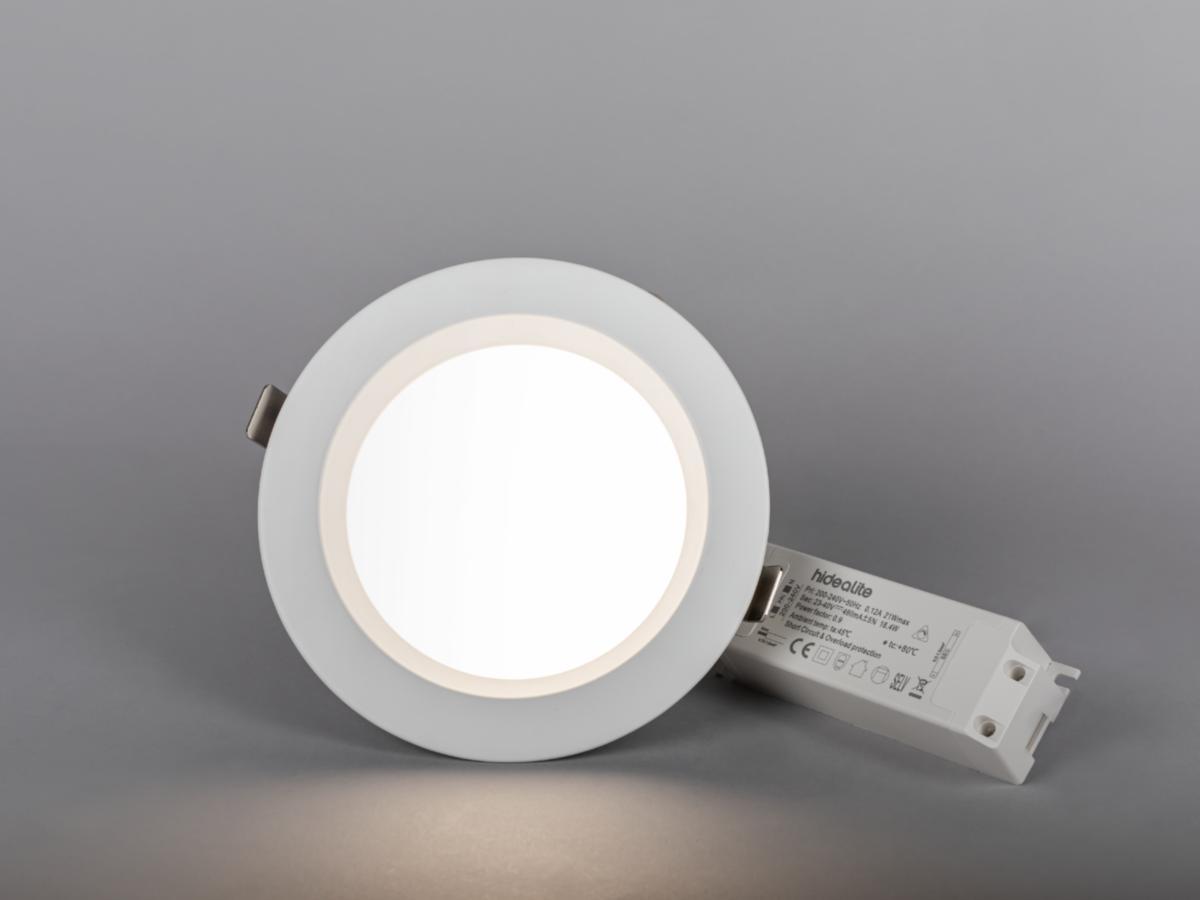

Low-build, energy-efficient downlight for general lighting in larger premises - perfect replacement for older luminaires with compact fluorescent lamps. Selectable color temperature via DIP switch. Available in three sizes, most hole sizes fit from 140 to 218mm. With high efficiency and wide spreading angle together with an opal aperture protection, a uniform general light is created in, for example, corridors, schools, dining rooms and waiting rooms. Comes complete with phase dimmable drive, 2m cord rack with ungrounded plug.
- Article number: 7474374
- Suppl. article no: 7474374
- Ean no: 7392971139005
- Material class QT432A
Technical data
- Packagin Size: 1 ST/30 ST
- Max. system power: 18 W
- Rated luminous flux according to IEC 62722-2- 1: 1850 lm
- Colour temperature: 3000-5700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: > 80° - Extreme wide beam
- Dimming DALI: No

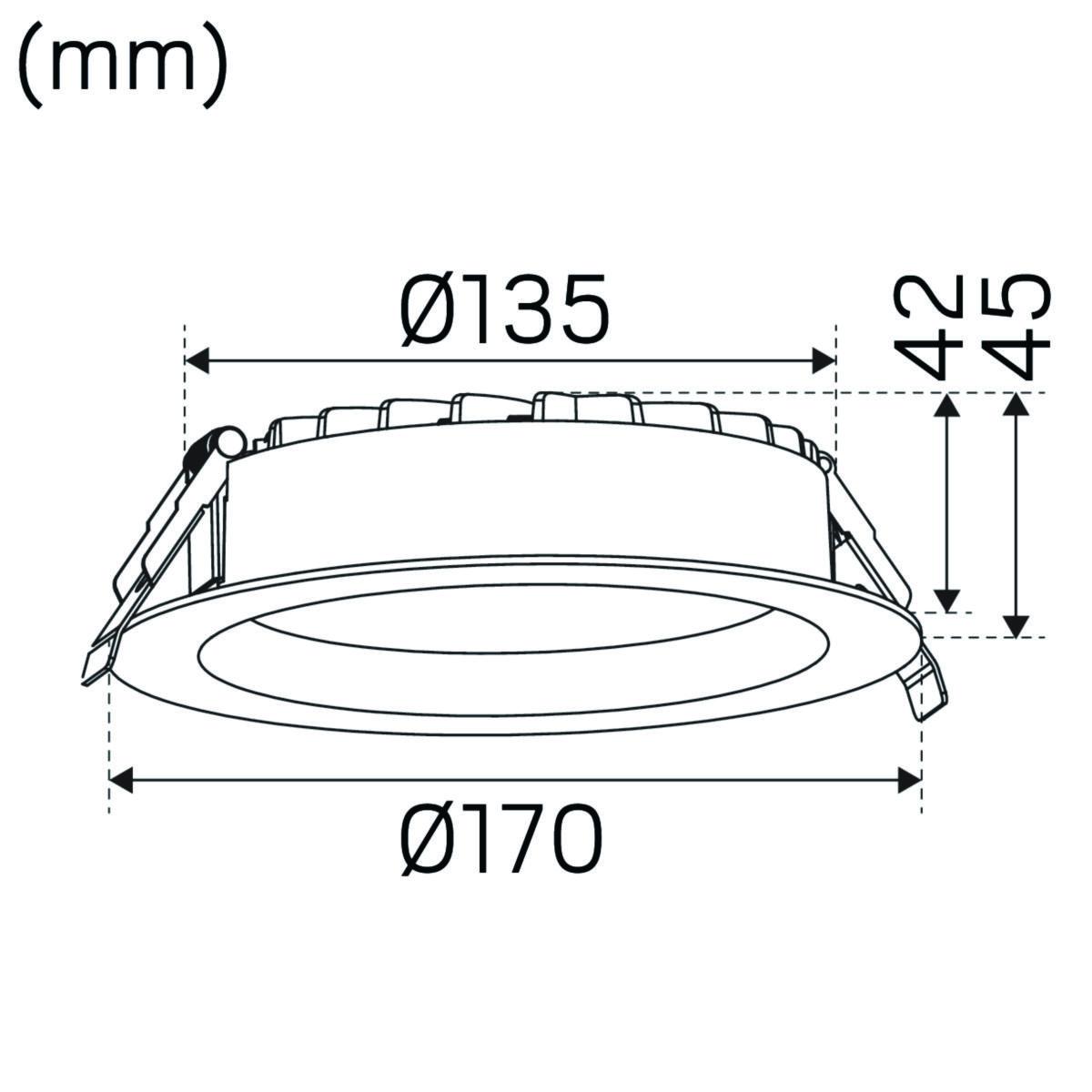

- Outer diameter: 170 mm
- Built-in diameter: 135 mm
- Built-in height: 42 mm
- Height/depth: 45 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: Multi-coloured
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 780 cd
- Reflector: White
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-45 °C
- Dimming phase cut-on (leading edge): Yes
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Material cover: Plastic, opal
- Degree of protection (IP): IP54
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 0.75 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Diffuser lens/optic/panel
- Light outlet: Direct
- Luminaire efficacy: 102.7 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Suitable for ceiling mounting: Yes
- Impact strength: IK06
- Dimming Touch and Dim: No
- Type of wiring: Ending
- Connectable conductor cross section: 0.75 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Connection type: Other
- Luminous flux: 1850 lm
- LED nominal current at constant current: 460 mA
- REACH Date: 2022-06-01
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
