Downlight Exclusive Midi
EXCLUSIVE M IN/OUT BL 4K EXCLUSIVE MIDI
Article number: Suppl. article no:
7473453
902632
to see price and stock

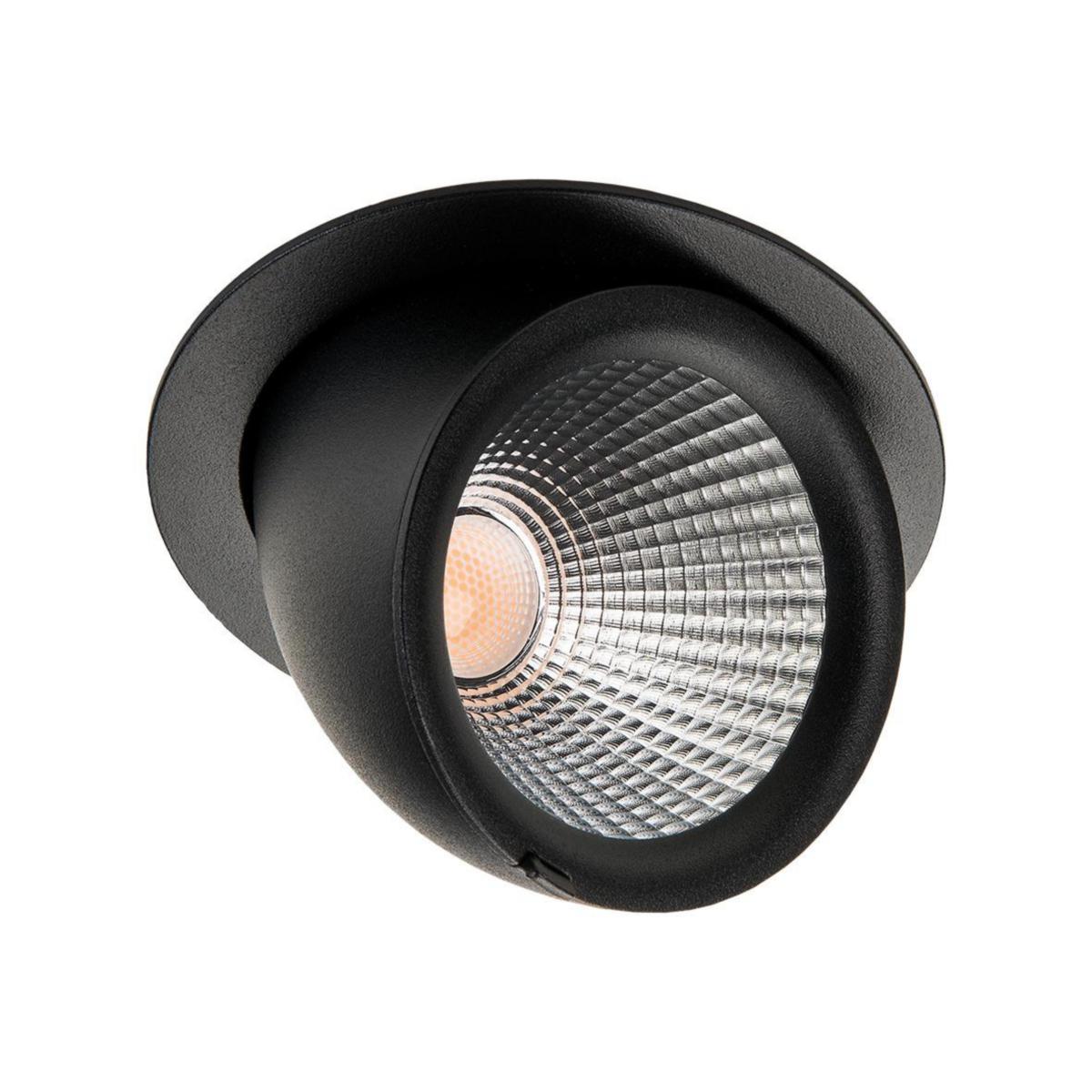

Exclusive Midi is a downlight for interior and exterior use with a 60 ° angle so you get the light where you need it. Suitable for sloping ceilings and as shop lighting. Made of die-cast aluminum with powder-coated top. Dimmable with phase section dimmer or DALI. Toolless mounting and connection option. Replaces 35 W metal halide.
- Article number: 7473453
- Suppl. article no: 902632
- Ean no: 7021989026327
- Material class QT442A
Technical data
- Packagin Size: 1 ST/8 ST
- Max. system power: 26 W
- Rated luminous flux according to IEC 62722-2- 1: 2770 lm
- Colour temperature: 4000 K
- Housing colour: Black
- Surface brushed: No
- Beam angle: 41-80° - Wide beam
- Outer diameter: 114 mm
- Built-in diameter: 102 mm
- Height/depth: 88 mm
- Lamp type: LED not exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Power factor: 0.97
- Photobiological safety according to EN 62471: RG1
- Filament test according to IEC 60695-2-11: None
- Material cover: Glass transparent
- Degree of protection (IP): IP44
- Lamp holder: None
- Conductor cross section: 1 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 107 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 26 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC/DC
- Suitable for ceiling mounting: Yes
- Degree of protection (NEMA): Other
- Impact strength: IK00
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM2
- Covering of the luminaire with thermally insulating material possible: No
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 90 %
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 10 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 41
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 41
- IFTTT support available: No
- Unified Glare Ratio (UGR): 18.3
- Exchangeable control gear: Yes
- Energy efficiency class: A+
- Connection type: Other
- Luminous flux: 2500-3000 lm
- LED nominal current at constant current: 500-700 mA
- REACH Date: 2022-08-26
- Built-in height/depth: 90 mm
- REACH contains candidate substances: Bly
- Energy efficiency class of the provided exchangeable built-in lamp: A+
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: Yes
- Emergency power supply integrated: No
