Hide-a-lite
Downlight Solo Mini, Hide-a-Lite

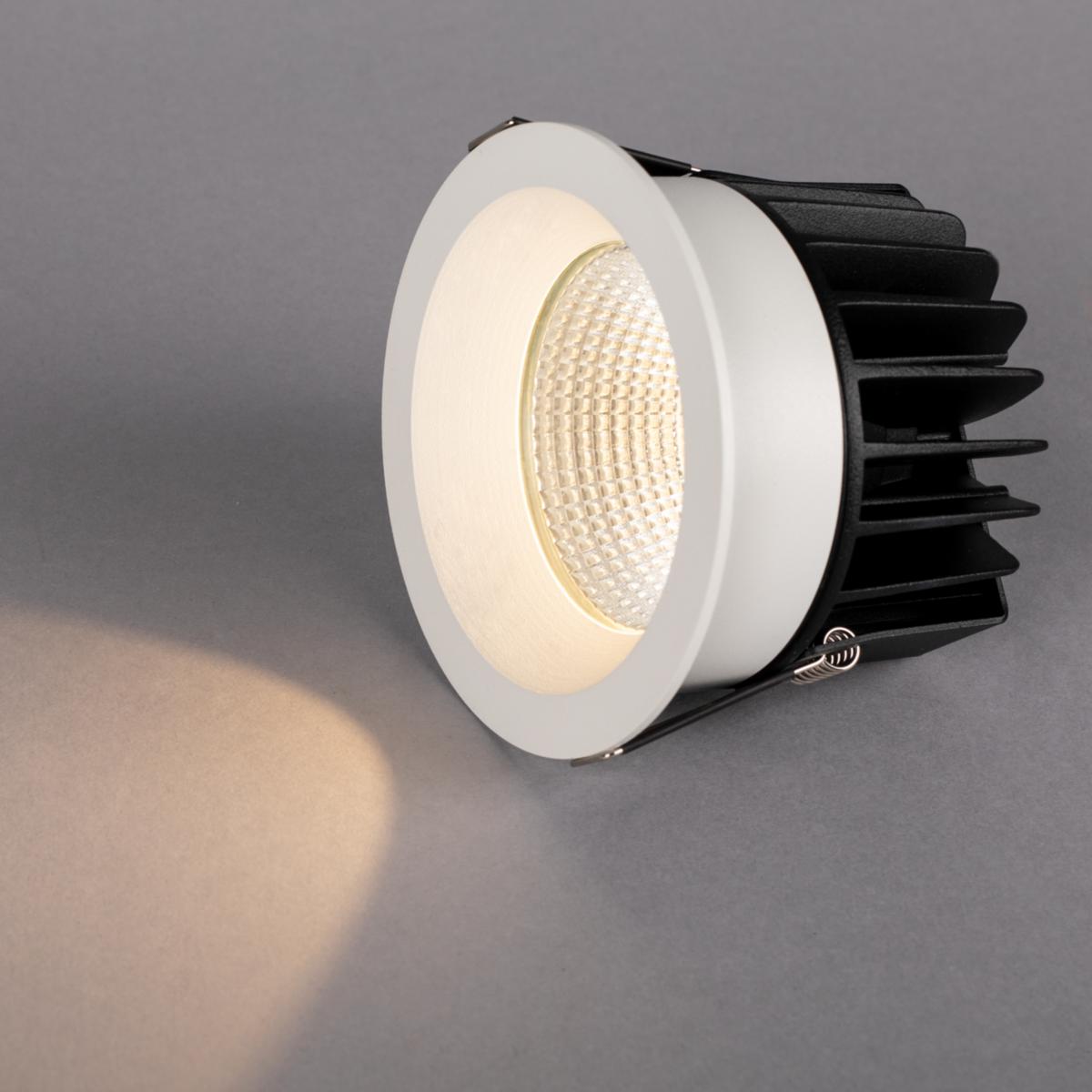

DL SOLO MINI G2 WHITE 3000K SOLO MINI
Article number: Suppl. article no:
7470562
7470562
to see price and stock
Solo Mini G2 is a downlight with a wide range of uses for indoor and outdoor use. IP54 version with clear cover glass. For both private and public environments where more light is required, e.g. rooms with higher ceilings or corridors, shops and outdoors in entrance ceilings. Reflector technology with a high light spot for a well-dazzled impression. Supplied complete with drive device IP20 for phase dimming or DALI, with quick terminals for forwarding and screw-free strain relief.
- Article number: 7470562
- Suppl. article no: 7470562
- Ean no: 7392971135069
- Material class QT432A
Technical data
- Packagin Size: 1 ST/20 ST/20 ST
- Max. system power: 15 W
- Rated luminous flux according to IEC 62722-2- 1: 1080 lm
- Colour temperature: 3000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 21-40° - Medium beam
- Dimming DALI: No
- Outer diameter: 120 mm
- Built-in diameter: 100 mm
- Height/depth: 90 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 1990 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
- Dimming phase cut-on (leading edge): Yes
- Material cover: Glass transparent
- Degree of protection (IP): IP54
- Dimmable: Yes
- Conductor cross section: 2.5 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 72 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 70000 h
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.75-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Connection type: Push-in clamp
- Luminous flux: 1080 lm
- LED nominal current at constant current: 350 mA
- REACH Date: 2022-06-01
- Built-in height/depth: 88 mm
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
