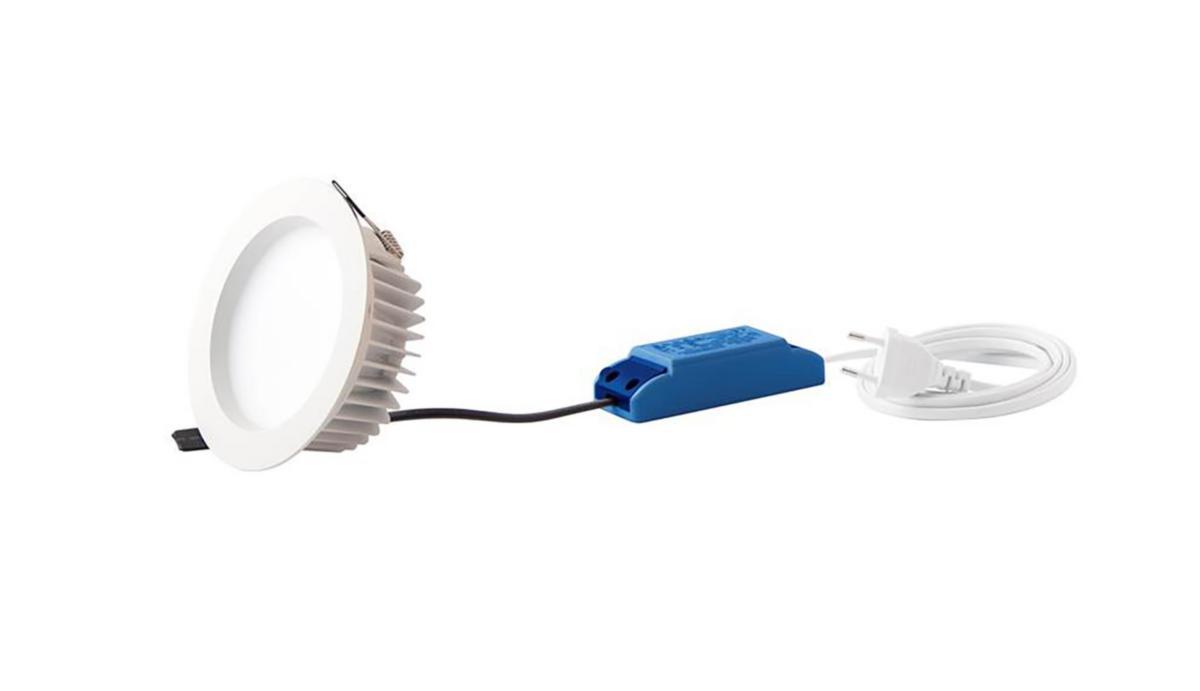

Downlight LED aLight SMD
DOWNL LED 18W 1450LM 3K ON/OFF
Article number: Suppl. article no:
7465167
DOWNLIGHT LED SMD 14
to see price and stock
Area of application:
General lighting in public areas, entries,
stores, office and similar areas.
Version:
Recessed LED fitting with actuator for false ceiling.
White lacquered frame in aluminium. Available in version
with or without DALI. Colour temperature 3000K.
Spreading angle 90 degrees.
Assembly:
Mounting on false ceiling. Hole 140 mm and
175 mm.
Connection:
Connected to mains power 230V and, if relevant,
Dali/impulse switch in provided driver.
Non-dimmable versions delivered with 2 m cable stand.
General lighting in public areas, entries,
stores, office and similar areas.
Version:
Recessed LED fitting with actuator for false ceiling.
White lacquered frame in aluminium. Available in version
with or without DALI. Colour temperature 3000K.
Spreading angle 90 degrees.
Assembly:
Mounting on false ceiling. Hole 140 mm and
175 mm.
Connection:
Connected to mains power 230V and, if relevant,
Dali/impulse switch in provided driver.
Non-dimmable versions delivered with 2 m cable stand.
- Article number: 7465167
- Suppl. article no: DOWNLIGHT LED SMD 14
- Ean no: 7340080791768
- Material class QT4300
- This is an alternative to item 7464972
Technical data
- Packagin Size: 1 ST/12 ST
- Energy label: F
- Type: aLight Downlight LED SMD on/off
- Max. system power: 18 W
- Rated luminous flux according to IEC 62722-2- 1: 1450 lm
- Colour temperature: 3000 K
- Housing colour: White
- Beam angle: > 80° - Extreme wide beam
- Dimming DALI: No
- Outer diameter: 160 mm
- Built-in diameter: 140 mm
- Height/depth: 57 mm
- Lamp type: LED not exchangeable
- With light source: Yes
- With control gear: Yes
- Dimming phase cut-off (trailing edge): Yes
- Degree of protection (IP): IP65
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 80-89
- Rated life time L80/B10 at 25 °C: 40000 h
- Colour consistency (McAdam ellipse): SDCM3
