Hide-a-lite

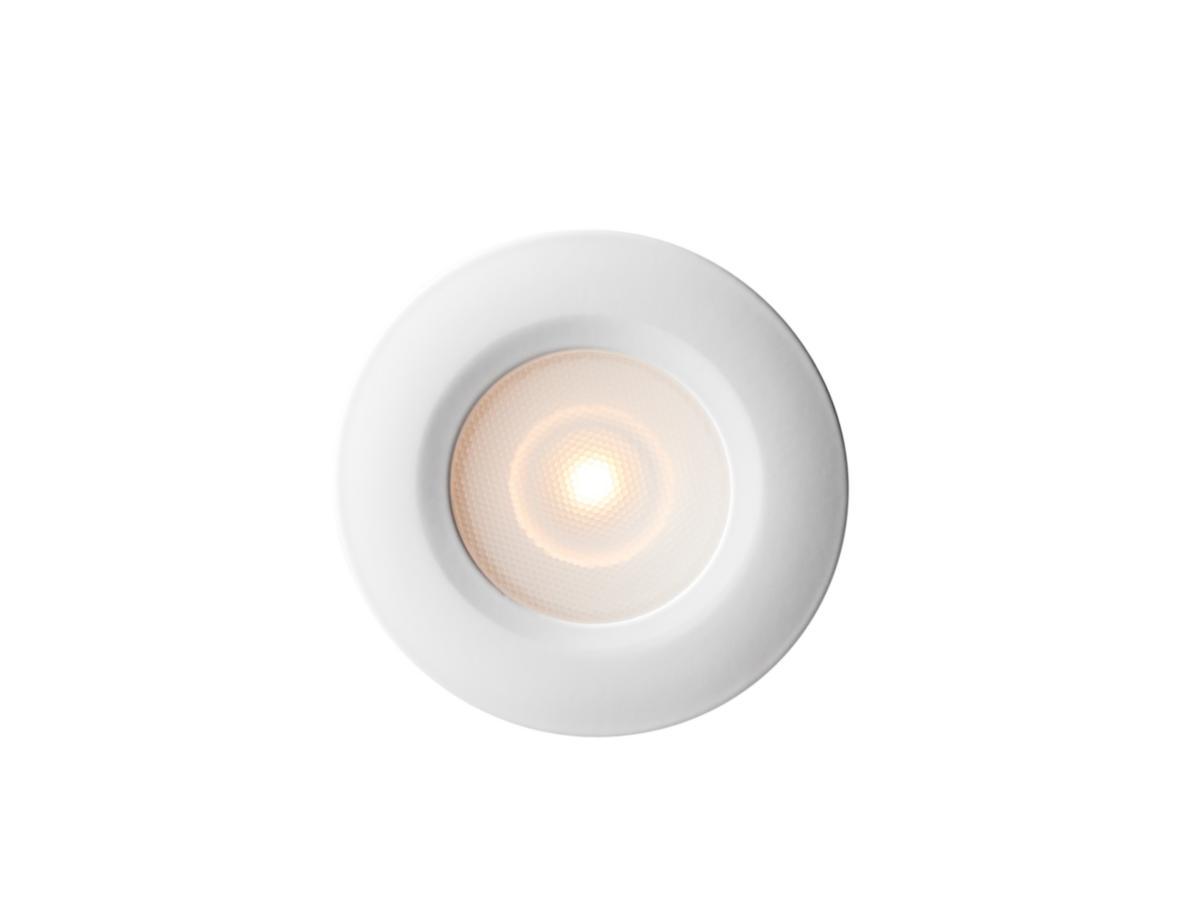

Downlight Thin G2
DL Thin G2 White 2700K
Article number: Suppl. article no:
7477000
7477000
to see price and stock
Thin downlight for thin board materials in 93% marine plastic - perfect for base cabinets and shelves. Thin G2 is the luminaire in a compact format with great possibilities. With its discreet design and IP44 finish, it fits perfectly into the base cabinet in the kitchen or under shelves in the bathroom. The wide beam of light creates an even fill light. Easy tool-less installation, replaceable LED. Integrated quick terminal for simplified and smart series connection, eliminates hassle with external joints, minimizes the risk of errors and facilitates troubleshooting. Distance ring for surface mounting is available as an accessory. Drives are ordered separately.
- Article number: 7477000
- Suppl. article no: 7477000
- Ean no: 7392971148861
- Material class QT4320
- This is an alternative to item 7463172
Technical data
- Packagin Size: 1 PCS/100 PCS/3600 PCS
- Max. system power: 2.3 W
- Rated luminous flux according to IEC 62722-2-1: 225 lm
- Colour temperature: 2700 K
- Housing colour: White
- Beam angle: Extreme wide beam >80°
- Outer diameter: 70 mm
- Built-in diameter: 56-59 mm
- Height/depth: 14 mm
- Lamp type: LED exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: No
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 100 cd
- Housing material: Aluminium
- Number of poles: 3
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Degree of protection (IP): IP44
- Conductor cross section: 0.75 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light distributor: Diffuser lens/optic/panel
- Light outlet: Direct
- Luminaire efficacy: 107 lm/W
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for wall mounting: No
- Suitable for surface mounting: Yes
- Voltage type: DC
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Suitable for ceiling mounting: Yes
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.2-0.75 mm²
- Surface protection: Powder coating
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 86 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 93 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Luminous flux adjustable: Continuously variable
- Energy efficiency class of the light source according to EU regulation 2019/2015: E
- Reflector colour: White
- Nominal current: 700 mA
- Built-in height/depth: 12 mm
- Connection type: Push-in clamp
- Luminous flux: 225 lm
- REACH Date: 2024-04-09
- REACH Information obligation: No
