Minidownlight Q19,Q20
Downl Q-20 3000K Quick 10pack
Article number: Suppl. article no:
7475341
Q-20MW-10
to see price and stock

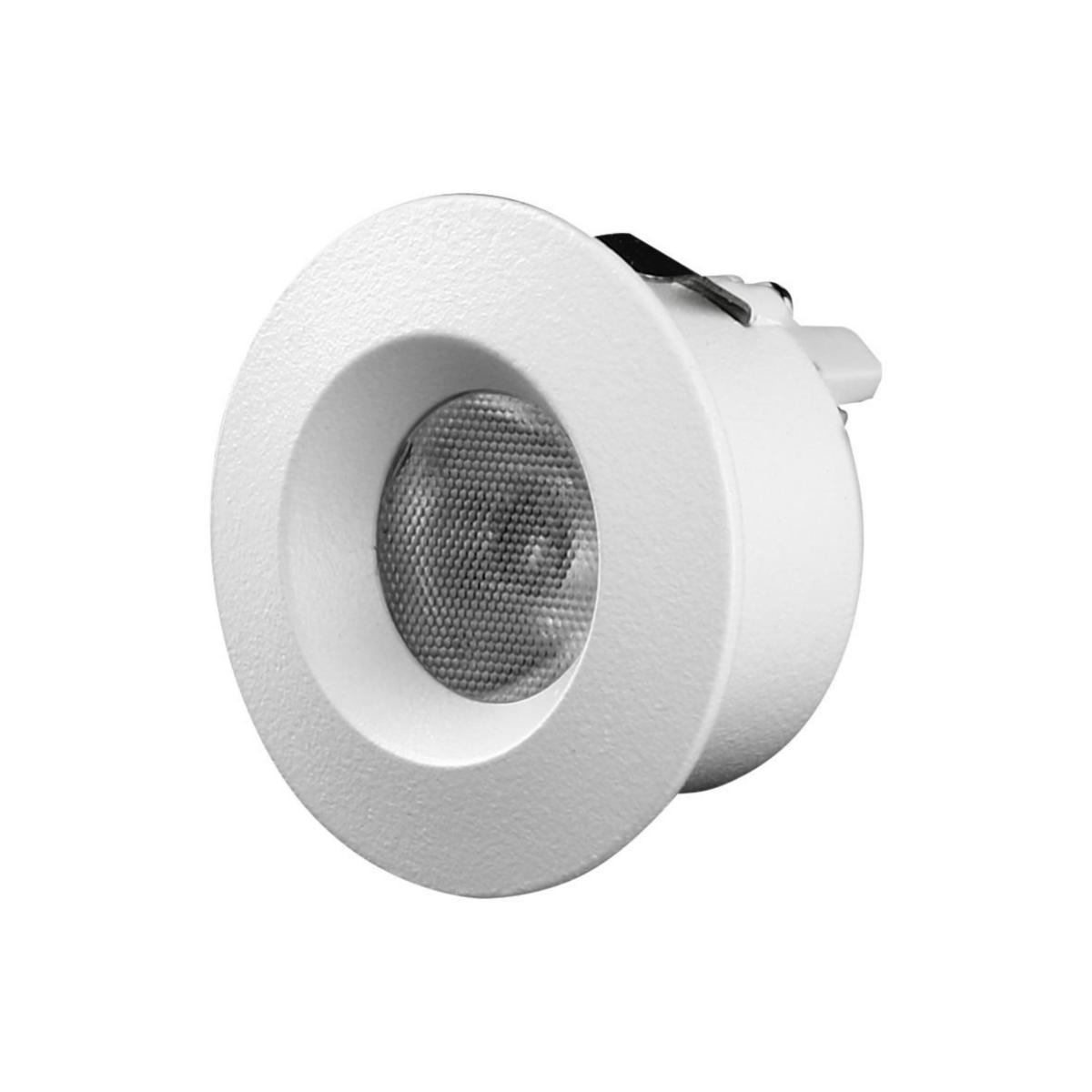

Small 1.2W mini downlight with recessed lens which provides optimal glare reduction, this downlight can be advantageously installed in window recesses and cupboards. An excellent luminaire for mounting in fixed windows from floor to ceiling or panoramic windows. Spreading angle 20°. Quick connection.
- Article number: 7475341
- Suppl. article no: Q-20MW-10
- Ean no: 7340132803791
- Material class QT4440
Technical data
- Packagin Size: 1 FRP/10 FRP/10 FRP
- Energy label: E
- Type: Q-20MW-10
- Colour temperature: 3000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: Narrow beam 11 - 20°
- Outer diameter: 30 mm
- Built-in diameter: 25 mm
- Height/depth: 21 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: No
- Luminous intensity: 575 cd
- Housing material: Aluminium
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 30 mm
- Dimming phase cut-on (leading edge): Yes
- Degree of protection (IP): IP40
- Dimmable: Yes
- Lamp holder: None
- Light distribution: Symmetric
- Light distributor: Other
- Light outlet: Direct
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 80-89
- Suitable for clamp-mounting: No
- Suitable for lamp power: 1.2 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- Length: 30 mm
- With light sensor: No
- With movement sensor: No
- Rated lifetime L70/B50 at 25 °C: 40000 h
- Suitable for ceiling mounting: Yes
- Surface protection: Powder coating
- Covering of the luminaire with thermally insulating material possible: Yes
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Apple HomeKit: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- IFTTT support available: No
- Emergency power supply integrated: No
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Nominal current: 350 mA
- Connection type: Push-in clamp
- Luminous flux: 110 lm
- REACH Date: 2021-10-20
- REACH Information obligation: No
