Designlight
Downlight Q-serien, Designlight

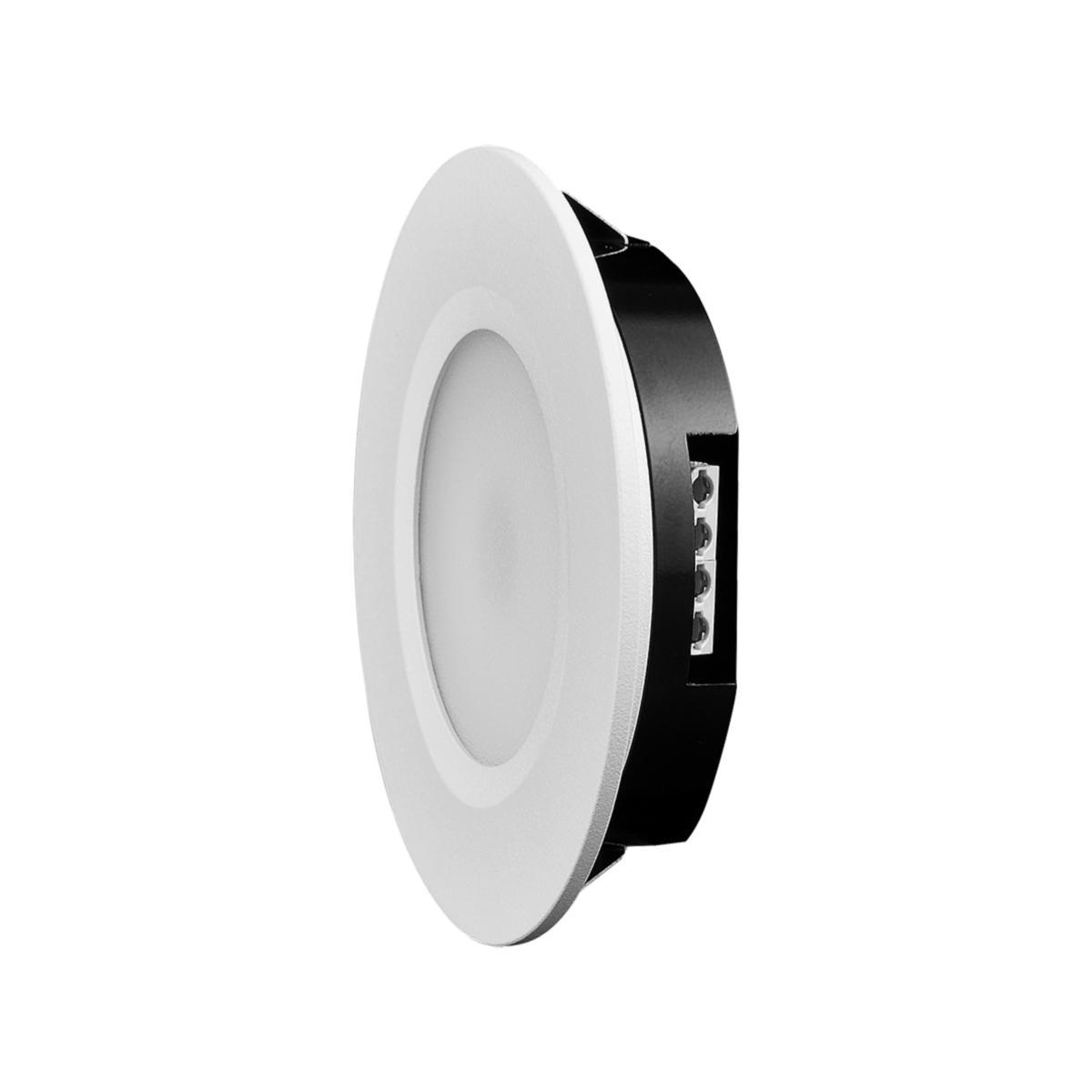

DOWNL Q-35MW 3.5W 2700K Q-35MW
Article number: Suppl. article no:
7474751
Q-35MW
to see price and stock
Stylish, powerful bench lighting equipped with high-quality LED diode. A downlight of 3.5W with Dim2Warm, which means dimmable in both color temperature and brightness.
- Article number: 7474751
- Suppl. article no: Q-35MW
- Material class QT4440
Technical data
- Packagin Size: 1 ST/100 ST
- Type: Q-35MW
- Max. system power: 3.5 W
- Colour temperature: 2700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: Extreme wide beam >80°
- Outer diameter: 70 mm
- Built-in diameter: 55 mm
- Height/depth: 15.3 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: No
- Type of control gear: LED operating device current-controlled
- Housing material: Aluminium
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 70 mm
- Built-in length: 55 mm
- Dimming phase cut-on (leading edge): Yes
- Built-in width: 55 mm
- Degree of protection (IP): IP20
- Dimmable: Yes
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light distributor: Other
- Light outlet: Direct
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 80-89
- Suitable for clamp-mounting: No
- Suitable for lamp power: 3.5 W
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- Length: 70 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 40000 h
- Suitable for ceiling mounting: Yes
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Beam angle adjustable: No
- Colour of light adjustable: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Emergency power supply integrated: No
- Exchangeable control gear: Yes
- Energy efficiency class: A++
- Connection type: Other
- REACH Date: 2021-08-16
- LED nominal current at constant current: 350 mA
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
