Designlight
Minidownlight, Designlight

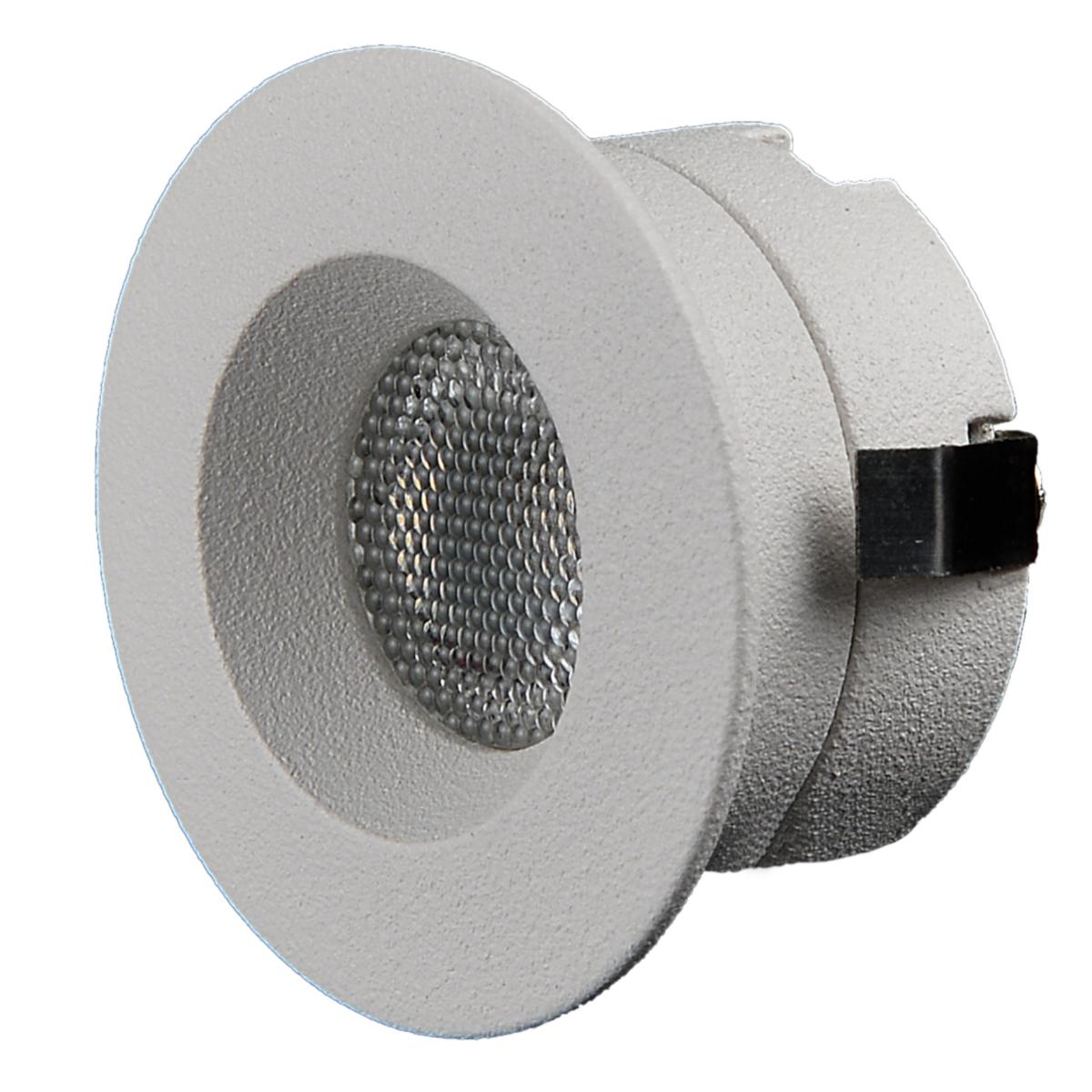

MINIDOWNL Q-20MW20 1.2W 3000K Q-20MW20
Article number: Suppl. article no:
7474721
Q-20MW20
to see price and stock
Small 1.2W mini downlight with recessed lens which provides optimal glare reduction, this downlight can be advantageously installed in window recesses and cupboards. An excellent luminaire for mounting in fixed windows from floor to ceiling or panoramic windows.
- Article number: 7474721
- Suppl. article no: Q-20MW20
- Material class QT4440
Technical data
- Packagin Size: 1 ST/100 ST/100 ST
- Type: Q-20MW20
- Max. system power: 1.2 W
- Colour temperature: 3000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: Medium beam 21-40°
- Outer diameter: 30 mm
- Height/depth: 18.1 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: No
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 406 cd
- Housing material: Aluminium
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 30 mm
- Built-in length: 25 mm
- Dimming with push-button: No
- Dimming mains voltage modulation: Yes
- Dimming RF: No
- Dimming Zigbee: No
- Dimming programmable: No
- Dimming phase cut-on (leading edge): Yes
- Built-in width: 25 mm
- Degree of protection (IP): IP40
- Dimmable: Yes
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light outlet: Direct
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 80-89
- Suitable for clamp-mounting: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- Length: 30 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Rated lifetime L70/B50 at 25 °C: 40000 h
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Surface protection: Powder coating
- Covering of the luminaire with thermally insulating material possible: No
- Beam angle adjustable: No
- Colour of light adjustable: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Emergency power supply integrated: No
- Energy efficiency class: A++
- Luminous flux: 98 lm
- REACH Date: 2021-08-16
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
