Downlight Bastu Heatspot G2, Hide-a-Lite
DL SAUNA HEATSPOT G2 KIT 927 BASTU HEATSPOT
Article number: Suppl. article no:
7474366
7474366
to see price and stock

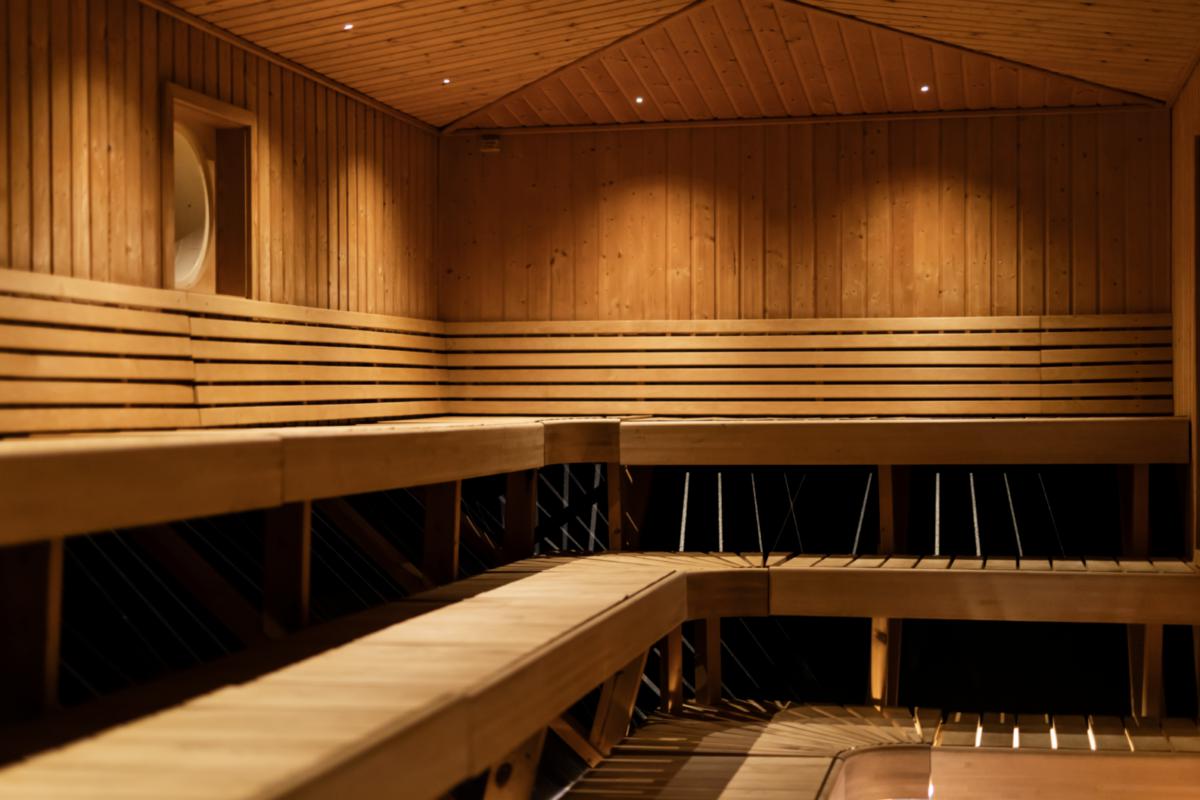

Complete kit that makes it easy to assemble discreet and atmospheric small bright spots for decorative lighting in the sauna. Brushed steel luminaires with adapted luminous flux with good dimming. The luminaires have two cables with quick couplings for smooth series connection. The kit consists of 6 luminaires with phase dimmable drive and extension cable and connection cables. Also available as single luminaire. The actuator is capable of operating and dimming 5-12 luminaires. Front rings in black and brass are available as accessories.
- Article number: 7474366
- Suppl. article no: 7474366
- Ean no: 7392971138800
- Material class QT4320
Technical data
- Packagin Size: 1 FRP/20 FRP/20 FRP
- Max. system power: 3.8 W
- Rated luminous flux according to IEC 62722-2-1: 20 lm
- Colour temperature: 2700 K
- Housing colour: Stainless steel
- Surface brushed: Yes
- Beam angle: Wide beam 41-80°
- Dimming DALI: No
- Outer diameter: 25 mm
- Built-in diameter: 20 mm
- Height/depth: 30 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 20 cd
- Reflector: Matt
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-120 °C
- Photobiological safety according to EN 62471: Other
- Dimming phase cut-on (leading edge): Yes
- Filament test according to IEC 60695-2-11: None
- Material cover: Glass opal
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 1 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Diffuser lens/optic/panel
- Light outlet: Direct
- Luminaire efficacy: 50 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Type of wiring: Loop-through wiring included
- Connectable conductor cross section: 1 mm²
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Built-in height/depth: 27 mm
- Connection type: Push-in clamp
- Luminous flux: 20 lm
- LED nominal current at constant current: 150 mA
- REACH Date: 2022-06-01
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
