Downlight Optic DEEP XS, Hide and Lite
DOWNL OPTIC DEEP XS WHITE TUNE 45° SPRID OPTIC DEEP XS
Article number: Suppl. article no:
7471888
7471888
to see price and stock

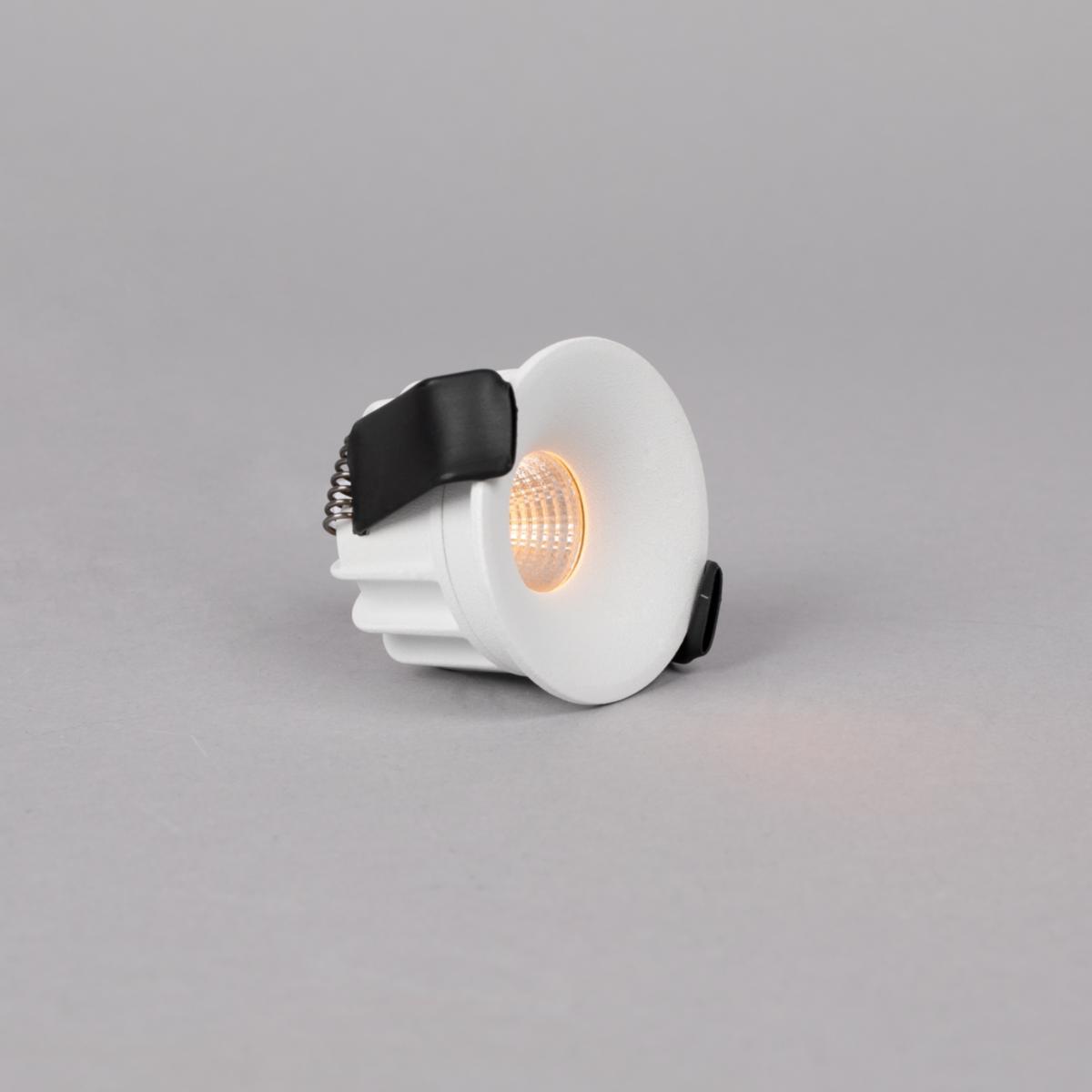

Exclusive accent luminaire in small format with well-developed reflector technology. Recessed light source that provides a discreet and well-dimmed light with very good color reproduction, RA95. Small and low-rise - perfect for sparse panel 28mm with 13mm plaster. Beautiful as decorative lighting alone or in a group. Black front ring is available as an accessory. Complete with small phase-dimmable drive unit, quick terminals for forwarding and screw-free strain relief for easy installation. Dimmable with the most common dimmers on the market.
- Article number: 7471888
- Suppl. article no: 7471888
- Ean no: 7392971135847
- Material class QT432A
Technical data
- Packagin Size: 1 ST/30 ST/30 ST
- Max. system power: 4 W
- Rated luminous flux according to IEC 62722-2-1: 205 lm
- Colour temperature: 2000-2700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: Wide beam 41-80°
- Dimming DALI: No
- Outer diameter: 50 mm
- Built-in diameter: 44 mm
- Height/depth: 38 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 310 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Dimming phase cut-on (leading edge): Yes
- Material cover: None
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 0.75 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 51 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 4 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-1.5 mm²
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Built-in height/depth: 36 mm
- Luminous flux: 205 lm
- LED nominal current at constant current: 180 mA
- REACH Date: 2022-06-01
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
