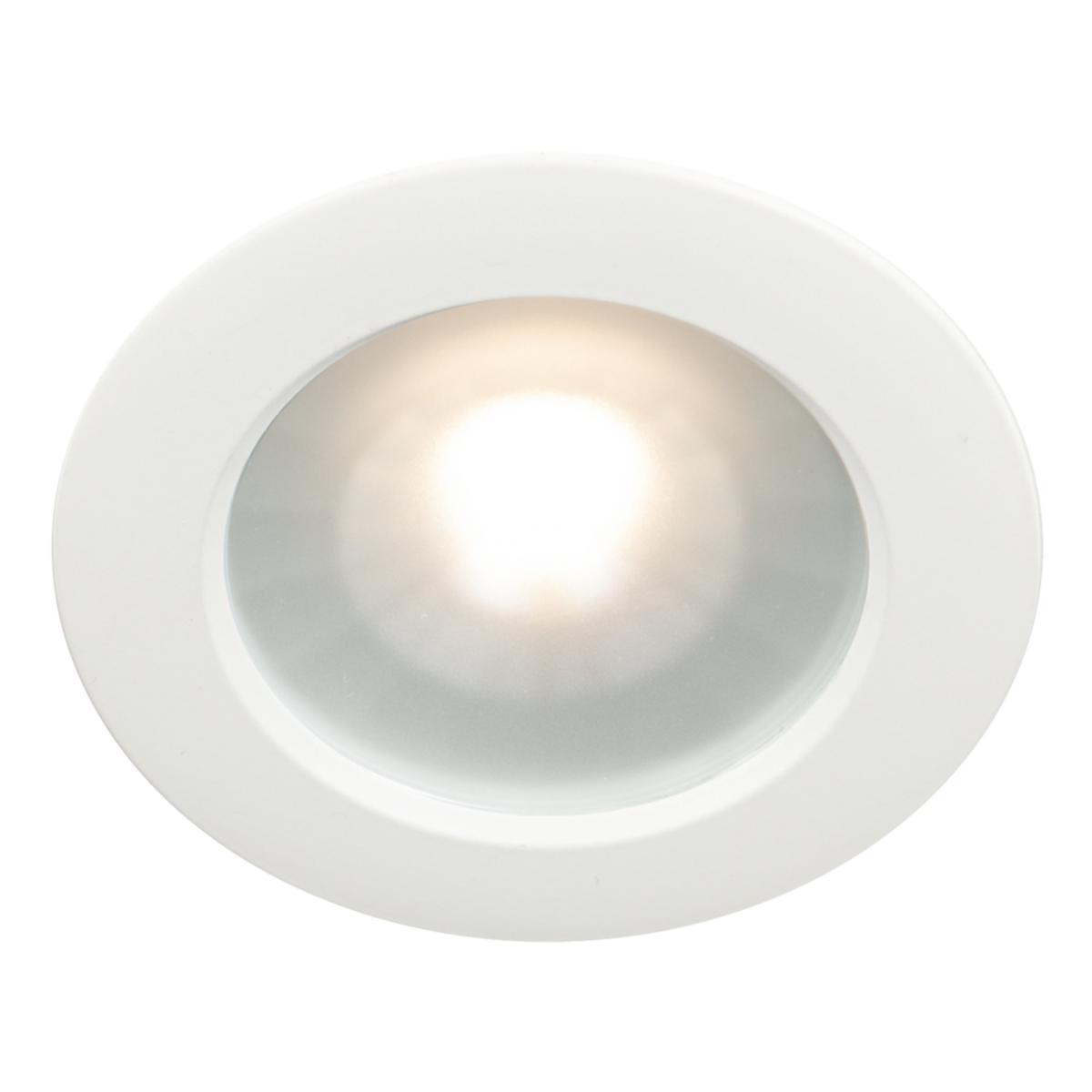

Downlight LED 1202 Smart, Hide-a-lite
DOWNL 1202 SMART WHITE 2700K
Article number: Suppl. article no:
7470466
7470466
to see price and stock
Low-profile minidownlight IP44 with integrated quick-release terminal for simplified and smart series connection, eliminates hassle with external joints and minimizes sources of error. Energy efficient 3.5W / 350mA replaces 25-30W halogen luminaires with very good color reproduction, Ra90. Great for folding into cabinets, shelves and niches etc. Choose between white or residential steel in 2700K and 3000K. Spacer ring and triangular spacer frame are available as accessories for surface mounting.
- Article number: 7470466
- Suppl. article no: 7470466
- Ean no: 7392971130712
- Material class QT4320
Technical data
- Packagin Size: 1 ST/100 ST/100 ST
- Max. system power: 3.5 W
- Rated luminous flux according to IEC 62722-2-1: 290 lm
- Colour temperature: 2700 K
- Housing colour: White
- Luminous flux: 290 lm
- Surface brushed: No
- Beam angle: Wide beam 41-80°
- Dimming DALI: No
- Outer diameter: 70 mm
- Built-in diameter: 58 mm
- Height/depth: 19 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: No
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 210 cd
- Reflector: Matt
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming phase cut-off (trailing edge): No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -15-40 °C
- Photobiological safety according to EN 62471: Other
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: None
- Material cover: None
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light distributor: None
- Light outlet: Direct
- Luminaire efficacy: 91 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: Yes
- Suitable for surface mounting: Yes
- With light sensor: No
- With movement sensor: No
- Voltage type: DC
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5 mm²
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Built-in height/depth: 17 mm
- Connection type: Push-in clamp
- Dimming GPRS: No
- Dimming depending on control gear: Yes
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- LED nominal current at constant current: 350 mA
- REACH Date: 2022-06-01
- REACH Information obligation: No
