Hide-a-lite

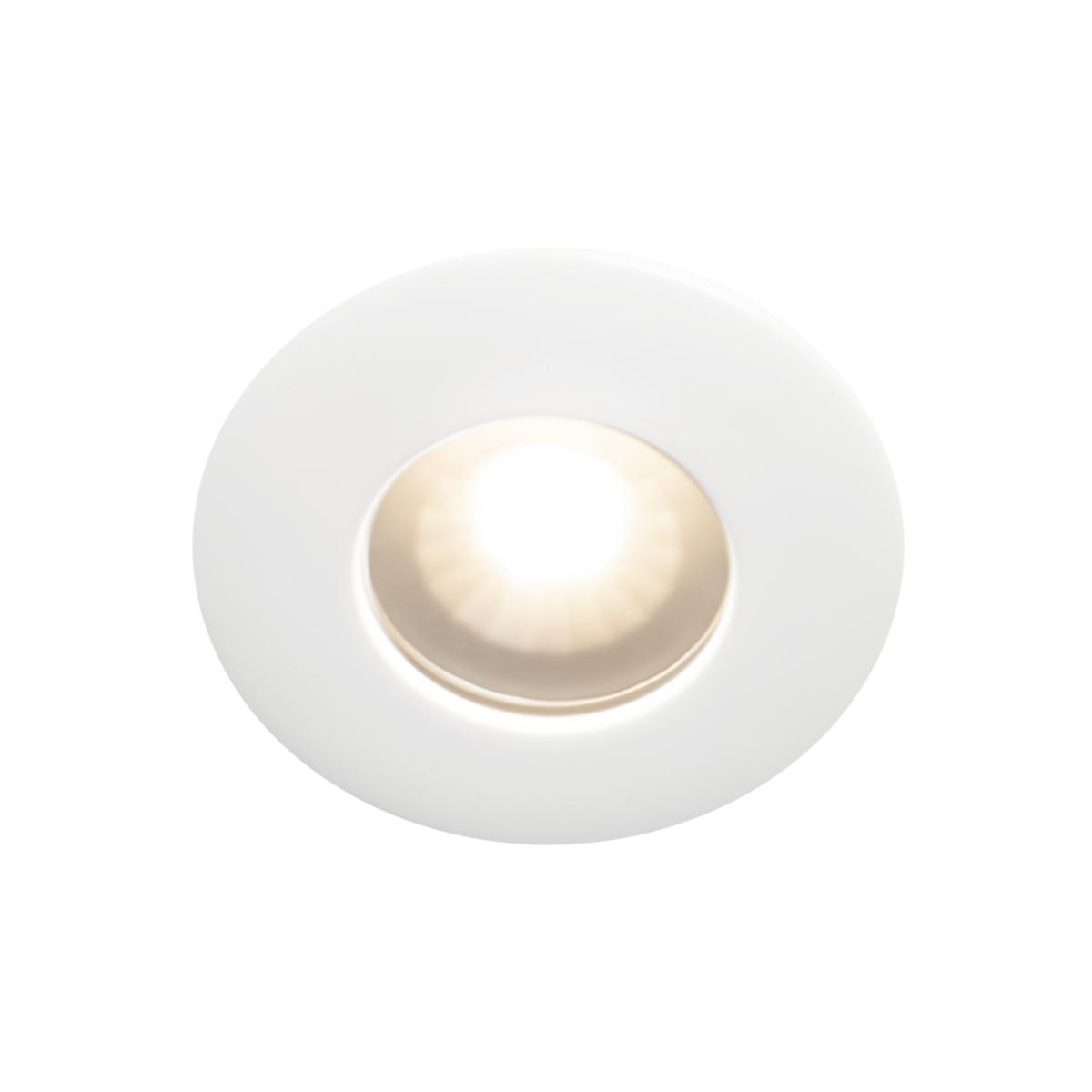

Downlight LED 1208, Hide-a-lite
DOWNL 1208 12V WHITE 2700K DOWNLIGHT
Article number: Suppl. article no:
7470007
7470007
to see price and stock
Dimmable LED downlight IP44 for connection to 12V AC / DC. Perfect ROT luminaire for mounting in device box with keyhole mounting or standard hole making 57-60mm with tension springs. Quick terminals integrated in the back piece make it easy to use existing wiring, transformer and dimmer when replacing older halogen luminaires. Available in white 2700K and 3000K. Connected to 12V AC / DC. Can be dimmed to low levels with standard dimmers, see dimmer list www.hidealite.se
- Article number: 7470007
- Suppl. article no: 7470007
- Ean no: 7392971131795
- Material class QT432A
Technical data
- Packagin Size: 1 ST/100 ST/100 ST
- Max. system power: 4.7 W
- Rated luminous flux according to IEC 62722-2-1: 350 lm
- Colour temperature: 2700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: Wide beam 41-80°
- Dimming DALI: No
- Outer diameter: 82 mm
- Built-in diameter: 58 mm
- Height/depth: 22 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: No
- Type of control gear: Electronic transformer
- Luminous intensity: 210 cd
- Reflector: Matt
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Dimming phase cut-off (trailing edge): No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -15-40 °C
- Photobiological safety according to EN 62471: Other
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: None
- Material cover: None
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light distributor: None
- Light outlet: Direct
- Luminaire efficacy: 65 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 12 V
- Voltage type: AC/DC
- Rated lifetime L70/B50 at 25 °C: 75000 h
- Suitable for ceiling mounting: Yes
- Impact strength: Other
- Dimming Touch and Dim: No
- Type of wiring: Ending
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Built-in height/depth: 18 mm
- Connection type: Push-in clamp
- Luminous flux: 350 lm
- REACH Date: 2022-06-01
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: Yes
