Downlight Q-33, Designlight
MINIDOWNL Q-33B 1.2W 2700K Q-33B
Article number: Suppl. article no:
7468829
Q-33B
to see price and stock

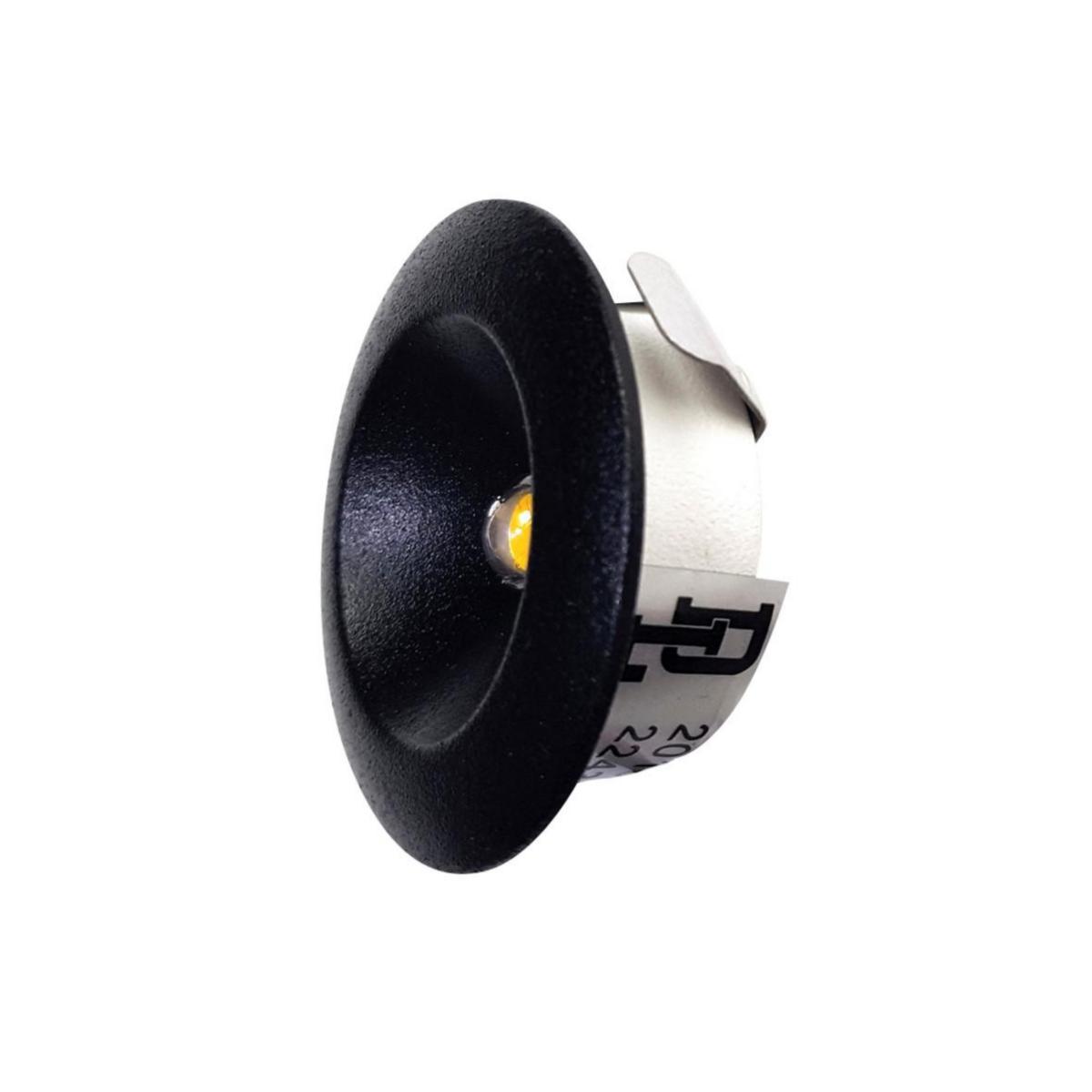

Smaller downlight of 1.2W and a diameter of 32.5mm, low energy consumption and long life. This downlight provides a nice warm white accent light with 105 degrees spread and light flux of 65 lumens, with its low installation of 13mm, the downlight can be used for recessed mounting in shelves, cabinets, window sills and much more. The luminaire is delivered with a 2 meter cable. Use actuators from Designlight's range. This downlight can also be mounted surface-mounted with a spacer ring that is ordered separately.
- Article number: 7468829
- Suppl. article no: Q-33B
- Ean no: 7340132801940
- Material class QT4440
Technical data
- Packagin Size: 1 ST/100 ST
- Type: Q-33B
- Max. system power: 1.2 W
- Colour temperature: 2700 K
- Housing colour: Black
- Surface brushed: No
- Beam angle: Extreme wide beam >80°
- Dimming DALI: No
- Outer diameter: 32.5 mm
- Height/depth: 15 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: No
- Luminous intensity: 28 cd
- Housing material: Aluminium
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: Yes
- Dimming mains voltage modulation: Yes
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): Yes
- Material cover: None
- Degree of protection (IP): IP21
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light outlet: Direct
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 80-89
- Suitable for clamp-mounting: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for surface mounting: Yes
- With light sensor: No
- With movement sensor: No
- Voltage type: DC
- Rated lifetime L70/B50 at 25 °C: 40000 h
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Emergency power supply integrated: No
- Built-in height/depth: 13 mm
- Luminous flux: 71 lm
- REACH Date: 2021-08-16
- LED nominal current at constant current: 350 mA
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
- Dimming GPRS: No
