SG Armaturen
Downlight LED Nano, SG-Armaturen
NANO MATT-WHITE 2700K 15D
Article number: Suppl. article no:
7468198
907001
to see price and stock

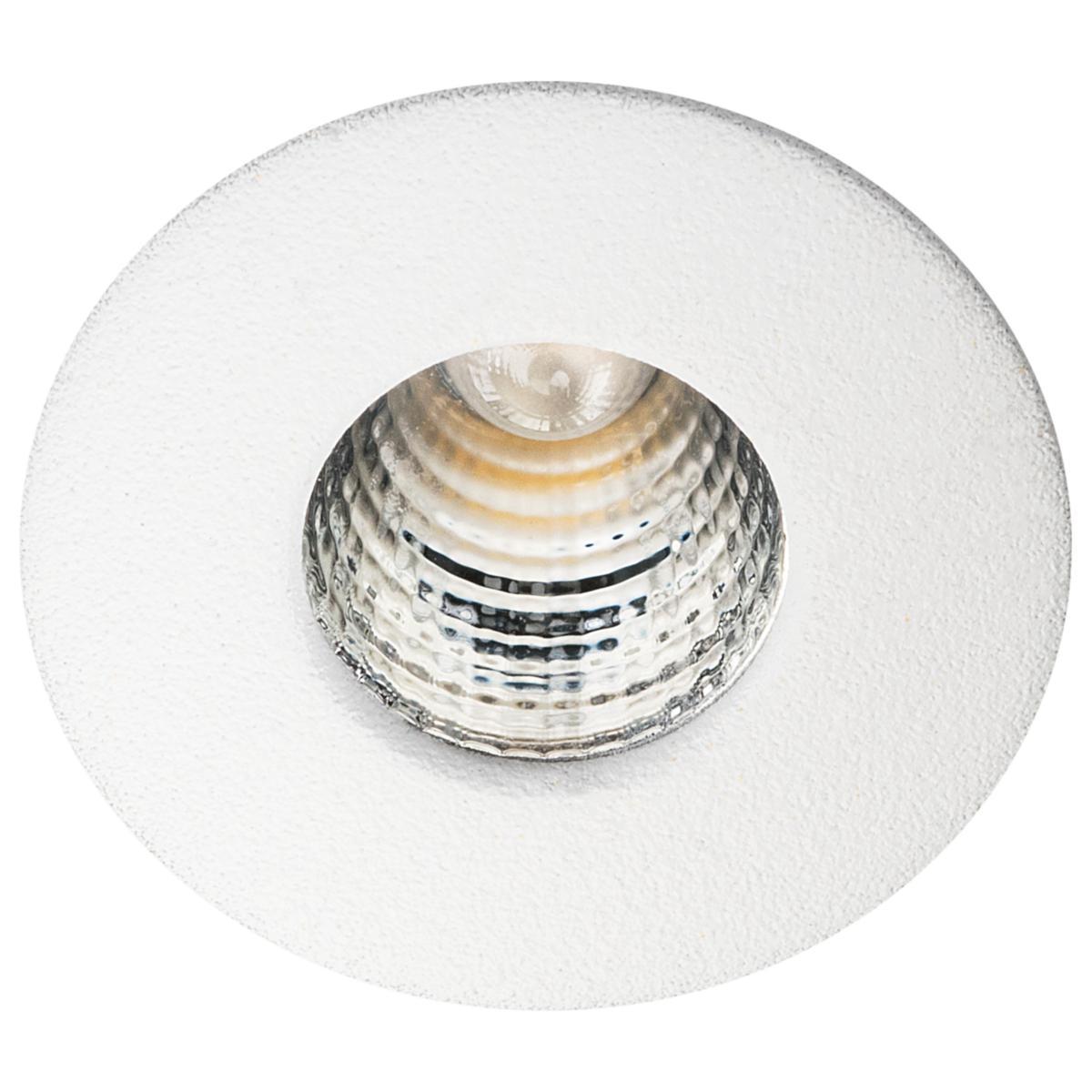

Fixed mini downlight in powder-coated aluminum for effect lighting, for example in windows and niches, indoors. Raised LED chip provides good glare reduction while the reflector makes the light flow more efficient. Driver 350mA ordered separately.
Tilt = Adjustable mini downlight for indoor use.
In/Out = Adjustable mini downlight for indoor and outdoor use.
Tilt = Adjustable mini downlight for indoor use.
In/Out = Adjustable mini downlight for indoor and outdoor use.
- Article number: 7468198
- Suppl. article no: 907001
- Ean no: 7021989070016
- Material class QT442A
Technical data
- Packagin Size: 1 ST/10 ST/80 ST/80 ST
- Design: 15°
- Max. system power: 1 W
- Rated luminous flux according to IEC 62722-2-1: 80 lm
- Colour temperature: 2700 K
- Housing colour: White
- Luminous flux: 0-100 lm
- Surface brushed: Yes
- Beam angle: 11-20° - Narrow beam
- Dimming DALI: No
- Outer diameter: 35 mm
- Built-in diameter: 25 mm
- Height/depth: 27.5 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: No
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 0 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming phase cut-off (trailing edge): No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 33 mm
- Built-in length: 25 mm
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Total harmonic distortion: 0
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Power factor: 0
- Photobiological safety according to EN 62471: Other
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: None
- Material cover: Plastic, opal
- Built-in width: 25 mm
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 1 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light distributor: Other
- Light outlet: Direct
- Luminaire efficacy: 80 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 1 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- Length: 33 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 10 V
- Voltage type: DC
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Suitable for ceiling mounting: No
- Degree of protection (NEMA): Other
- Impact strength: IK00
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Other
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 70 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 50 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- IFTTT support available: No
- Emergency power supply integrated: No
- Exchangeable control gear: Yes
- Energy efficiency class: A
- Nominal current: 350 mA
- Built-in height/depth: 26 mm
- Connection type: Other
- Dimming GPRS: No
- Dimming depending on control gear: Yes
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- Rated life time L80/B10 at 25 °C: 0 h
- REACH Date: 2021-09-03
- Energy efficiency class of the provided exchangeable built-in lamp: A
- REACH Information obligation: No
