Designlight

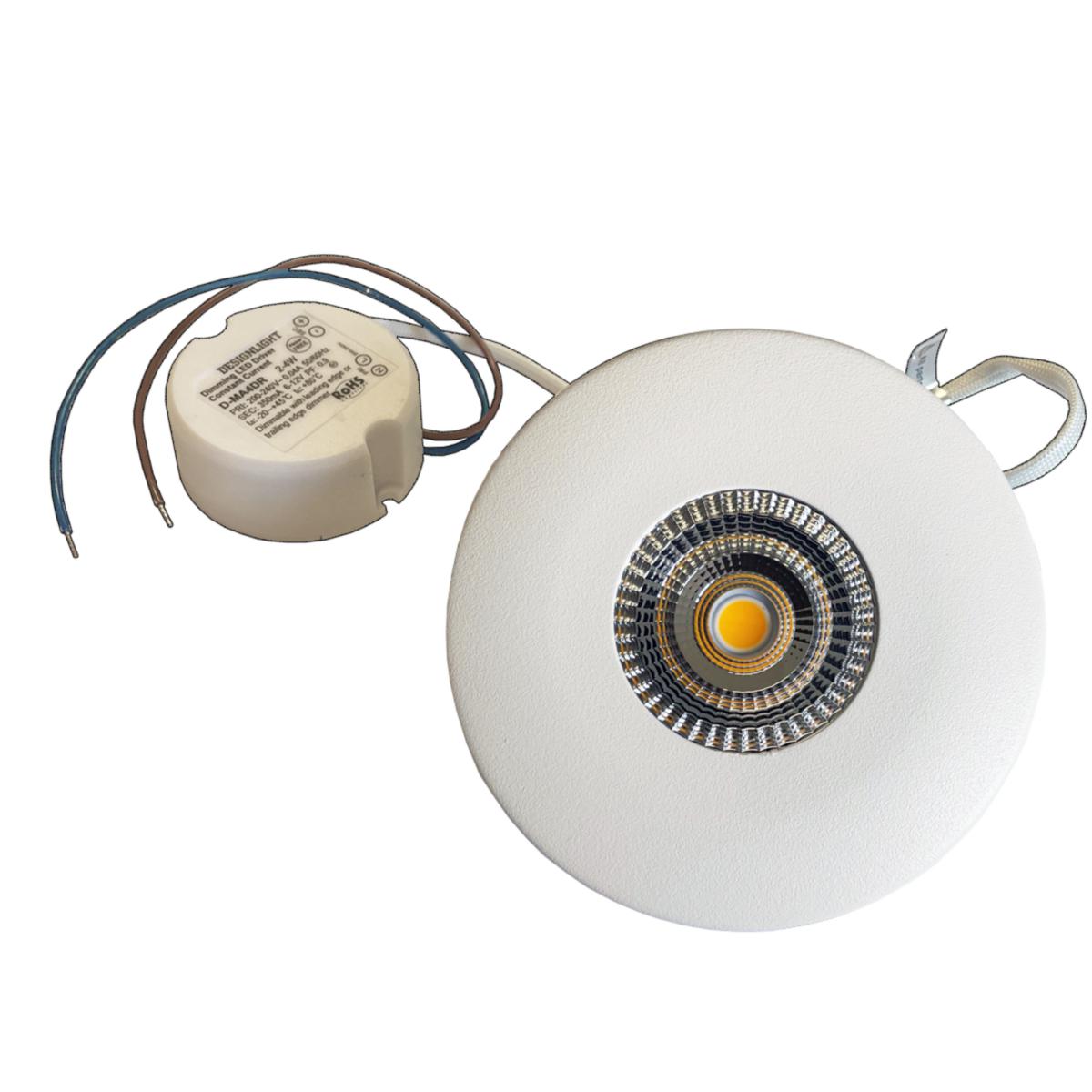

Downlight Led DB-236MW 4.6w, Designlight
DOWNL DB-236 3000K
Article number: Suppl. article no:
7464674
DB-236MW
to see price and stock
Downlight with removable front, suitable for installation directly in the apparatus box or connection box.
Delivered with dimmable power source.
White decoration. Loose decorations in matte nickel, copper, and gold are available as accessories.
Delivered with dimmable power source.
White decoration. Loose decorations in matte nickel, copper, and gold are available as accessories.
- Article number: 7464674
- Suppl. article no: DB-236MW
- Ean no: 7340132800769
- Material class QT4440
Technical data
- Packagin Size: 1 PCS/48 PCS
- Energy label: F
- Max. system power: 4.6 W
- Rated luminous flux according to IEC 62722-2-1: 400 lm
- Colour temperature: 3000 K
- Housing colour: White
- Beam angle: Medium beam 21-40°
- Outer diameter: 90 mm
- Built-in diameter: 50 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: High-gloss
- Housing material: Aluminium
- Degree of protection (IP): IP44
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Suitable for clamp-mounting: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-230 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Emergency power supply integrated: No
- Built-in height/depth: 15 mm
- REACH Date: 2021-08-16
- Type: DB-236MW
- Spreading angle: 34°
- REACH Information obligation: No
