Downlight Led DB-235MW 4.6w, Designlight
DOWNL DB-235 2700K
Article number: Suppl. article no:
7464673
DB-235MW
to see price and stock

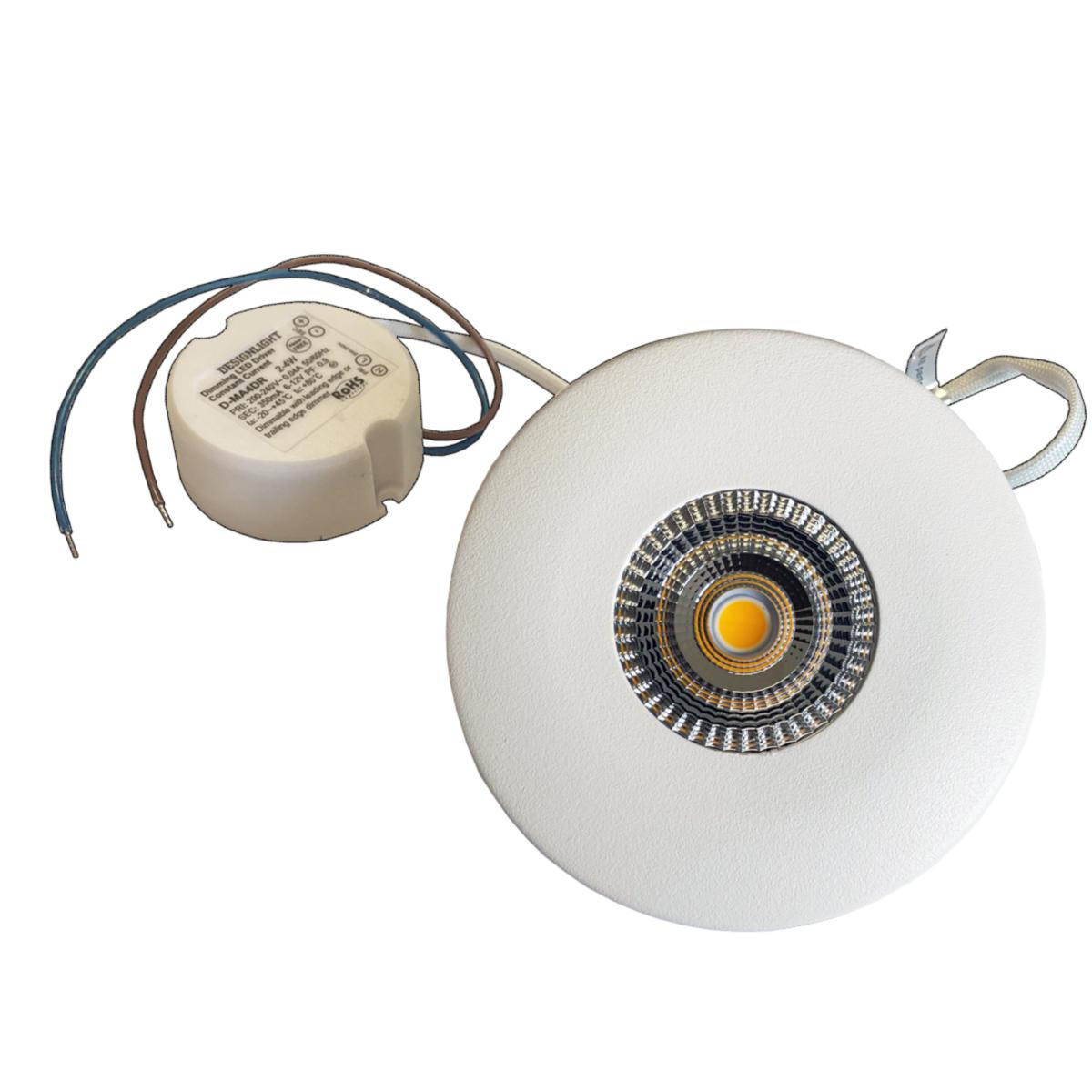

Downlight with removable front, suitable for installation directly in the apparatus box or connection box.
Delivered with dimmable power source.
White decoration. Loose decorations in matte nickel, copper, and gold are available as accessories.
Delivered with dimmable power source.
White decoration. Loose decorations in matte nickel, copper, and gold are available as accessories.
- Article number: 7464673
- Suppl. article no: DB-235MW
- Ean no: 7340132800752
- Material class QT4441
Technical data
- Packagin Size: 1 PCS/48 PCS
- Max. system power: 4.6 W
- Rated luminous flux according to IEC 62722-2-1: 345 lm
- Colour temperature: 2700 K
- Housing colour: White
- Luminous flux: 345 lm
- Surface brushed: No
- Beam angle: Medium beam 21-40°
- Dimming DALI: No
- Dimming DALI-2: No
- Outer diameter: 90 mm
- Built-in diameter: 50 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: High-gloss
- Housing material: Aluminium
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): Yes
- Degree of protection (IP): IP44
- Dimmable: Yes
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 80-89
- Suitable for clamp-mounting: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-230 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Covering of the luminaire with thermally insulating material possible: No
- Beam angle adjustable: No
- Colour of light adjustable: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Emergency power supply integrated: No
- Energy efficiency class: A++
- Built-in height/depth: 15 mm
- Dimming GPRS: No
- Dimming depending on control gear: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Date: 2021-08-16
- Type: DB-235MW
- Spreading angle: 34°
- REACH Information obligation: No
