Downlight LED Slim, Hide-a-lite
LED SPOT SLIM 12V WW ALU
Article number: Suppl. article no:
7463060
7463060
to see price and stock

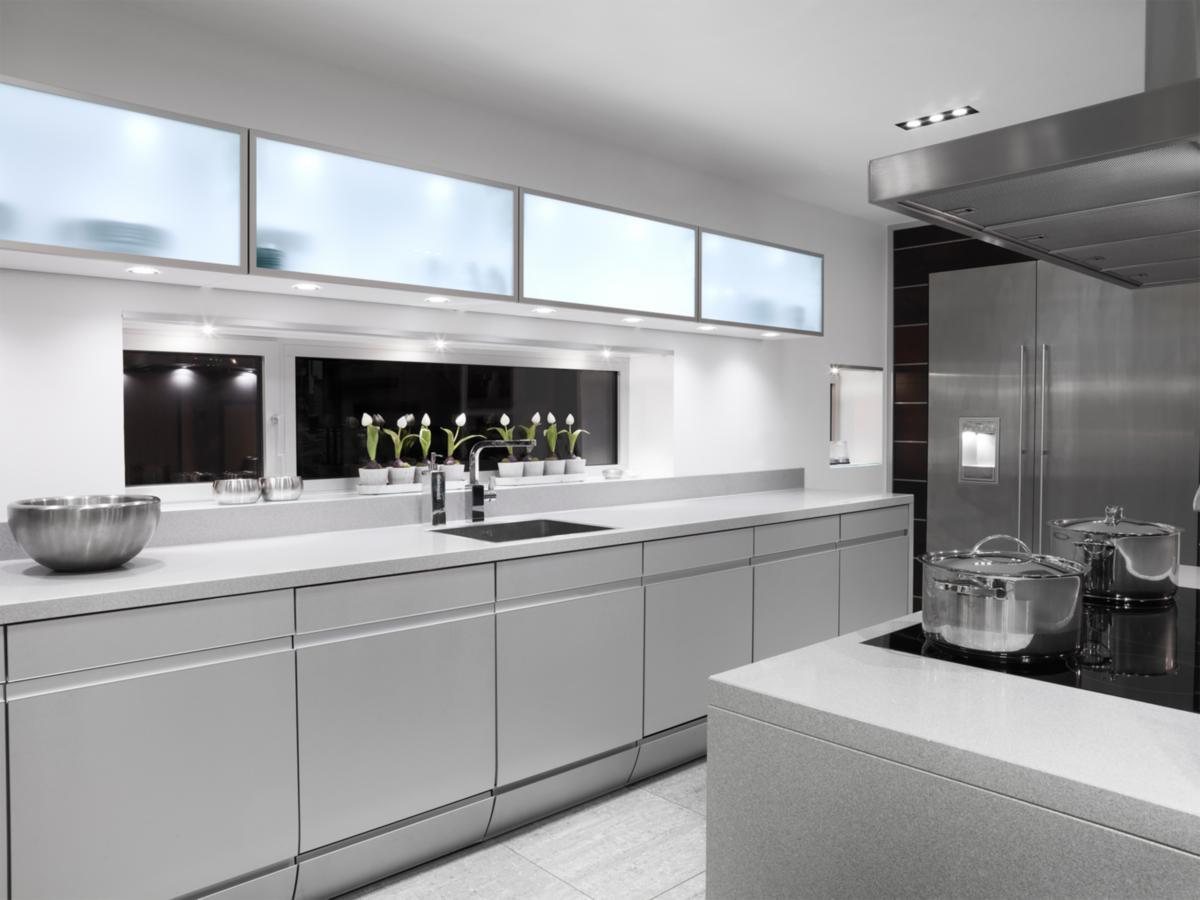

A LED fixture that is only 9 mm deep and is perfect lighting in cabinets and under shelves in the kitchen and bathroom. Energy-efficient 2W LED light source with a 55° scatter. Saves 80% of the energy required to run the equivalent of 10W halogen spots. Lightweight aluminium housing with matt brushed or white lacquer finish. Comes with a 2m cable and a quick connector, connected to LED transducer 12V DC via parallel connection, can be controlled by LED dimmer. Accessories include a spacer ring for surface mounting.
- Article number: 7463060
- Suppl. article no: 7463060
- Ean no: 7392971119939
- Material class QT432A
Technical data
- Packagin Size: 1 PCS/20 PCS/20 PCS/100 PCS
- Max. system power: 2.2 W
- Rated luminous flux according to IEC 62722-2-1: 125 lm
- Colour temperature: 3000 K
- Housing colour: Aluminium
- Luminous flux: 125 lm
- Surface brushed: No
- Beam angle: 41-80° - Wide beam
- Dimming DALI: No
- Outer diameter: 68 mm
- Height/depth: 11 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: No
- Type of control gear: LED operating device voltage-controlled
- Luminous intensity: 100 cd
- Reflector: None
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Dimming phase cut-off (trailing edge): No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -25-40 °C
- Photobiological safety according to EN 62471: Other
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: None
- Material cover: Plastic, opal
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light distributor: None
- Light outlet: Direct
- Luminaire efficacy: 56.8181818181818 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for surface mounting: Yes
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 12 V
- Voltage type: DC
- Rated lifetime L70/B50 at 25 °C: 25000 h
- Suitable for ceiling mounting: Yes
- Impact strength: Other
- Dimming Touch and Dim: No
- Type of wiring: Ending
- Surface protection: Lacquered
- Colour consistency (McAdam ellipse): SDCM5
- Covering of the luminaire with thermally insulating material possible: No
- Built-in height/depth: 9 mm
- Connection type: Push-in clamp
- Dimming GPRS: No
- Dimming depending on control gear: Yes
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Date: 2022-06-01
- Type: SLIM LED
- Spreading angle: 55°
- REACH Information obligation: No
