Hide-a-lite

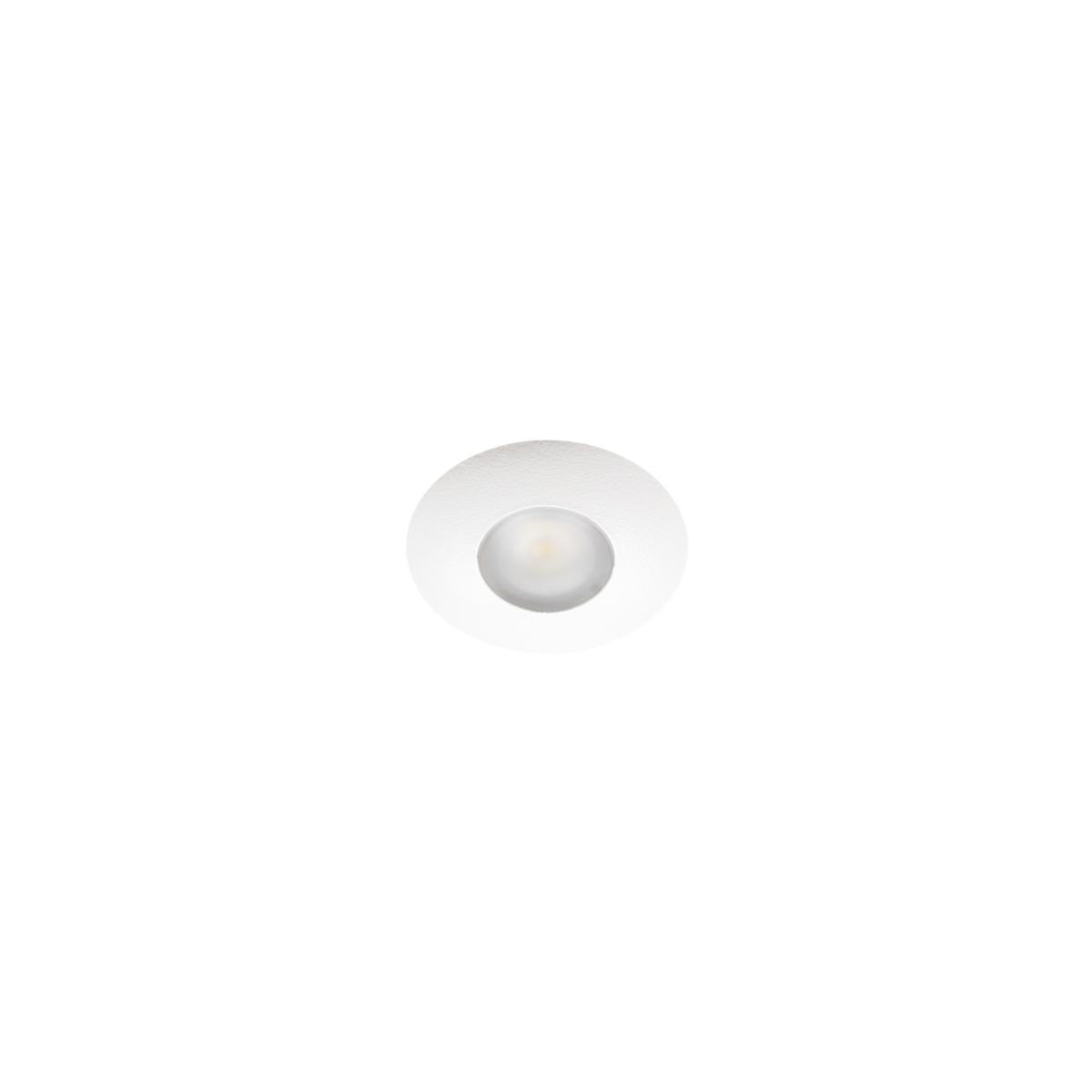

Downlight LED Dot VP IP44, Hide-a-lite
DOWNL 1,2W 2700K IP44 WHT LED DOT VP
Article number: Suppl. article no:
7450581
7450581
to see price and stock

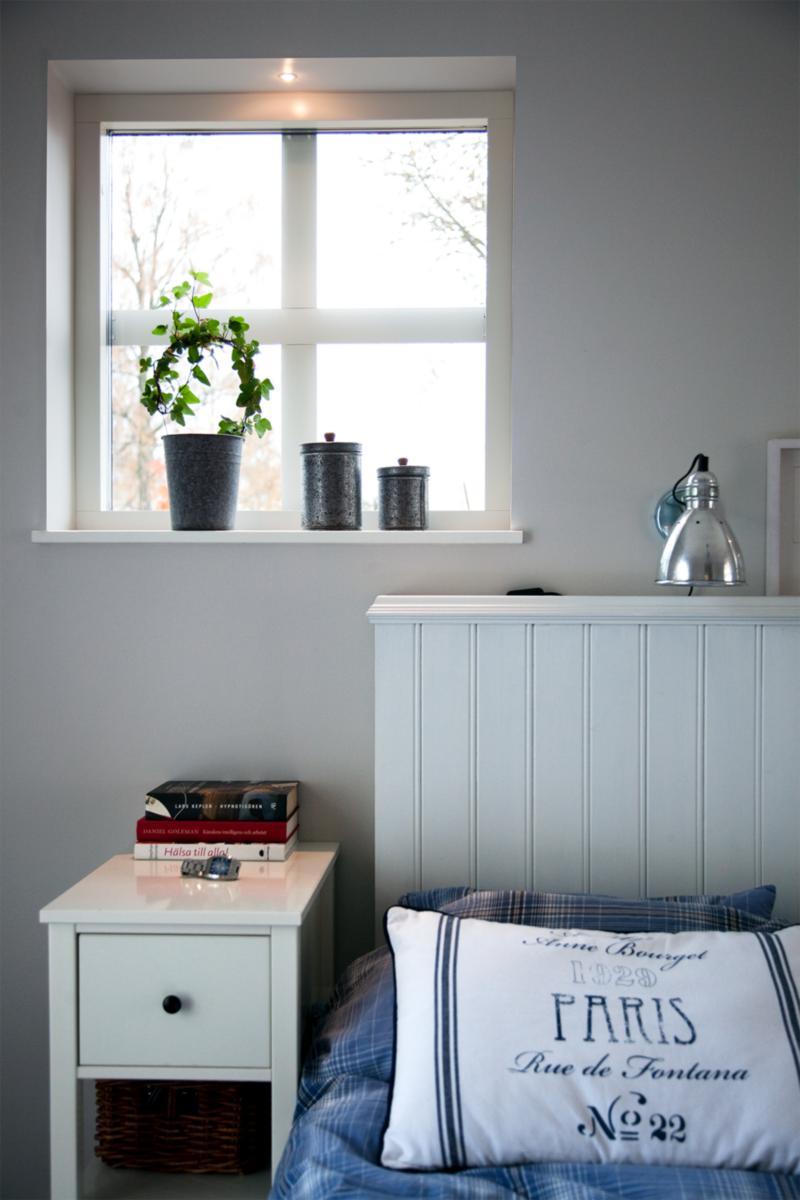

Small LED fixtures with energy-efficient LED light source of 1,2W/350mA with a 45° spreading angle. Simple installation in the flexible pipes 16 All are in holed measurements 16-20 using the enclosed spring. Perfects as decorative lighting recessed in shelves and window niches in public and home environments. Supplied with 2 m pre-cable. To be connected to a DC convertor via a series connection from plus to minus. Operating unit is ordered separately and can be supplied with or without a dimming option.
- Article number: 7450581
- Suppl. article no: 7450581
- Ean no: 7392971124384
- Material class QT432A
Technical data
- Packagin Size: 1 PCS/100 PCS/100 PCS
- Max. system power: 1.3 W
- Rated luminous flux according to IEC 62722-2-1: 90 lm
- Colour temperature: 2700 K
- Housing colour: White
- Luminous flux: 90 lm
- Surface brushed: No
- Beam angle: Wide beam 41-80°
- Dimming DALI: No
- Outer diameter: 30 mm
- Height/depth: 22 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: No
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 110 cd
- Reflector: None
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Dimming phase cut-off (trailing edge): No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -25-40 °C
- Photobiological safety according to EN 62471: Other
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: None
- Material cover: Plastic, transparent
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light distributor: None
- Light outlet: Direct
- Luminaire efficacy: 69.2307692307692 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Voltage type: DC
- Rated lifetime L70/B50 at 25 °C: 30000 h
- Suitable for ceiling mounting: Yes
- Impact strength: Other
- Dimming Touch and Dim: No
- Type of wiring: Ending
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Built-in height/depth: 15 mm
- Connection type: Push-in clamp
- Dimming GPRS: No
- Dimming depending on control gear: Yes
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Date: 2022-06-01
- Type: LED dot VP IP44
- REACH Information obligation: No
