Contact rail 3-phase Shopline - SHOPLINE RAIL 3M WHITE SHOPLINE
SG Armaturen

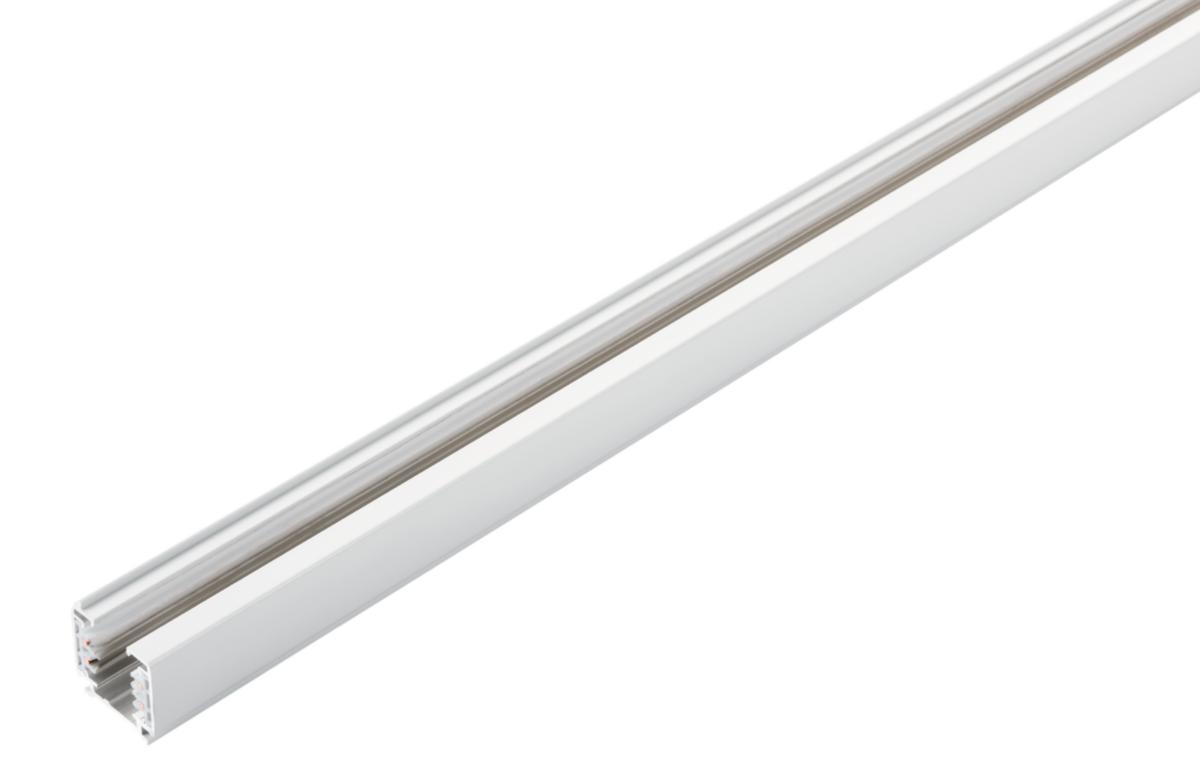

Contact rail 3-phase Shopline

SHOPLINE RAIL 3M WHITE SHOPLINE
Article number:
7401174E
Suppl. article no:
312421





 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
Complete 3-phase rail system in three different lengths 2, 3 and 4 meters that can be easily extended or cut. Mounted poem on ceiling or suspended. A variety of accessories are available as angles and interconnections to be able to assemble into a complete system in a room. Once all the rails are connected, one end is enough to connect to 230V. Contact rails are one of the smoothest ways to create a flexible lighting environment in, for example, shops, exhibitions and offices.
  • Article number:
    7401174E
  • Suppl. article no:
    312421
  • Ean no:
    7021983124210
  • Material class
    QT4690
Technical data
  • Packagin Size: 1 ST/8 ST
  • Length: 3000 mm
  • Colour: White
  • Width: 35 mm
  • Height: 36 mm
  • Number of groups/phases: 3
  • Bendable: No
  • Shape: Rectangular
  • Built-in: No
  • Suitable for bus connection: No
  • Suitable for suspended mounting: Yes
  • Material: Aluminium
  • Max. electrical capacity per phase: 3600 W
  • Nominal voltage: 220-250 V
  • Surface-mounted: Yes
  • Protection class according to IEC 61140: I
  • Surface finishing: Matt
