Schneider Electric

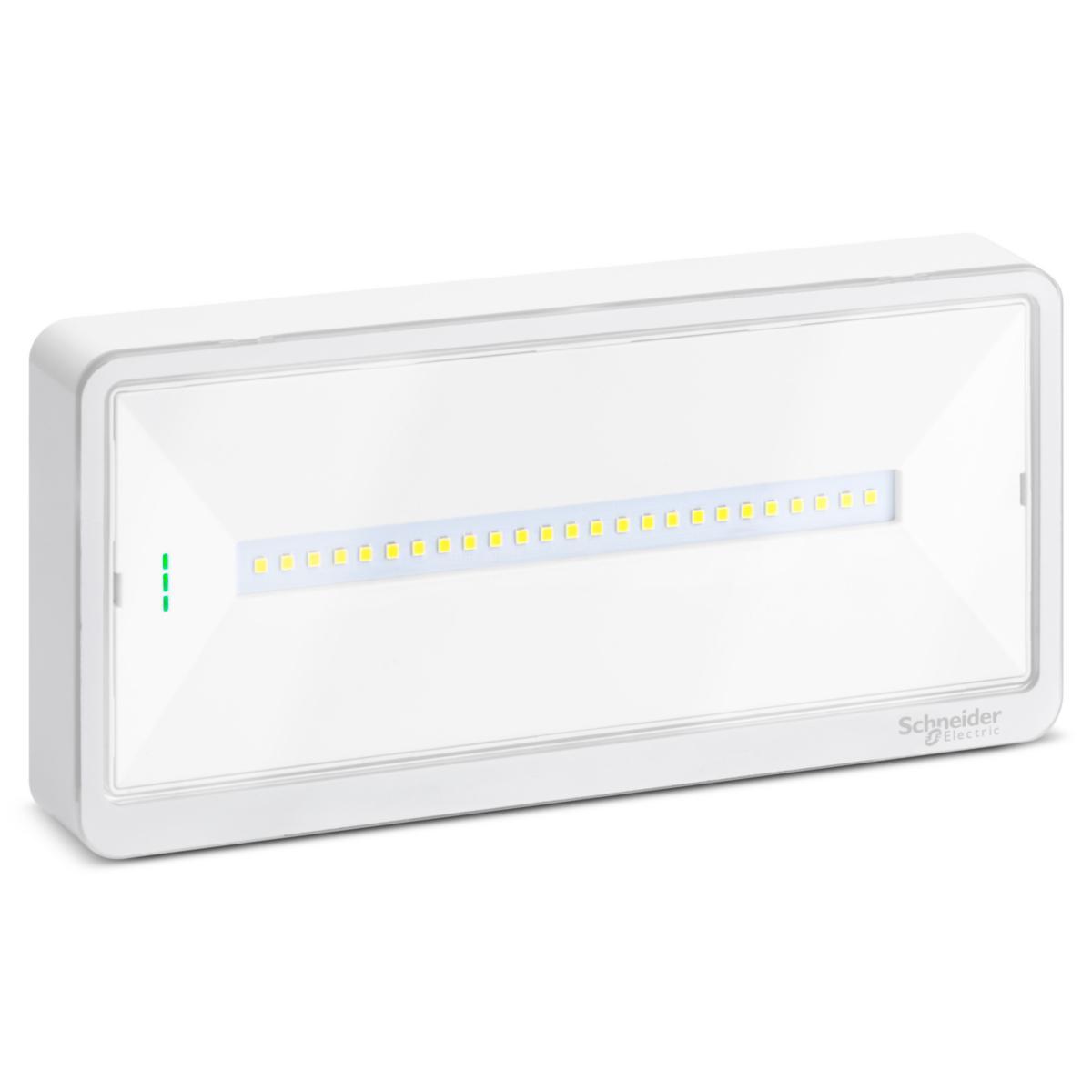

Emergency lighting fixture EX-Light
EXW-LIGHT IP65 ACT.LMR/110SA OVA44111
Article number: Suppl. article no:
7346035
OVA44111
to see price and stock
The emergency light luminaire Exiway Light is a smart product with unique properties. SELF-TEST The luminaire is IP65 and with the option to set the time for emergency lighting between 1-3 hours without accessories. It is also possible to set whether the luminaire should be luminous or non-luminous during normal operation, depending on the environment and assignment. The luminaire is easily assembled with a soft knockout for easy and safe installation. The luminaire is delivered as an emergency lighting luminaire but is easily converted via its smart accessories even to a sign with a reading distance of 20m.
- Article number: 7346035
- Suppl. article no: OVA44111
- Ean no: 3606481918123
- Material class QT2980
Technical data
- Packagin Size: 1 ST/18 ST/144 ST
- Recognition distance: 20 m
- Width: 112 mm
- Height/depth: 32 mm
- Length: 229 mm
- Type of indicator: Single/double-sided
- Housing colour: White
- Max. system power: 1.69 W
- Luminous flux in standby mode: 70 lm
- Monitoring equipment: Automatic self test
- With pictogram: No
- Wiring system: Continuous circuit/emergency circuit
- Power supply system: Peripheral (individual battery)
- Housing material: Plastic
- Lamp type: LED not exchangeable
- Degree of protection (IP): IP65
- Protection class according to IEC 61140: II
- Impact strength: IK09
- Mounting method: Wall surface mounted
- Number of lighting heads: 1
- Number of poles: 2
- Battery technology: Other
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Type of control gear: Not required
- Function: Escape route lighting/signage
- Colour temperature: 4500-5000 K
- Material cover: Plastic, transparent
- Lamp holder: None
- Conductor cross section: 2.5 mm²
- Light distributor: Reflector
- Suitable for number of light sources: 1
- Suitable for labelling type: Other
- With remote switch connection: No
- With light source: Yes
- Nominal voltage: 220-230 V
- Nominal operation time: 1-3 h
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: 0-40 °C
- Rated luminous flux according to IEC 62722-2-1: 110 lm
- Voltage type: AC
- Type of wiring: Ending
- With remote control: No
- Exchangeable control gear: No
- Connection type: Screw connection
- Rated life time L80/B10 at 25 °C: 100000 h
- REACH Date: 2022-07-20
- LED nominal current at constant current: 150 mA
- Energy efficiency class of the built-in lamp: Other
- REACH Information obligation: No
