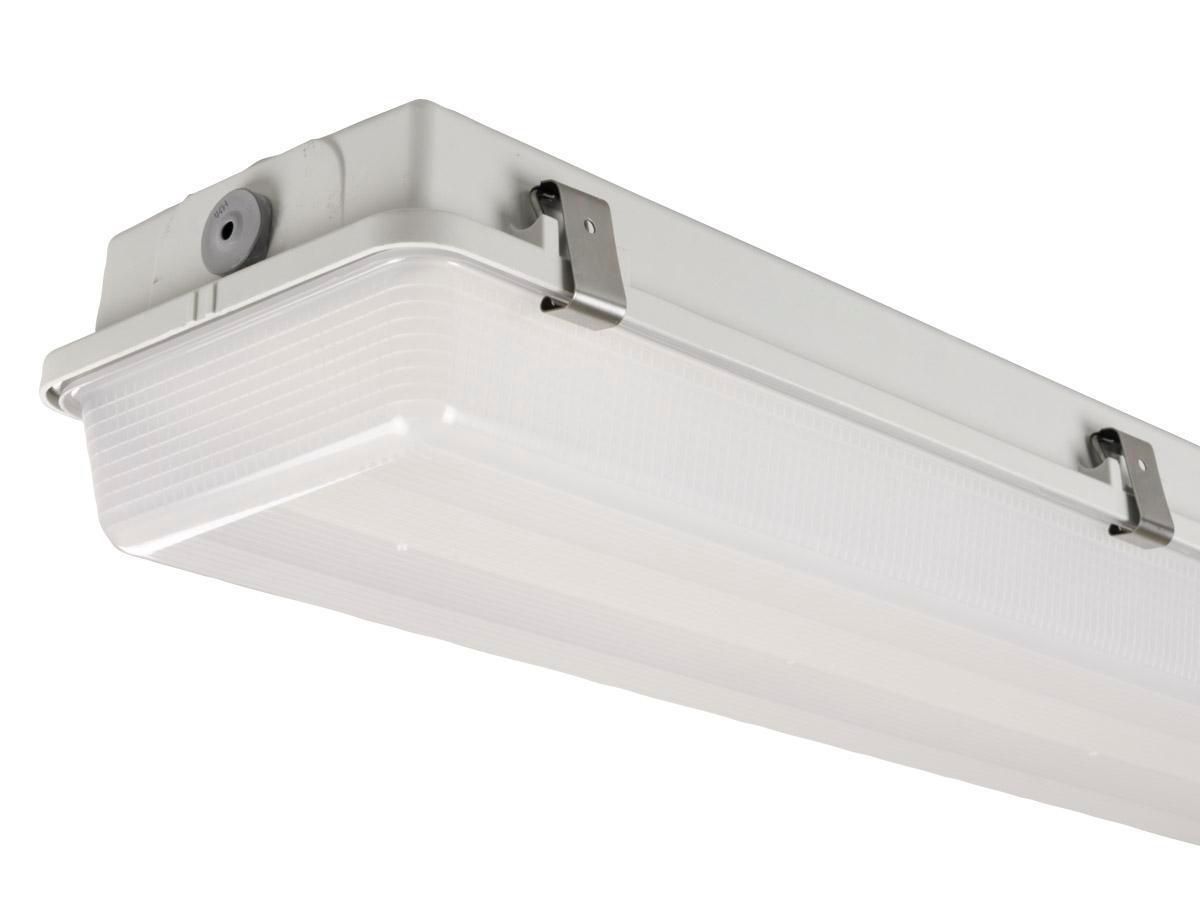

Industrial light fixture IP 65 Mamba LED, Exaktor
IND LUM 60W/840 IP65 MAMBA 5201/60 L840/449
Article number: Suppl. article no:
7223569
7223569
to see price and stock
Mamba LED - High-efficiency fixture with an LED light source. The fixture is well-suited for use in environments with temperatures (-20° to + 35°) and are not sensitive to vibrations. Completely dust-proof design IP65, means that the fixture is suitable for demanding environments such as industrial settings and carpentry shops. The fixture is equipped with top-of-the-line drivers, and variations that come with Dali control as standard. Meets the requirements for D-marking. Fixtures with the designation -RS, (motion sensor), are best suited for a max ceiling height of 4 meters.
Assembly: On the ceiling, on the wall, on a hoist cable with acid proof line fitting 343 or 347.
Assembly: On the ceiling, on the wall, on a hoist cable with acid proof line fitting 343 or 347.
- Article number: 7223569
- Suppl. article no: 7223569
- Ean no: 7330139520401
- Material class QT1620
Technical data
- Packagin Size: 1 ST/36 ST/36 ST
- Type: Mamba LED
- Design: 5201/60
- Max. system power: 36 W
- Rated luminous flux according to IEC 62722-2- 1: 5000 lm
- Colour temperature: 4000 K
- Dimming DALI: No
- Dimming DALI-2: No
- With movement sensor: No
- Beam angle: > 80° - Extreme wide beam
- Housing colour: Grey
- Housing material: Plastic
- Degree of protection (IP): IP65
- Lamp holder: Other
- Length: 1276 mm
- Width: 170 mm
- Height/depth: 108 mm
- Lamp type: LED exchangeable
- Nominal voltage: 230 V
- Material cover: Plastic, opal
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 5
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Dimming with push-button: No
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- Dimming programmable: No
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Colour rendering index CRI: 80-89
- Dimmable: No
- Conductor cross section: 2.5 mm²
- Colour of light: White
- Light outlet: Direct
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- With light source: Yes
- With light sensor: No
- With air slots: No
- Rated ambient temperature according to IEC 62722-2-1: -20-35 °C
- Suitable for ceiling mounting: Yes
- Protection class according to IEC 61140: I
- Voltage type: AC
- Type of wiring: Loop-through wiring included
- Covering of the luminaire with thermally insulating material possible: No
- Operation by Bluetooth: No
- Colour consistency (McAdam ellipse): SDCM3
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 85 %
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 24
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 40
- Exchangeable control gear: Yes
- Connection type: Other
- Article number supplier: 5201/60
- Suitable for switching: Yes
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
