Designlight

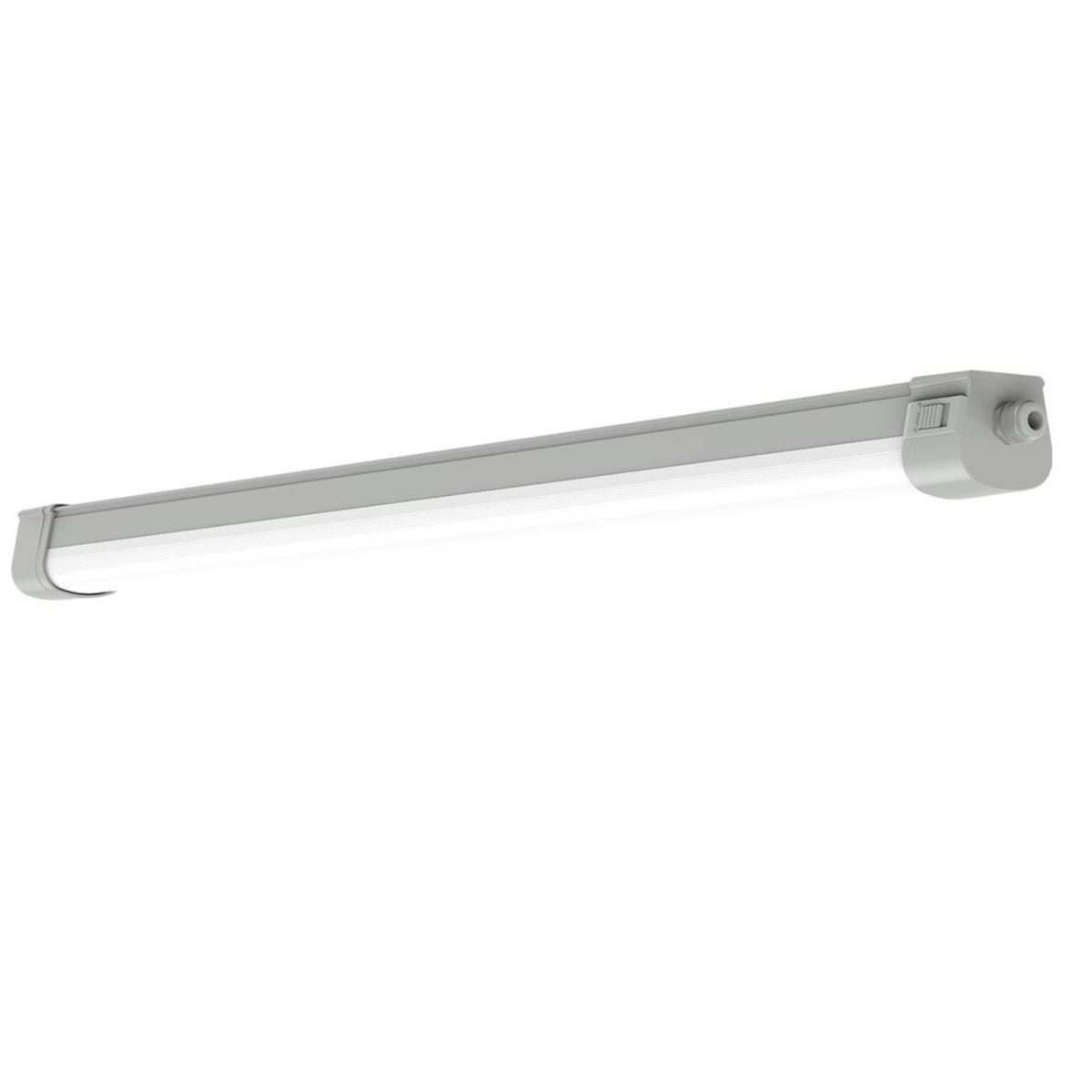

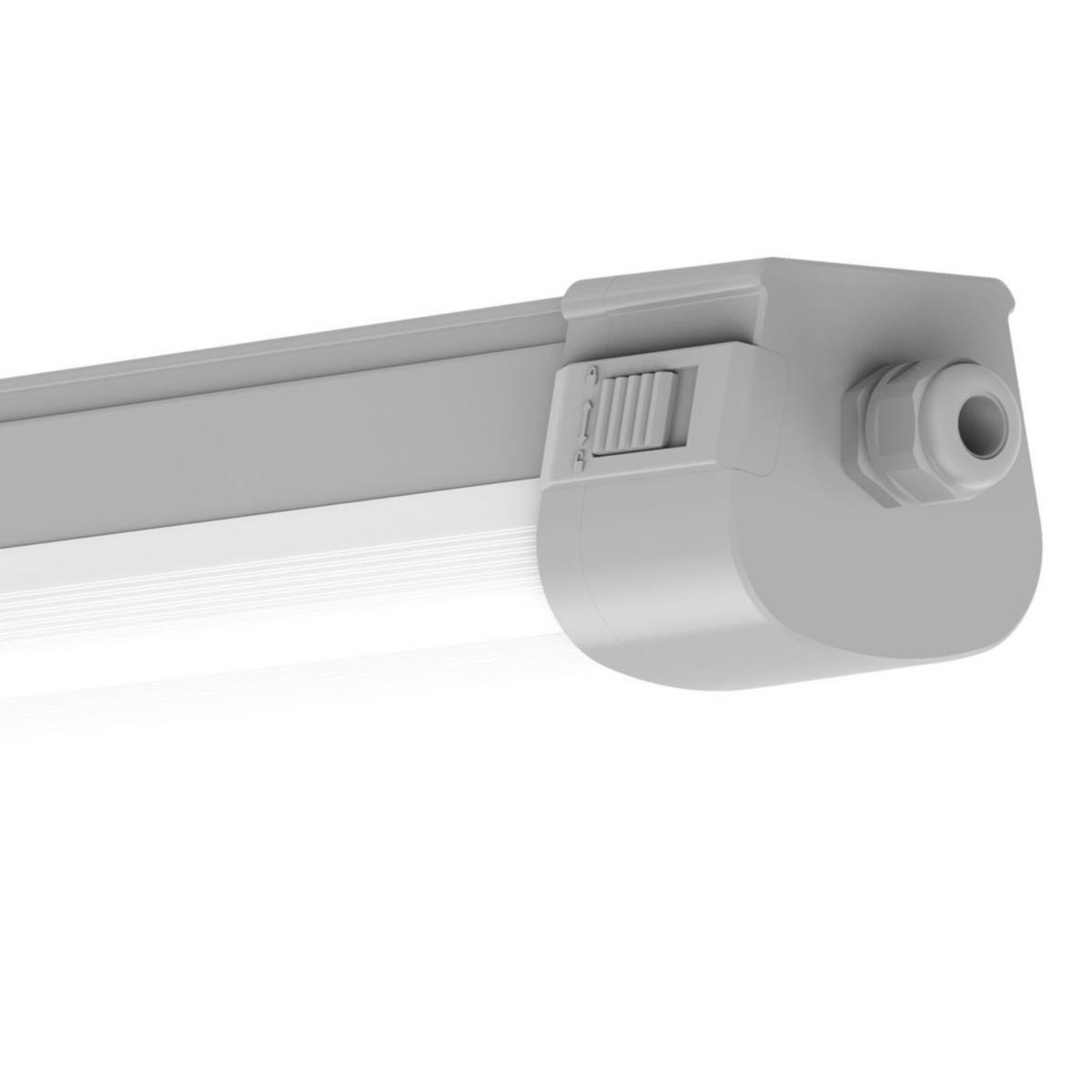

Industrial luminaire Lighty IP65
IndArm IP65 35/44/53/63W 1500
Article number: Suppl. article no:
7217704
TB33-1500
to see price and stock
Industrial luminaire IP65 with energy-saving LED. Turn on/off. Selectable effect/light flow. Gray frame and ends of Polycarbonate with UV protection. roasted cup. IK08. D-marked. Mounting with the included mounting kit. Suitable mounting height 4-8 meters. The fixture is openable and has a switch at the ends, 3x1.5mm² quick coupling for 7217363 and 5x2.5mm² quick coupling for 7217704. Suitable for both new installation and replacement of traditional T5 and T8 fluorescent lamps. Sustainable lighting with high luminous flux (up to 160lm/W) and a lifespan of 100,000H L80B10, Lighty consists of recycled material and has a modular design, which makes the luminaire easy to maintain and recycle again.
- Article number: 7217704
- Suppl. article no: TB33-1500
- Ean no: 7340132804408
- Material class QT1700
Technical data
- Packagin Size: 1 PCS/6 PCS/78 PCS
- Energy label: B
- Max. system power: 63 W
- Rated luminous flux according to IEC 62722-2- 1: 10080 lm
- Colour temperature: 4000 K
- Dimming DALI: No
- Dimming DALI-2: No
- With movement sensor: No
- Beam angle: > 80° - Extreme wide beam
- Housing colour: Grey
- Housing material: Plastic
- Degree of protection (IP): IP65
- Lamp holder: Other
- Length: 1500 mm
- Width: 80 mm
- Height/depth: 74 mm
- Lamp type: LED exchangeable
- Nominal voltage: 230 V
- Impact strength: IK08
- Material cover: Plastic, opal
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 5
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Power factor: 0.9
- Colour rendering index CRI: 80-89
- Dimmable: No
- Conductor cross section: 2.5 mm²
- Light distribution: Symmetric
- Colour of light: White
- Light distributor: Other
- Light outlet: Direct
- Luminaire efficacy: 160 lm/W
- Suitable for built-in mounting: No
- Suitable for lamp power: 35-63 W
- Suitable for light line configuration: No
- Suitable for suspended mounting: Yes
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: No
- With air slots: No
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Covering of the luminaire with thermally insulating material possible: No
- Operation by Bluetooth: No
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 32
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 38
- IFTTT support available: No
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: B
- Compatible with Casambi: No
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- REACH Date: 2022-11-21
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- REACH Information obligation: No
- Emergency power supply integrated: No
