AhlsellProductsElectricLighting 70-8372 Industrial luminairesIndustrial luminaires IP54-68 and accessoriesIndustrial luminaires IP54-68
Philips

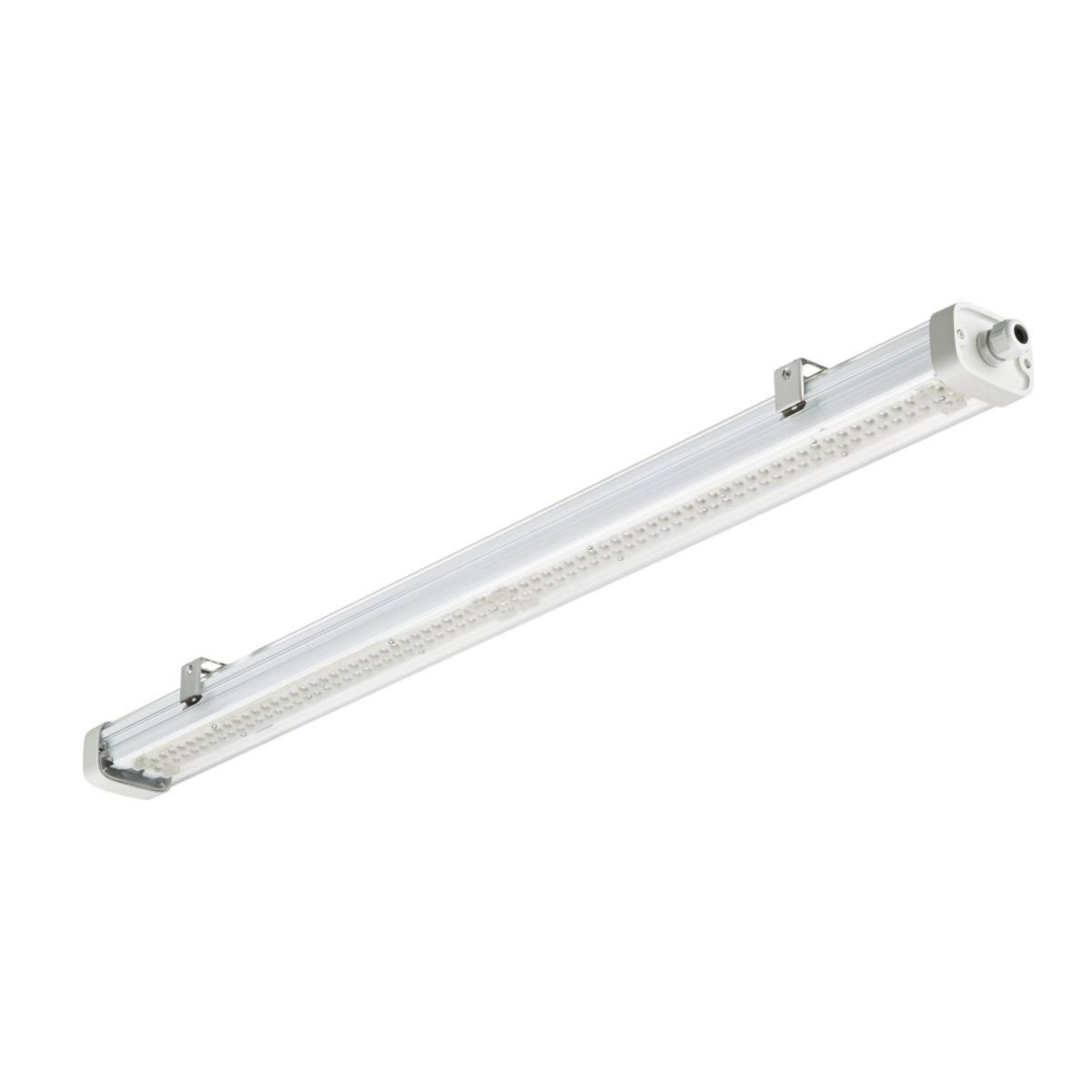

Industrial luminaire IP66 Pacific LED Gen5, L1200
WT490C LED64S/840 PSU WB TW3 P 871951410963600
Article number: Suppl. article no:
7216590
910925867708
Normally in stock
to view the store status of the store
to see price and stock
Pacific LED gen5 is an innovative and premium waterproof LED luminaire praised for its optimal performance. It meets the strict requirements of modern and harsh industrial environments. It is a very robust, compact and reliable luminaire with excellent light quality. With a high degree of protection against mechanical damage (IK08), water and dust (IP66) combined with proven chemical resistance, the Pacific LED gen5 has perfect characteristics to withstand the demanding conditions of the automotive and food industries as well as heavy industry, it also performs well in parking garages and warehouses.
Pacific LED gen5 luminaires provide light quality and homogeneous light that is superior and free of artifacts, and are offered with several types of optics and luminous fluxes (up to 15,000 lm). This makes it more flexible in planning optimized lighting arrangements. The design also has a circular orientation, meaning the fully repairable fixtures can be upgraded to extend their overall lifespan.
The luminaires stand out thanks to their quick and easy installation, which facilitates the use of continuous cabling and various connection and mounting options. In addition, they have an attractive total cost of ownership (TCO), energy efficiency and easy maintenance that minimally affects operations in demanding environments.
Pacific LED gen5 is made even more complete by the system integration with Interact Industry, which opens up further opportunities for optimized efficiency, energy savings, improved lighting management, productivity and safety. So a future insurance in all respects.
Discover Pacific LED gen5. Optimal performance for demanding environments.
PSD = Dali
PSU = On/Off
TW1 = Through wiring 1 phase
TW3 = Through wiring 3 phases
SIA = Sensor ready driver Interact System ready
NB-HRO = Wide beam
WB = Wide beam spread 40 to 80 degrees
VWB = High-reflective metal reflector very wide beam >80 degree
PI5 = Push-in connector 5-pole
WA7 = Wago push-in connector with 7 poles
ELP3 = Emergency module Basic 3h
ELD3 = Emergency module Pro 3h
Pacific LED gen5 luminaires provide light quality and homogeneous light that is superior and free of artifacts, and are offered with several types of optics and luminous fluxes (up to 15,000 lm). This makes it more flexible in planning optimized lighting arrangements. The design also has a circular orientation, meaning the fully repairable fixtures can be upgraded to extend their overall lifespan.
The luminaires stand out thanks to their quick and easy installation, which facilitates the use of continuous cabling and various connection and mounting options. In addition, they have an attractive total cost of ownership (TCO), energy efficiency and easy maintenance that minimally affects operations in demanding environments.
Pacific LED gen5 is made even more complete by the system integration with Interact Industry, which opens up further opportunities for optimized efficiency, energy savings, improved lighting management, productivity and safety. So a future insurance in all respects.
Discover Pacific LED gen5. Optimal performance for demanding environments.
PSD = Dali
PSU = On/Off
TW1 = Through wiring 1 phase
TW3 = Through wiring 3 phases
SIA = Sensor ready driver Interact System ready
NB-HRO = Wide beam
WB = Wide beam spread 40 to 80 degrees
VWB = High-reflective metal reflector very wide beam >80 degree
PI5 = Push-in connector 5-pole
WA7 = Wago push-in connector with 7 poles
ELP3 = Emergency module Basic 3h
ELD3 = Emergency module Pro 3h
- Article number: 7216590
- Suppl. article no: 910925867708
- Ean no: 8719514109636
- Material class QT1640
Technical data
- Packagin Size: 1 ST/84 ST/84 ST
- Design: PSU, TW3
- Max. system power: 40 W
- Rated luminous flux according to IEC 62722-2- 1: 6400 lm
- Colour temperature: 4000 K
- Dimming DALI: No
- Dimming DALI-2: No
- With movement sensor: No
- Beam angle: > 80° - Extreme wide beam
- Housing colour: White
- Housing material: Plastic
- Degree of protection (IP): IP66
- Lamp holder: Other
- Length: 1278 mm
- Width: 96 mm
- Height/depth: 68 mm
- Lamp type: LED exchangeable
- Nominal voltage: 220-240 V
- Suitable for number of light sources: 4
- Impact strength: IK08
- Material cover: Plastic, transparent
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 5
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Power factor: 0.96
- Colour rendering index CRI: 80-89
- Filament test according to IEC 60695-2-11: 850 °C - 30 s
- Dimmable: No
- Conductor cross section: 2.5 mm²
- Light distribution: Symmetric
- Colour of light: White
- Light distributor: Other
- Light outlet: Direct
- Luminaire efficacy: 160 lm/W
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: No
- With air slots: No
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Protection class according to IEC 61140: I
- Voltage type: AC
- Dimming Touch and Dim: No
- Type of wiring: Loop-through wiring included
- Covering of the luminaire with thermally insulating material possible: No
- Operation by Bluetooth: No
- Total harmonic distortion (THD): 20 %
- Photobiological safety according to EN 62471: RG0
- Colour consistency (McAdam ellipse): SDCM3
- Luminous intensity: 2549 cd
- Unified Glare Ratio (UGR): 22
- Surface protection housing: Untreated
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 95 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 5 %
- Flickering value Pst LM: 0.2456
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 24
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 40
- IFTTT support available: No
- Stroboscope effect value SVM: 0.0308
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Compatible with Casambi: No
- Suitable for wall mounting: No
- Nominal current: 0.162-0.202 mA
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): Yes
- Connection type: Push-in clamp
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Emergency power supply integrated: No
