Industrial luminaire indy 66 - IND LUM 42W 6000LM 4000K INDY66
D
a-collection

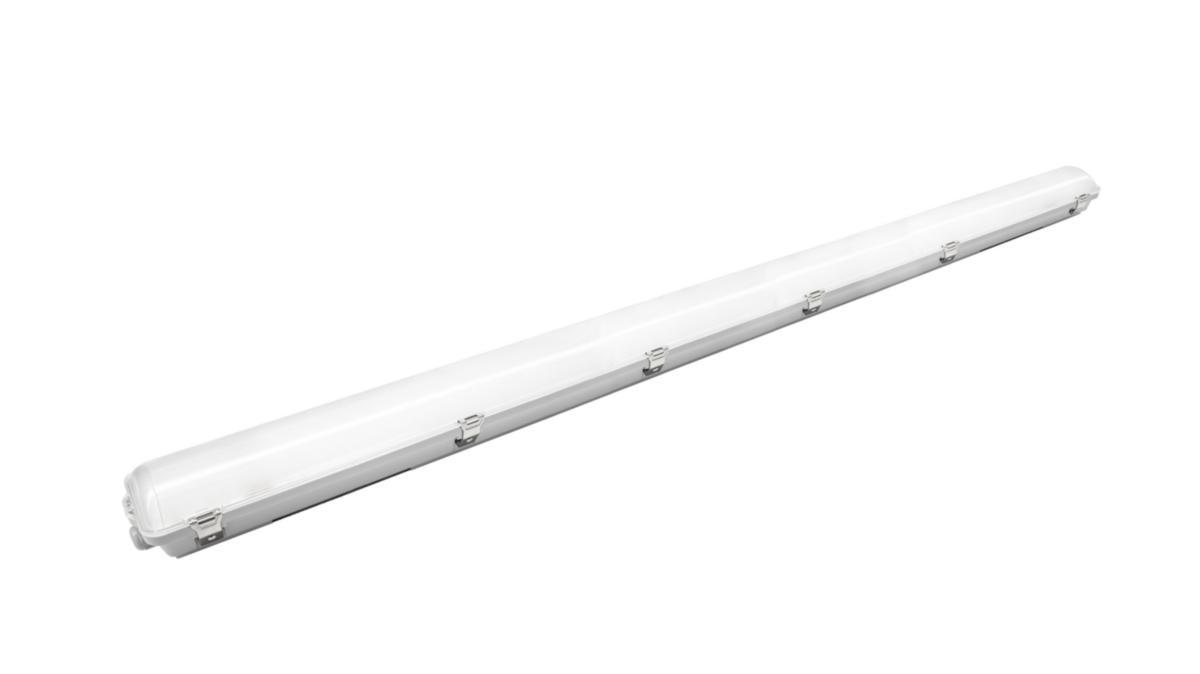

Industrial luminaire indy 66

IND LUM 42W 6000LM 4000K INDY66
Article number:
7215914





 to see price and stock
Energimärkt D
Luminaires for garages, wet rooms or other equivalent indoor environments that require IP66 and functional lighting. D-marked. Not suitable for installation in laundries, animal stables or other environments with aggressive chemicals. Frame and cup in polycarbonate with clips in stainless steel. Can be mounted close to the ceiling / wall, suspended or on a rope. Mounting bracket in stainless steel and bracket for rope mounting included. Mounting CC 770 mm. The cover can be locked with the included safety screw. Connection: Cable entry through PG 13.5 knockouts in the ends. Cable glands included. Prepared for connection in the ends with terminal block 5G2.5 mm. Luminaires with industrial devices have drive devices equipped with 4kV overvoltage protection and can withstand higher ambient temperatures.
  • Article number:
    7215914
  • Ean no:
    7333123081209
  • Material class
    QT1600
Technical data
  • Packagin Size: 1 ST/6 ST/6 ST/70 ST
  • Energy label: D
  • Max. system power: 42 W
  • Rated luminous flux according to IEC 62722-2- 1: 6000 lm
  • Colour temperature: 4000 K
  • Dimming DALI: No
  • With movement sensor: No
  • Beam angle: > 80° - Extreme wide beam
  • Housing colour: Grey
  • Housing material: Plastic
  • Degree of protection (IP): IP66
  • Length: 1520 mm
  • Width: 105 mm
  • Height/depth: 85 mm
  • Lamp type: LED not exchangeable
  • Nominal voltage: 220-240 V
  • Impact strength: IK08
  • Material cover: Plastic matt/satinized
  • Number of poles: 5
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
  • Colour rendering index CRI: 80-89
  • Dimmable: No
  • Conductor cross section: 2.5 mm²
  • Suitable for suspended mounting: Yes
  • Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
  • Suitable for ceiling mounting: Yes
  • Type of wiring: Loop-through wiring included
  • Colour consistency (McAdam ellipse): SDCM3
  • Suitable for wall mounting: Yes
  • Rated life time L80/B10 at 25 °C: 50000 h
