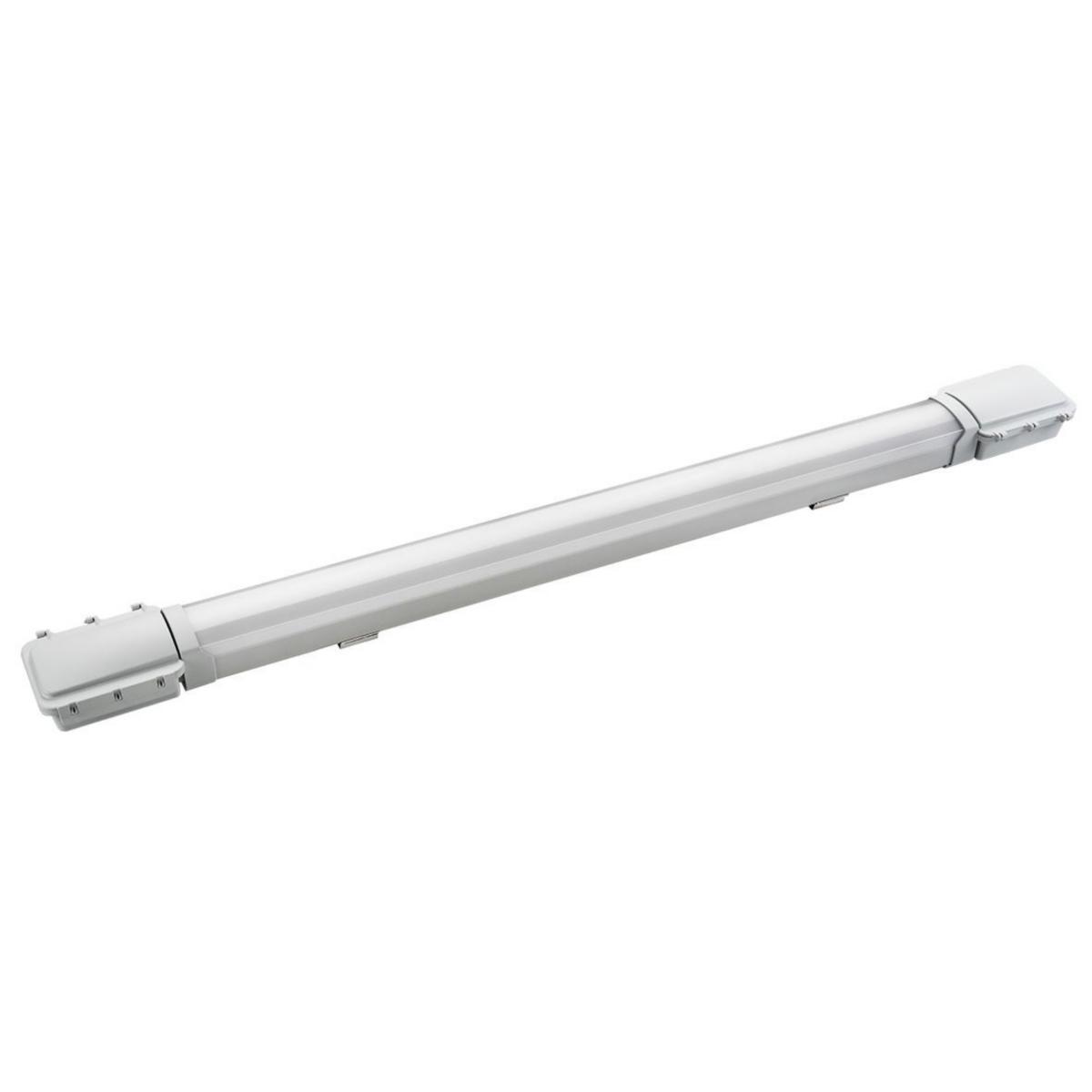

Industrial luminaire Farm 66
FARM 66 1200 4000K
Article number: Suppl. article no:
7215306
120009
to see price and stock
Farm 66 is a tough luminaire that is adapted for pig farms and the like. The LED compartment is IP69K protected to withstand ammonia gases in such environments. The luminaire housing is made of hard UV-stabilized polycarbonate with an ammonia-repellent coating. You mount it easily by snapping it into the mounting clips and using the unique closing mechanism with one hand at both ends. The loop connection options with double cable gland at each end and through the cable provide flexibility in larger installations.
- Article number: 7215306
- Suppl. article no: 120009
- Ean no: 7021981200091
- Material class QT174A
Technical data
- Max. system power: 34 W
- Rated luminous flux according to IEC 62722-2- 1: 4030 lm
- Colour temperature: 4000 K
- Lamp type: LED not exchangeable
- Housing colour: Grey
- Dimming DALI: No
- Length: 1174 mm
- Width: 112 mm
- Height/depth: 67 mm
- Outer diameter: 0 mm
- Housing material: Plastic
- Degree of protection (IP): IP66
- Impact strength: IK08
- Protection class according to IEC 61140: I
- With light source: Yes
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Nominal voltage: 230 V
- Voltage type: AC
- Beam angle: > 80° - Extreme wide beam
- Number of poles: 5
- Dimming phase cut-off (trailing edge): No
- Ball-proof according to DIN 18032-3: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): No
- Colour rendering index CRI: 80-89
- Filament test according to IEC 60695-2-11: 850 °C - 30 s
- Dimmable: No
- Lamp holder: None
- Conductor cross section: 1 mm²
- Light distribution: Symmetric
- Colour of light: White
- Light distributor: Other
- Suitable for number of light sources: 1
- Suitable for lamp power: 34 W
- Suitable for emergency lighting: No
- Suitable for auxiliary lamp: No
- Material reflector: Other
- With protective cover: No
- Rated lifetime L70/B50 at 25 °C: 0 h
- Rated ambient temperature according to IEC 62722-2-1: -25-25 °C
- Reflector: Other
- Degree of protection (NEMA): Other
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Colour consistency (McAdam ellipse): SDCM3
- Luminaire efficacy: 119 lm/W
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 0 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 0 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 50 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 30
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 51
- Exchangeable control gear: No
- Connection type: Push-in clamp
- REACH Date: 2021-09-24
- Lowest energy efficiency class of the exchangeable lamp: A++
- Highest energy efficiency class of the exchangeable lamp: A++
- Energy efficiency class of the provided exchangeable built-in lamp: A++
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Emergency power supply integrated: No
- Mounting method: Surface mounting
