Nokalux

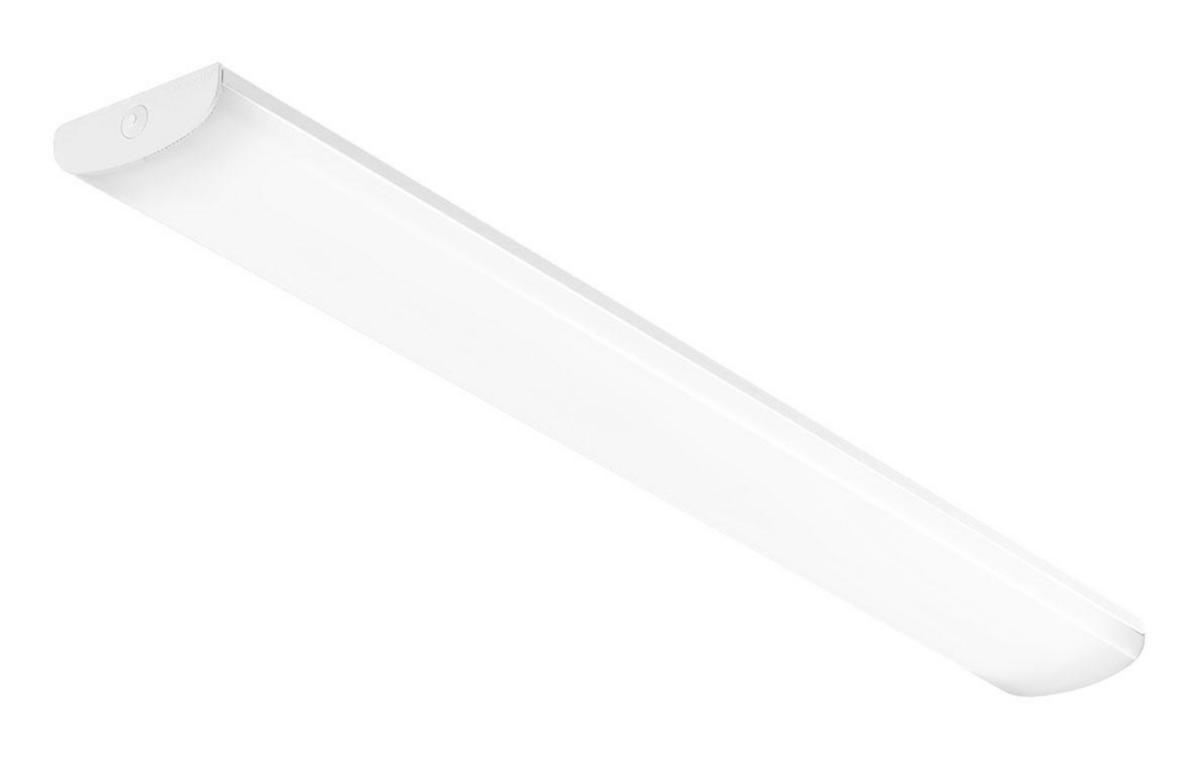

Industrial light fixture IP 44 Humid LED, Nokalux
IND LUM LED 5600/830 45340
Article number: Suppl. article no:
7254100
453401
to see price and stock

D-marked, encased, all-purpose LED fixture, IP 44. Slim white frame, aluzink with strike-resistant plastic ends.. Diffuser, acrylic opal-line prismatic. Flexible mounting direct to the ceiling, on a wall bracket, fixture rail or line. Connection via ends or top. As standard with a connectable 5-pole terminal. The LED modules have a light temperature of 830 or 840, with a lifespan of 50,000 h L70 and MacAdam 3 SDCM. Also available in a sensor model. Dimmable fixtures can be controlled via a pushbutton or Dali.
- Article number: 7254100
- Suppl. article no: 453401
- Material class QT1760
Technical data
- Max. system power: 40 W
- Rated luminous flux according to IEC 62722-2- 1: 4620 lm
- Colour temperature: 3000 K
- With movement sensor: No
- With light sensor: No
- With light source: Yes
- Degree of protection (IP): IP44
- Length: 1192 mm
- Width: 152 mm
- Height/depth: 50 mm
- Lamp holder: Other
- Lamp type: LED not exchangeable
- Protection class according to IEC 61140: I
- Suitable for ceiling mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Suitable for workplace according to EN 12464-1: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Colour rendering index CRI: 80-89
- Material cover: Plastic, opal
- Covering of the luminaire with thermally insulating material possible: No
- Housing colour: White
- Housing material: Steel
- With control gear: Yes
- Light distribution: Symmetric
- Colour of light: White
- Light outlet: Direct
- Suitable for light line configuration: No
- Suitable for emergency lighting: Yes
- With air slots: No
- Nominal voltage: 220-240 V
- Type of grid: None
- Impact strength: IK00
- Voltage type: AC
- Type of control gear: LED operating device current-controlled
- Beam angle: 41-80° - Wide beam
- Colour consistency (McAdam ellipse): SDCM3
- Luminaire efficacy: 116 lm/W
- Suitable for wall mounting: Yes
- REACH Date: 2023-03-03
- Type: Humid LED
- Suitable for switching: Yes
- REACH Information obligation: No
