AhlsellProductsElectricLighting 70-8372 Industrial luminairesIndustrial luminaires IP44 and accessoriesIndustrial luminaires IP44
Let it light

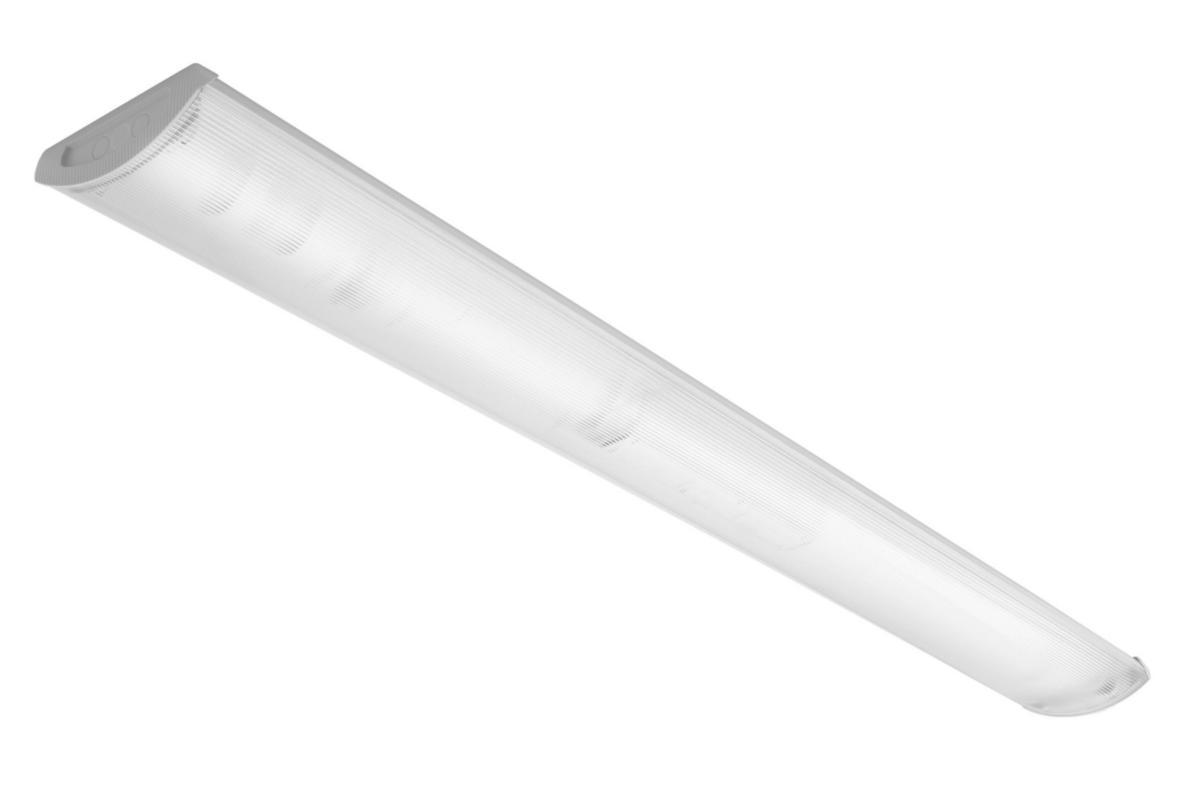

Industriarmatur IP44 LED, Let-it-Light
ARM LEDIP44 3K4250lm
Article number: Suppl. article no:
7251049
ARM.LEDIP44.3K4250lm
to see price and stock
To shop with us, you need a registered company and a customer number.
- Article number: 7251049
- Suppl. article no: ARM.LEDIP44.3K4250lm
- Material class QT1650
Technical data
- Max. system power: 31 W
- Rated luminous flux according to IEC 62722-2- 1: 4250 lm
- Colour temperature: 3000 K
- Dimming DALI: No
- With light source: Yes
- Degree of protection (IP): IP44
- Length: 172 mm
- Width: 1196 mm
- Height/depth: 57 mm
- Lamp type: LED not exchangeable
- With light sensor: No
- Type of wiring: Suitable for loop-through wiring
- Protection class according to IEC 61140: I
- Suitable for ceiling mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Suitable for workplace according to EN 12464-1: No
- Colour rendering index CRI: 80-89
- Material cover: Plastic, structured
- Covering of the luminaire with thermally insulating material possible: No
- Housing colour: White
- Housing material: Steel
- With control gear: Yes
- Light distribution: Symmetric
- Colour of light: White
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- With air slots: No
- Nominal voltage: 220-240 V
- Type of grid: None
- Voltage type: AC
- Type of control gear: LED operating device current-controlled
- Beam angle: Wide beam 41-80°
- Dimming phase cut-off (trailing edge): No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.9
- Dimming phase cut-on (leading edge): No
- No dim function: Yes
- Light distributor: Diffuser lens/optic/panel
- Luminaire efficacy: 137.096774193548 lm/W
- Rated life time L80/B10 at 25 °C: 50000 h
- Dimming Touch and Dim: No
- Suitable for wall mounting: Yes
- Rated luminous flux according to IEC 62722-2-1: 4250 lm
- REACH Date: 2021-01-01
- REACH Information obligation: No
- Dimming GPRS: No
- Dimming depending on control gear: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
