AhlsellProductsElectricLighting 70-8372 Industrial luminairesIndustrial luminaires IP44 and accessoriesIndustrial luminaires IP44
Hide-a-lite

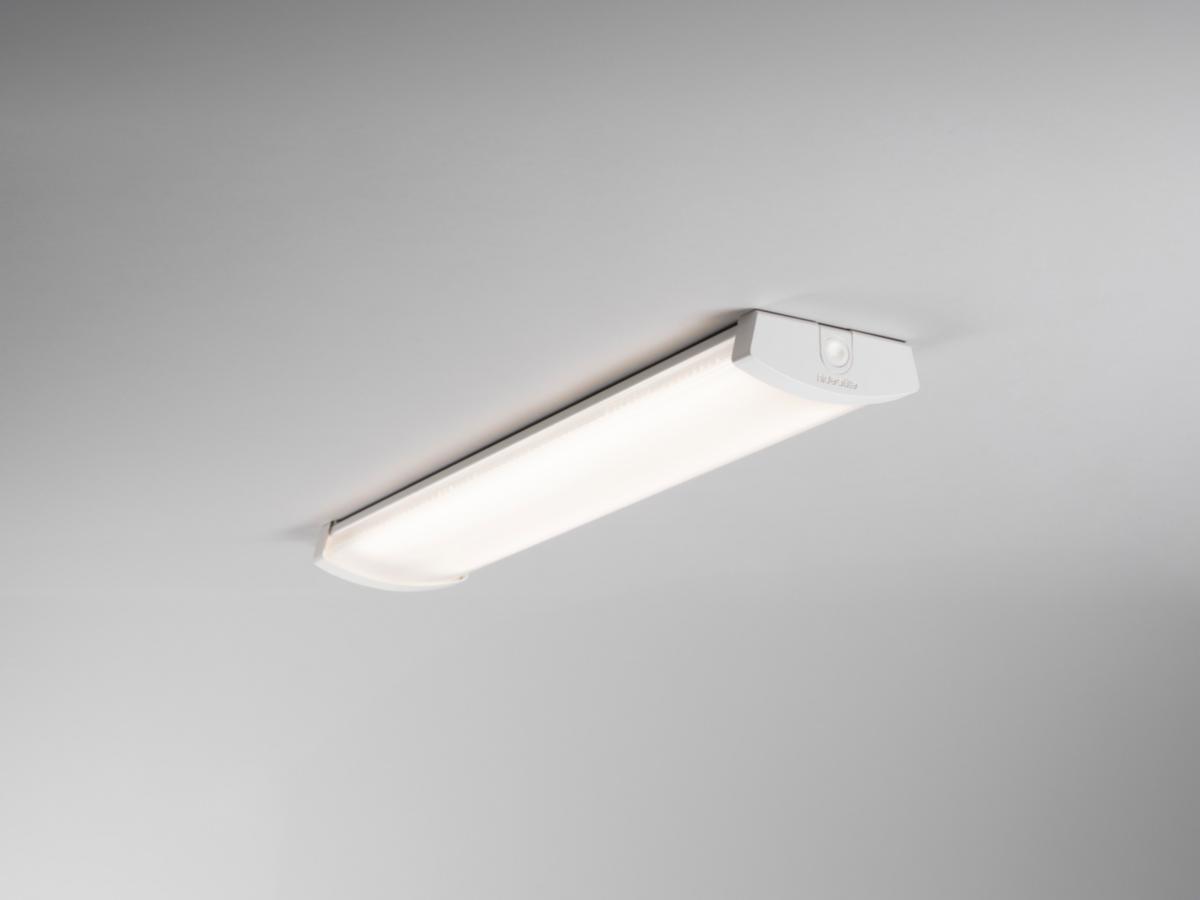

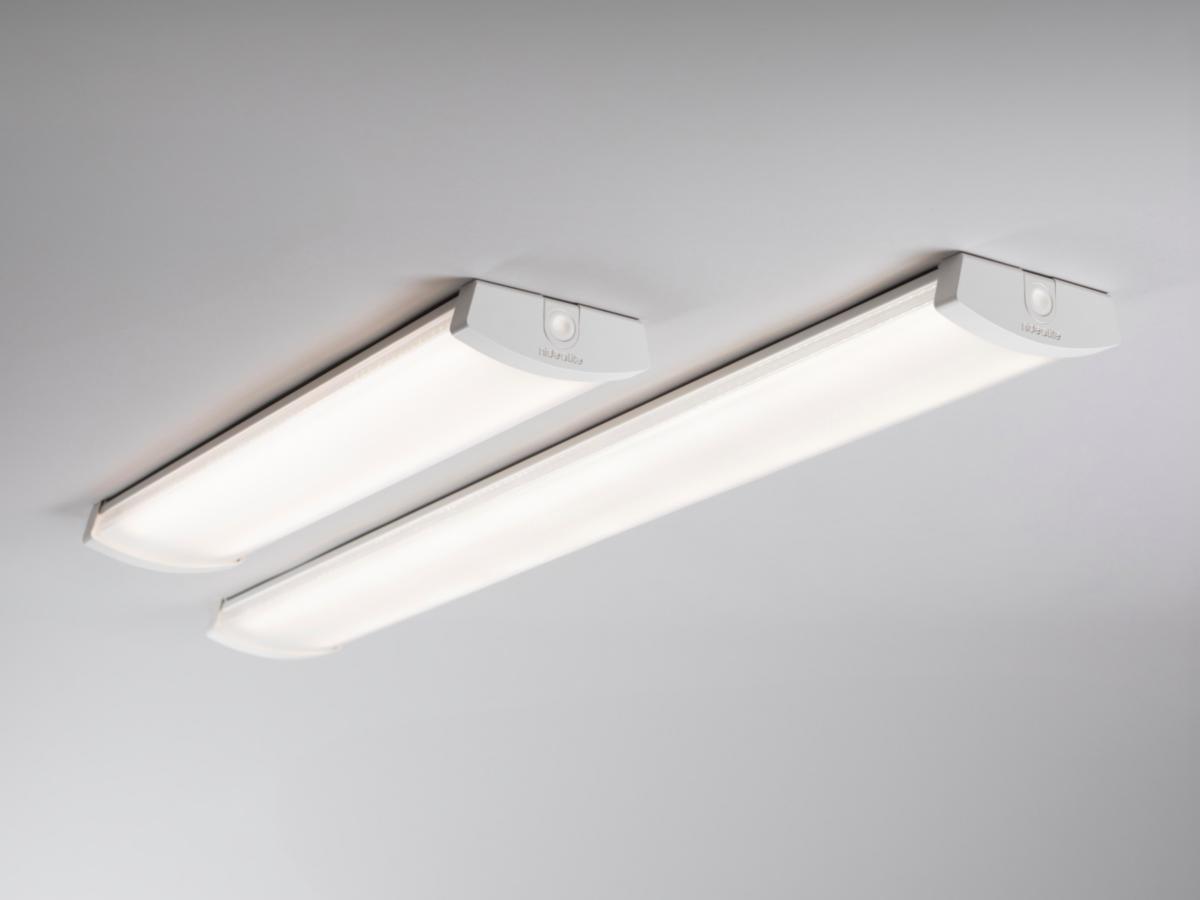

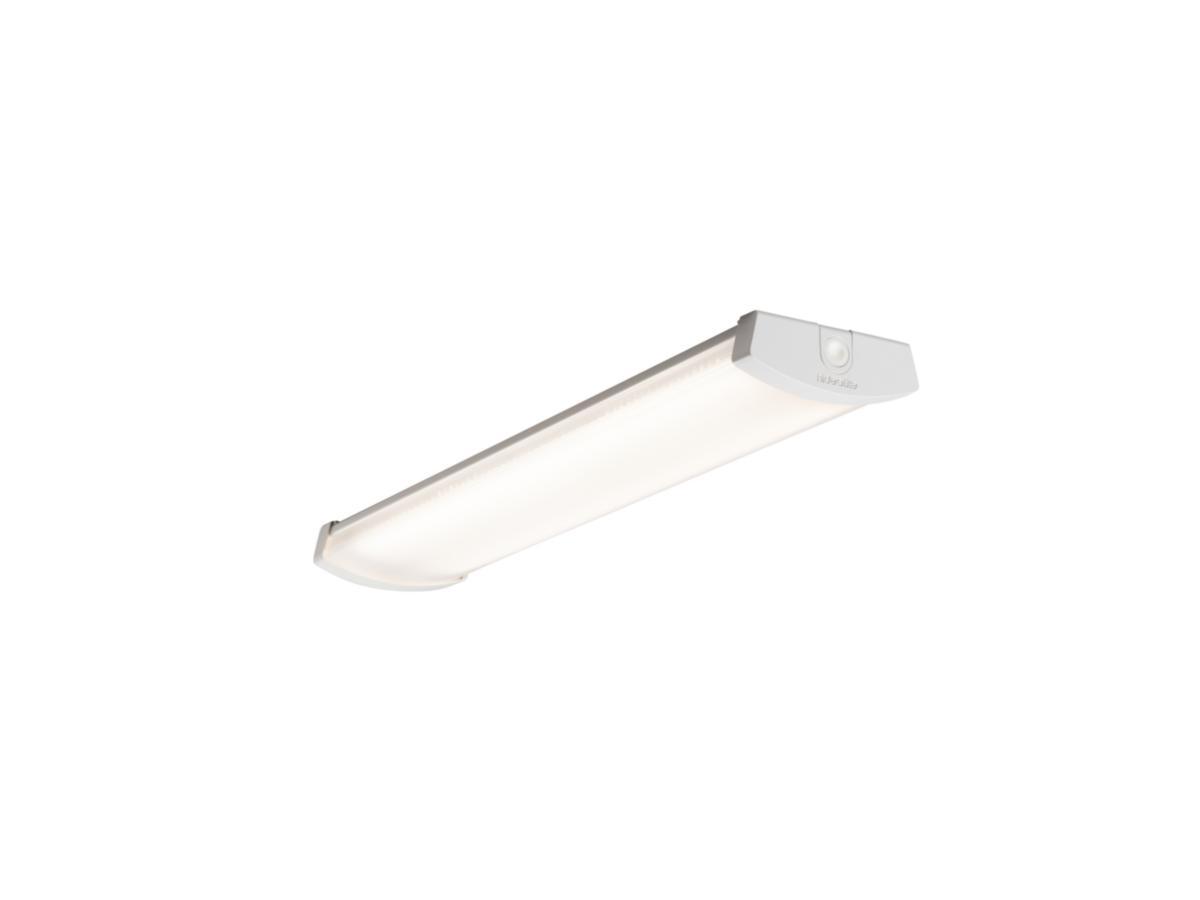

Industrial luminaire Liteline IP44 G2
Liteline G2 IP44 600
Article number: Suppl. article no:
7218583
4524
to see price and stock
Highly efficient fluorescent tube replacement with several control options. Body of white-painted sheet steel with folding patented end caps and prismatic dome of shock-resistant polycarbonate with opal film for even light distribution. Both end caps and dome made of recycled plastic. Replaceable LED and driver, possibility to choose color temperature and adjust light flow via DIP- switch. Quick terminal block at both ends for easy reconnection. Over-connection 5x2.5mm2 as standard. Liteline G2 is perfectly suited where the need for light is large and the demands on performance are high, such as production environments, garages or industrial premises.
S = Microwave sensor
SC = Sensor with corridor function
BT = Bluetooth
Nöd = Emergency light operation
CLO = Constant Light Output
S = Microwave sensor
SC = Sensor with corridor function
BT = Bluetooth
Nöd = Emergency light operation
CLO = Constant Light Output
- Article number: 7218583
- Suppl. article no: 4524
- Ean no: 7392971149240
- Material class QT1900
Technical data
- Packagin Size: 1 PCS/6 PCS
- Design: On/Off
- Max. system power: 28 W
- Rated luminous flux according to IEC 62722-2- 1: 4400 lm
- Colour temperature: 3000-4000 K
- Dimming DALI: No
- Length: 680 mm
- Width: 150 mm
- Height/depth: 50 mm
- Type of control gear: LED operating device current-controlled
- Colour of light: White
- Light distribution: Symmetric
- Degree of protection (IP): IP44
- Lamp type: LED exchangeable
- With light source: Yes
- With control gear: Yes
- Protection class according to IEC 61140: I
- Housing colour: White
- Impact strength: IK10
- Suitable for number of light sources: 1
- Number of poles: 5
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Power factor: 0.97
- Colour rendering index CRI: 80-89
- Filament test according to IEC 60695-2-11: 850 °C - 30 s
- Dimmable: No
- Housing material: Steel
- Conductor cross section: 2.5 mm²
- Light distributor: Diffuser lens/optic/panel
- Suitable for emergency lighting: No
- With protective cover: Yes
- Nominal voltage: 220-240 V
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -25-65 °C
- Reflector: None
- Beam angle: > 80° - Extreme wide beam
- Voltage type: AC
- Type of wiring: Suitable for loop-through wiring
- Colour consistency (McAdam ellipse): SDCM3
- Luminaire efficacy: 157 lm/W
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 80 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 91 %
- Total harmonic distortion (THD): 20 %
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Constant light output (CLO): No
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 20
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 40
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: A
- Nominal current: 500-800 mA
- Connection type: Push-in clamp
- REACH Date: 2023-11-24
- GWP-tot (A1-A3): 10,6 kgCO2e/ST
- REACH Information obligation: No
- Ball-proof: No
- Emergency power supply integrated: No
- Mounting method: Surface mounting
