AhlsellProductsElectricLighting 70-8372 Industrial luminairesIndustrial luminaires IP44 and accessoriesIndustrial luminaires IP44
Ledvance

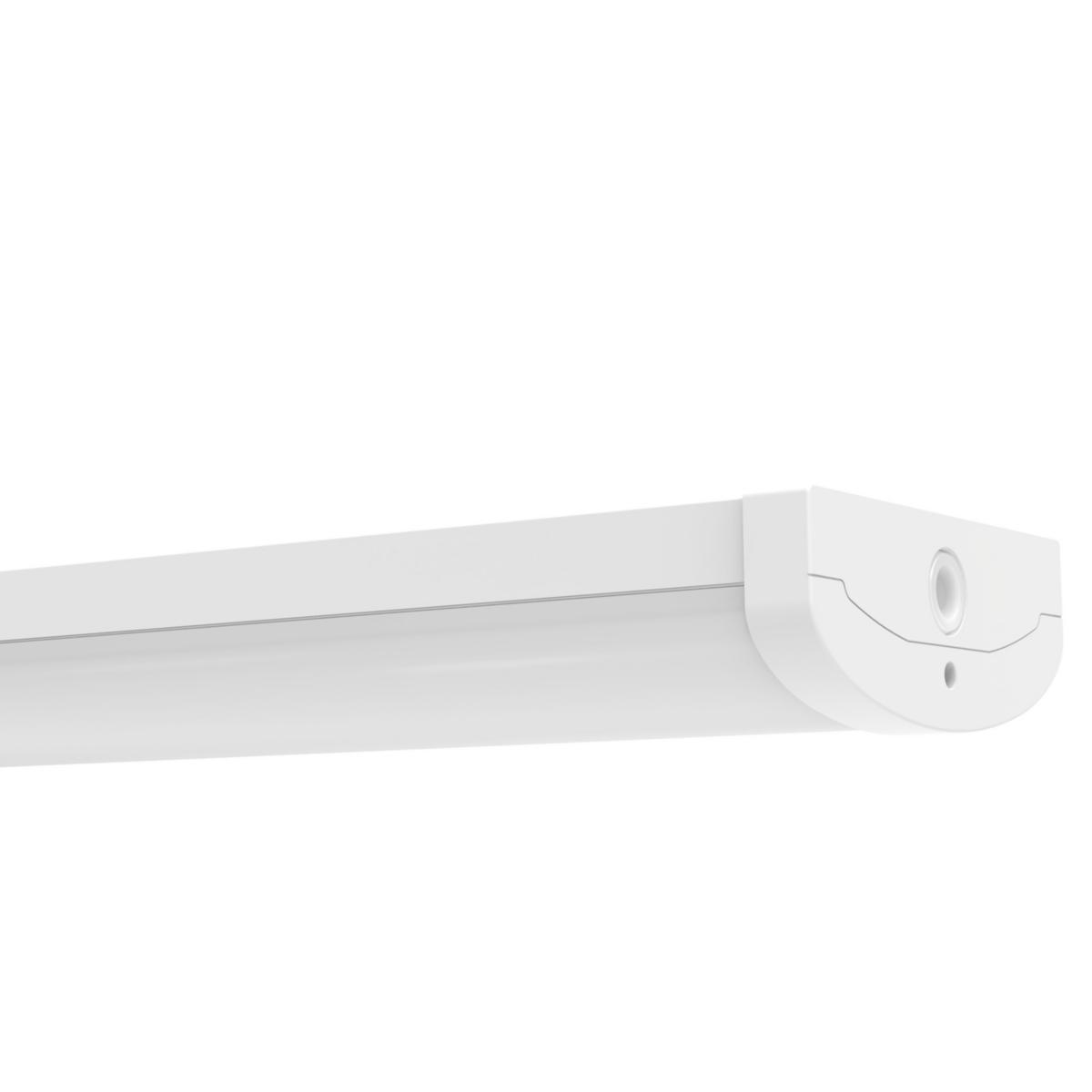

Industrial luminaire Linear Surface
LINEAR SURFACE 32W 830
Article number: Suppl. article no:
7217145
4058075733176
to see price and stock
LEDVANCE LINEAR SURFACE IP44 is an encapsulated all-round luminaire suitable for many different types of environments such as e.g. industries, commercial kitchens, garages or parking garages. Cable entry on the back of the fixture as well as at each end for easy connection. Available in lengths 600, 1200 and 1500 mm with 3000 K or 4000 K. Through cable and 5-pin terminal installed at each end. Robust luminaire housing in steel, cup and end cap in UV-resistant polycarbonate. Available as standard, DALI and with emergency light function.
- Article number: 7217145
- Suppl. article no: 4058075733176
- Ean no: 4058075733176
- Material class QT1760
Technical data
- Packagin Size: 1 PCS/4 PCS
- Max. system power: 32 W
- Rated luminous flux according to IEC 62722-2- 1: 4160 lm
- Colour temperature: 3000 K
- Dimmable: No
- Dimming DALI: No
- Dimming DALI-2: No
- With movement sensor: No
- With light sensor: No
- With light source: Yes
- Degree of protection (IP): IP44
- Length: 1176 mm
- Width: 166 mm
- Height/depth: 63 mm
- Lamp type: LED not exchangeable
- Type of wiring: Loop-through wiring included
- Protection class according to IEC 61140: I
- Suitable for ceiling mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: Yes
- Suitable for built-in mounting: No
- Suitable for workplace according to EN 12464-1: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Colour rendering index CRI: 80-89
- Material cover: Plastic matt/satinized
- Covering of the luminaire with thermally insulating material possible: No
- Housing colour: White
- Housing material: Steel
- With control gear: Yes
- Light distribution: Symmetric
- Colour of light: White
- Light outlet: Direct
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- With air slots: No
- Nominal voltage: 220-240 V
- Type of grid: Matt
- Impact strength: IK08
- Voltage type: AC
- Type of control gear: LED operating device current-controlled
- Beam angle: > 80° - Extreme wide beam
- Dimming phase cut-off (trailing edge): No
- Operation by Bluetooth: No
- Number of poles: 3
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.9
- Photobiological safety according to EN 62471: RG0
- Dimming phase cut-on (leading edge): No
- Colour consistency (McAdam ellipse): SDCM3
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Light distributor: Diffuser lens/optic/panel
- Luminaire efficacy: 130 lm/W
- Rated lifetime L70/B50 at 25 °C: 70000 h
- Rated ambient temperature according to IEC 62722-2-1: -10-40 °C
- Dimming Touch and Dim: No
- Surface protection housing: Plastic-coated
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 33
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 33
- IFTTT support available: No
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: Not required
- Compatible with Casambi: No
- Suitable for wall mounting: Yes
- Nominal current: 150 mA
- Connection type: Push-in clamp
- REACH Date: 2022-06-01
- REACH contains candidate substances: Bly
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- REACH Information obligation: Yes
- Emergency power supply integrated: No
