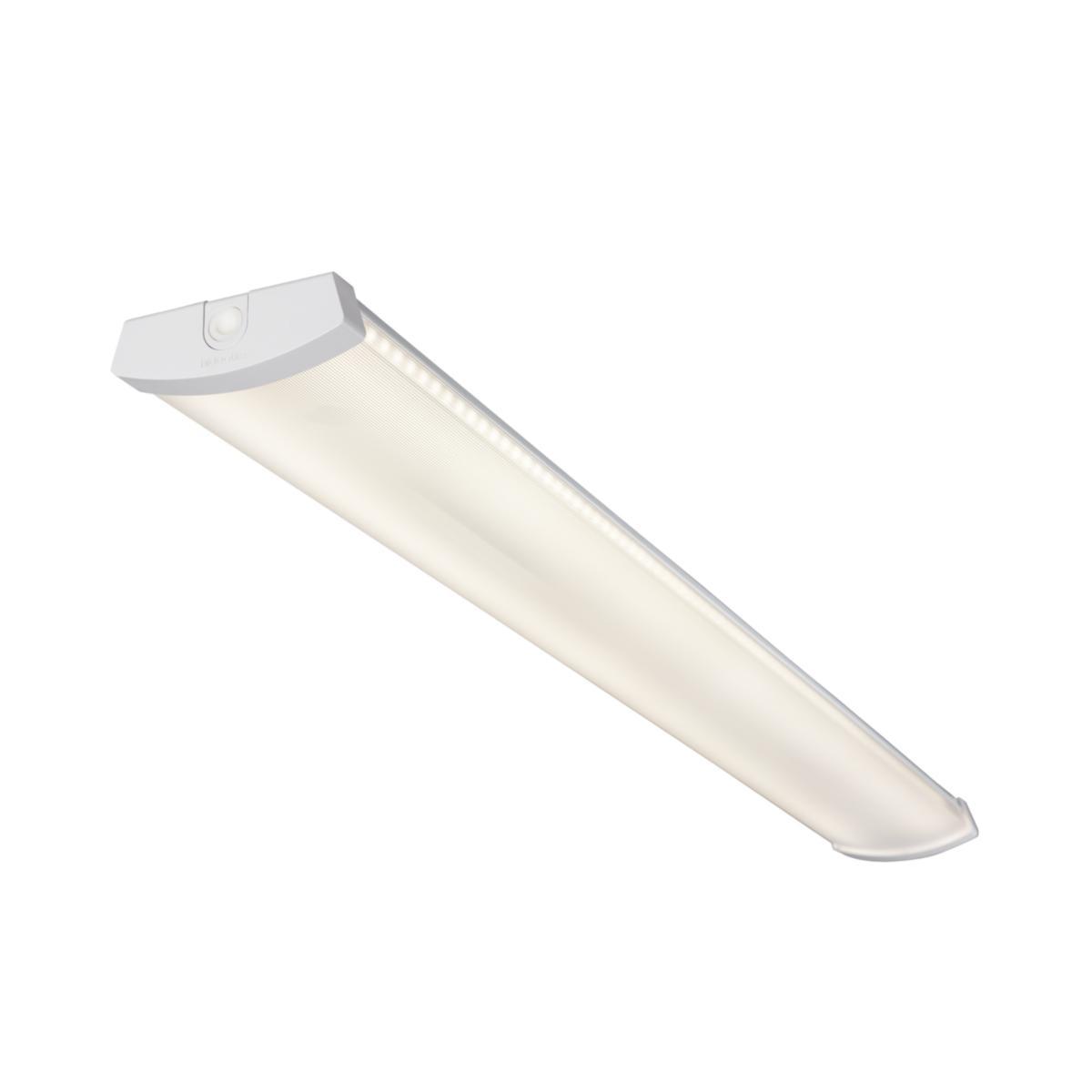

Industrial light fixture LiteLine, Hide-a-Lite
FIXT LITELINE BASIC IP44 830 LITELINE BASIC
Article number: Suppl. article no:
7215547
7215547
Normally in stock
to view the store status of the store
to see price and stock


IP44 luminaire with high luminous flux and very good efficiency, up to 136lm/W without opal film. Frame of white lacquered sheet steel with folding plastic end caps and prismatic cover of acrylic with opal film for even light distribution. Liteline is available in two lengths 600 mm and 1200 mm and two light colors, such as On/Off, DALI/Push or Sensor. 5-pin quick terminal block for further connection, one lead-through in each end and two in the middle, one of which is centered. The 1200 mm version can be easily adjusted to a higher luminous flux. ÖK= has a quick terminal at each end.
- Article number: 7215547
- Suppl. article no: 7215547
- Ean no: 7392971140247
- Material class QT190A
Technical data
- Packagin Size: 1 ST/8 ST/8 ST/72 ST
- Design: On/Off
- Max. system power: 38 W
- Rated luminous flux according to IEC 62722-2- 1: 4480 lm
- Colour temperature: 3000 K
- Dimming DALI: No
- Length: 1175 mm
- Width: 150 mm
- Height/depth: 50 mm
- Type of control gear: LED operating device current-controlled
- Colour of light: White
- Light distribution: Symmetric
- Degree of protection (IP): IP44
- Lamp type: LED not exchangeable
- With light source: Yes
- With control gear: Yes
- Protection class according to IEC 61140: I
- Housing colour: White
- Impact strength: IK10
- Suitable for number of light sources: 1
- Number of poles: 5
- Dimming phase cut-off (trailing edge): No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.96
- Dimming phase cut-on (leading edge): No
- Colour rendering index CRI: 80-89
- Filament test according to IEC 60695-2-11: 850 °C - 30 s
- Dimmable: No
- Housing material: Steel
- Lamp holder: None
- Conductor cross section: 2.5 mm²
- Light distributor: Diffuser lens/optic/panel
- Suitable for emergency lighting: No
- Material reflector: Without reflector
- With protective cover: Yes
- Nominal voltage: 220-240 V
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
- Reflector: None
- Beam angle: > 80° - Extreme wide beam
- Voltage type: AC
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Colour consistency (McAdam ellipse): SDCM4
- Luminaire efficacy: 118 lm/W
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 76 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 28
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 45
- Exchangeable control gear: Yes
- Nominal current: 600-800 mA
- Connection type: Push-in clamp
- LED nominal current at constant current: 600-800 mA
- REACH Date: 2022-06-01
- Ball-proof: No
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Emergency power supply integrated: No
- Mounting method: Surface mounting
