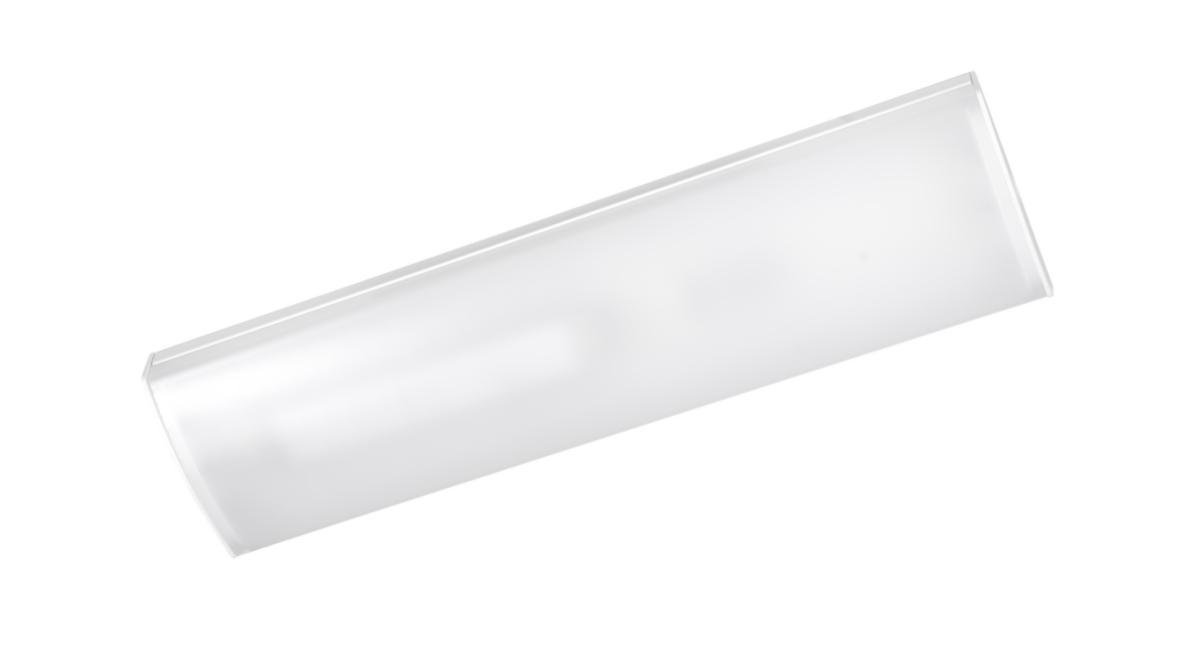

Industrial luminaire Naiad LED G3
NAIAD G3 L602 840
Article number: Suppl. article no:
7213400
25G3 L602 840
to see price and stock

Naiad G3 LED is a low-built, all-round luminaire equipped with an LED light source. The luminaire is suitable for many different types of environments, for example industry and parking garages.
The fixture can be advantageously used in environments with a temperature of -20° – +35°
The Naiad G3 LED is intended for installation in dense ceilings. The luminaire creates good general lighting through an opal dome with controlled glare.
Naiad G3 LED Dali – Can be connected as Dali or alternatively as impulse control/Switch.
Luminaire body:
Frame and mounting plate made of zinc-coated sheet metal with white powder coating. End caps made of white ASA plastic.
Anti-glare:
Extruded smooth prismatic opal cup, in acrylic plastic.
Connection:
Cable entry in the ends and two entries towards the ceiling on the back of the luminaire.
Mounting:
On the ceiling, on the wall or on a rope.
The accompanying gasket must be mounted at the keyhole to obtain protection class IP44.
The fixture can be advantageously used in environments with a temperature of -20° – +35°
The Naiad G3 LED is intended for installation in dense ceilings. The luminaire creates good general lighting through an opal dome with controlled glare.
Naiad G3 LED Dali – Can be connected as Dali or alternatively as impulse control/Switch.
Luminaire body:
Frame and mounting plate made of zinc-coated sheet metal with white powder coating. End caps made of white ASA plastic.
Anti-glare:
Extruded smooth prismatic opal cup, in acrylic plastic.
Connection:
Cable entry in the ends and two entries towards the ceiling on the back of the luminaire.
Mounting:
On the ceiling, on the wall or on a rope.
The accompanying gasket must be mounted at the keyhole to obtain protection class IP44.
- Article number: 7213400
- Suppl. article no: 25G3 L602 840
- Ean no: 7330139252463
- Material class QT1620
Technical data
- Packagin Size: 1 ST/72 ST/72 ST
- Type: G3
- Max. system power: 16 W
- Rated luminous flux according to IEC 62722-2- 1: 2180 lm
- Colour temperature: 4000 K
- Dimmable: No
- Dimming DALI: No
- With movement sensor: No
- With light sensor: No
- With light source: Yes
- Degree of protection (IP): IP44
- Length: 602 mm
- Width: 159 mm
- Height/depth: 46 mm
- Lamp type: LED exchangeable
- Suitable for number of light sources: 2
- Type of wiring: Suitable for loop-through wiring
- Protection class according to IEC 61140: I
- Suitable for ceiling mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Suitable for workplace according to EN 12464-1: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Colour rendering index CRI: 80-89
- Material cover: Plastic, opal
- Covering of the luminaire with thermally insulating material possible: Yes
- Housing colour: White
- Housing material: Steel
- With control gear: Yes
- Light distribution: Symmetric
- Colour of light: White
- Light outlet: Direct
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- With air slots: No
- Nominal voltage: 220-240 V
- Type of grid: None
- Impact strength: IK06
- Voltage type: AC
- Type of control gear: LED operating device current-controlled
- Beam angle: > 80° - Extreme wide beam
- Dimming phase cut-off (trailing edge): No
- Operation by Bluetooth: No
- Number of poles: 5
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): No
- Colour consistency (McAdam ellipse): SDCM3
- Conductor cross section: 1.5 mm²
- Luminaire efficacy: 136 lm/W
- Rated ambient temperature according to IEC 62722-2-1: -20-35 °C
- Dimming Touch and Dim: No
- Surface protection housing: Powder coating
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 85 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 55
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 70
- IFTTT support available: No
- Exchangeable control gear: Yes
- Suitable for wall mounting: Yes
- Nominal current: 300 mA
- Connection type: Other
- REACH Date: 2023-06-19
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
