Industrial luminaire Naiad LED RS, Exactor
NAIAD G3 L602 840 RS
Article number: Suppl. article no:
7213362
25G3 L602 840 RS
to see price and stock

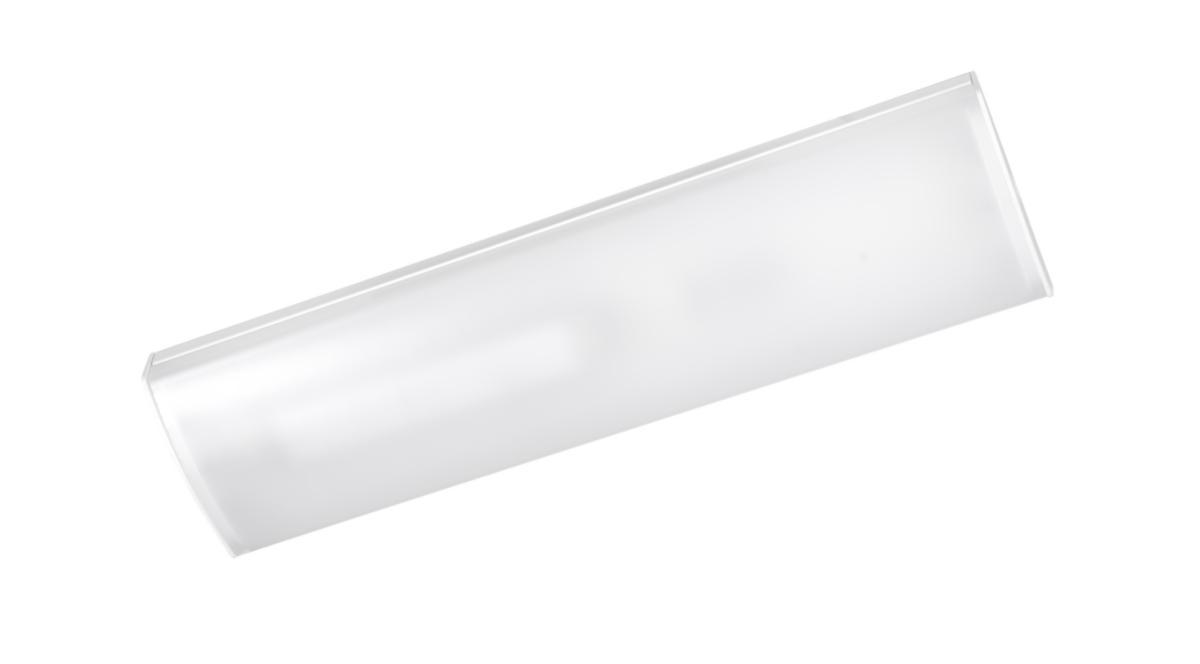

Low-built all-round luminaire with Motion sensor. H = 46 mm. Opal cup. IP 44. Armaturlumen 4363 lm. Meets requirements for D-marking. Lifespan: L80B50, 68000h @ Take 25 ° C. Frame of white zinc-plated sheet metal. Gables of white ASA plastic. Equipped with keyholes for easier ceiling mounting. For installation in room temperatures from -20 ° - + 35 °.
- Article number: 7213362
- Suppl. article no: 25G3 L602 840 RS
- Ean no: 7330139252340
- Material class QT162A
Technical data
- Packagin Size: 1 ST/72 ST/72 ST
- Type: NAIAD LED G3 RS
- Max. system power: 16 W
- Rated luminous flux according to IEC 62722-2- 1: 2180 lm
- Colour temperature: 4000 K
- Dimmable: No
- With movement sensor: Yes
- With light sensor: Yes
- With light source: Yes
- Degree of protection (IP): IP44
- Length: 602 mm
- Width: 159 mm
- Height/depth: 46 mm
- Lamp type: LED exchangeable
- Suitable for number of light sources: 2
- Type of wiring: Suitable for loop-through wiring
- Protection class according to IEC 61140: I
- Suitable for ceiling mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Suitable for workplace according to EN 12464-1: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Colour rendering index CRI: 80-89
- Material cover: Plastic, opal
- Covering of the luminaire with thermally insulating material possible: Yes
- Housing colour: White
- Housing material: Steel
- With control gear: Yes
- Light distribution: Symmetric
- Colour of light: White
- Light outlet: Direct
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- With air slots: No
- Nominal voltage: 220-240 V
- Type of grid: None
- Impact strength: IK06
- Voltage type: AC
- Type of control gear: LED operating device current-controlled
- Beam angle: > 80° - Extreme wide beam
- Dimming phase cut-off (trailing edge): No
- Operation by Bluetooth: No
- Number of poles: 5
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): No
- Conductor cross section: 1.5 mm²
- Luminaire efficacy: 136 lm/W
- Rated ambient temperature according to IEC 62722-2-1: -20-35 °C
- Dimming Touch and Dim: No
- Surface protection housing: Powder coating
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 85 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 55
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 70
- IFTTT support available: No
- Exchangeable control gear: Yes
- Suitable for wall mounting: Yes
- Nominal current: 300 mA
- Connection type: Other
- REACH Date: 2023-06-19
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
