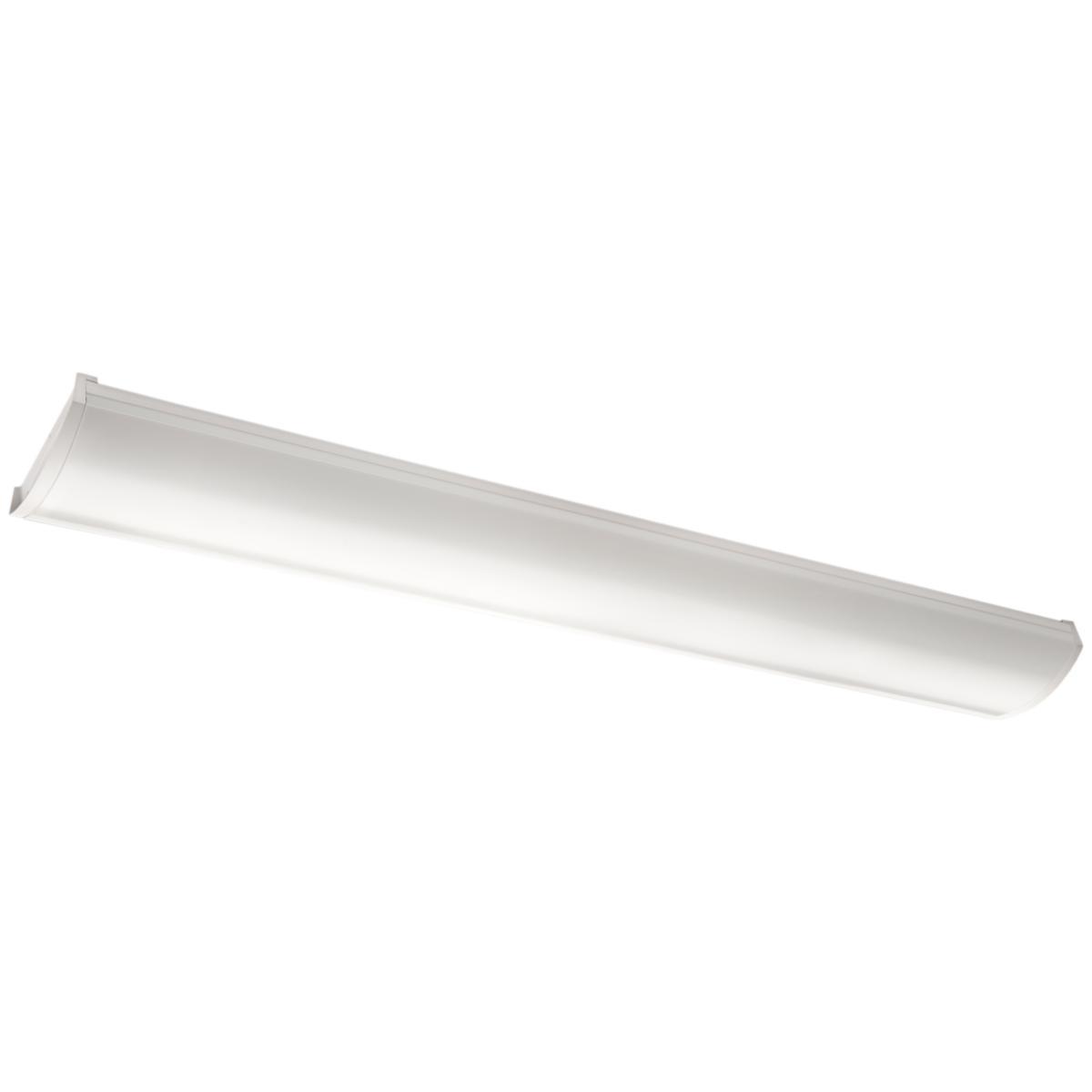

Industrial luminaire Wave LED, SG-Armaturen - IND LUM IP44 32W 3819LM 3000K WAVE
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/30/01/ProductImage35203001.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/30/02/ProductImage35203002.jpg
SG Armaturen

Industrial luminaire Wave LED, SG-Armaturen

IND LUM IP44 32W 3819LM 3000K WAVE
Article number:
7011197
Suppl. article no:
111270





 to see price and stock
Produkten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.

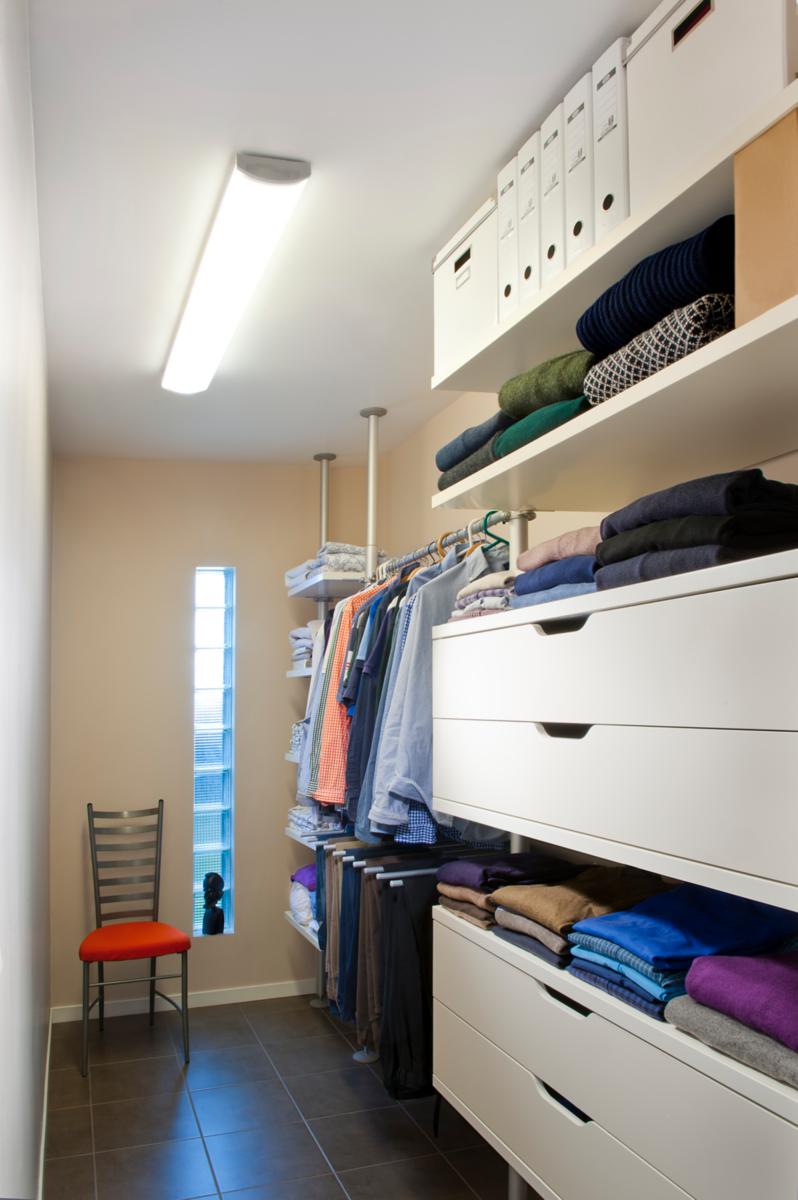

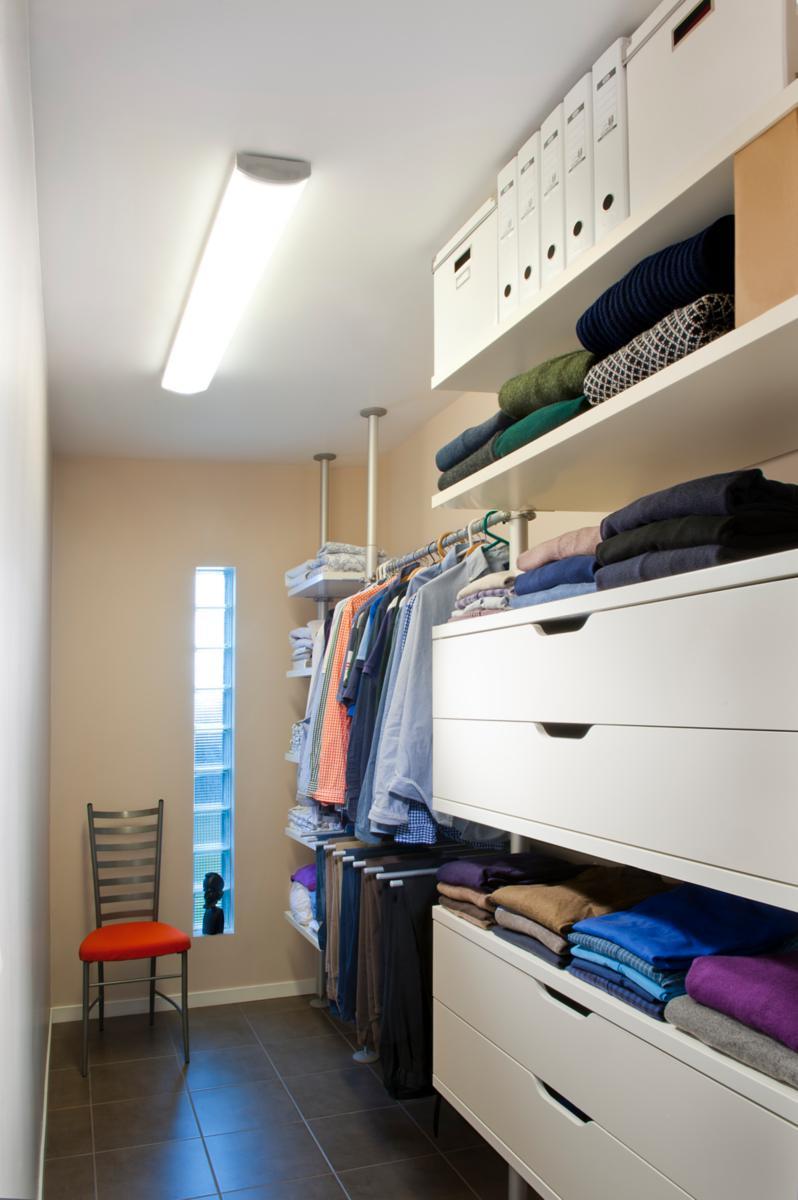

Wave LED is an energy-efficient IP44-rated luminaire for use in corridors, archive rooms, warehouses and similar spaces. Luminaire housing made of aluminum and cup made of acrylic (polycarbonate is available as an option). Quick installation and switching make Wave the obvious choice in new buildings and when replacing old luminaires. Wave is available in different lengths, with different light flows and with or without sensor control.
  • Article number:
    7011197
  • Suppl. article no:
    111270
  • Ean no:
    7021981112707
  • Material class
    QT1740
Technical data
  • Packagin Size: 1 ST/4 ST/40 ST/52 ST
  • Max. system power: 31 W
  • Rated luminous flux according to IEC 62722-2- 1: 4000 lm
  • Colour temperature: 3000 K
  • Housing colour: White
  • Dimming DALI: No
  • Type of control gear: LED operating device current-controlled
  • Dimming with push-button: No
  • Length: 920 mm
  • Width: 151 mm
  • Height/depth: 54 mm
  • With movement sensor: No
  • Degree of protection (IP): IP44
  • Impact strength: IK05
  • Protection class according to IEC 61140: I
  • Colour consistency (McAdam ellipse): SDCM3
  • Housing material: Aluminium
  • Nominal voltage: 220-240 V
  • Voltage type: AC
  • With control gear: Yes
  • Suitable for light line configuration: No
  • Rated lifetime L70/B50 at 25 °C: 50000 h
  • Rated life time L80/B10 at 25 °C: 0 h
  • Rated ambient temperature according to IEC 62722-2-1: 25 °C
  • Colour rendering index CRI: 80-89
  • Material cover: Plastic, opal
  • Luminous flux adjustable: No
  • Built-in width: 0 mm
  • Lamp type: LED not exchangeable
  • Lamp holder: Other
  • Suitable for built-in mounting: No
  • Suitable for emergency lighting: No
  • Suitable for suspended mounting: No
  • Outer diameter: 0 mm
  • Built-in length: 0 mm
  • Suitable for surface mounting: Yes
  • With light source: Yes
  • With light sensor: No
  • Suitable for ceiling mounting: Yes
  • Type of grid: None
  • Beam angle: > 80° - Extreme wide beam
  • Suitable for workplace according to EN 12464-1: No
  • Covering of the luminaire with thermally insulating material possible: No
  • Number of poles: 3
  • Conductor cross section: 2.5 mm²
  • Dimming phase cut-off (trailing edge): No
  • Dimming mains voltage modulation: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming RF: No
  • Dimming Zigbee: No
  • Dimming potentiometer (integrated): No
  • Dimming programmable: No
  • Dimming manufacturer's proprietary system: No
  • Dimming Touch and Dim: No
  • Dimming phase cut-on (leading edge): No
  • Dimmable: No
  • Filament test according to IEC 60695-2-11: None
  • Colour of light: White
  • Luminaire efficacy: 129 lm/W
  • Suitable for lamp power: 31 W
  • Degree of protection (NEMA): Other
  • Type of wiring: Suitable for loop-through wiring
  • Operation by Bluetooth: No
  • Photobiological safety according to EN 62471: Other
  • Beam angle adjustable: No
  • Compatible with Amazon Alexa: No
  • Compatible with Apple HomeKit: No
  • Compatible with Google Assistant: No
  • Max. number of luminaires per miniature circuit breaker B16 (MCB): 23
  • Max. number of luminaires per miniature circuit breaker C16 (MCB): 36
  • IFTTT support available: No
  • Exchangeable control gear: Yes
  • Surface protection housing: Lacquered
  • Light distribution: Symmetric
  • Light distributor: Other
  • Built-in diameter: 0 mm
  • Suitable for wall mounting: Yes
  • Built-in height/depth: 0 mm
  • Connection type: Push-in clamp
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
  • Power factor: 0.95
  • Light outlet: Direct
  • Suitable for number of light sources: 1
  • With air slots: No
  • Rated life time L90/B10 at 25 °C: 0 h
  • REACH Date: 2022-11-09
  • REACH contains candidate substances: Bly
  • Lowest energy efficiency class of the exchangeable lamp: A++
  • Dimming LineSwitch: No
  • Dimming Sine Wave Reduction: No
  • Highest energy efficiency class of the exchangeable lamp: A++
  • Energy efficiency class of the provided exchangeable built-in lamp: A++
  • Dimming GPRS: No
  • Energy efficiency class of the built-in lamp: A++, A+, A (LED)
  • REACH Information obligation: Yes
  • Emergency power supply integrated: No
  • Dimming depending on control gear: No
