Industrial luminaire Low Bay 1200

LOW BAY 1200 73W 840 W

Article number:

7216970

Suppl. article no:

4058075676107

‌
‌
‌

‌
‌

to see price and stock

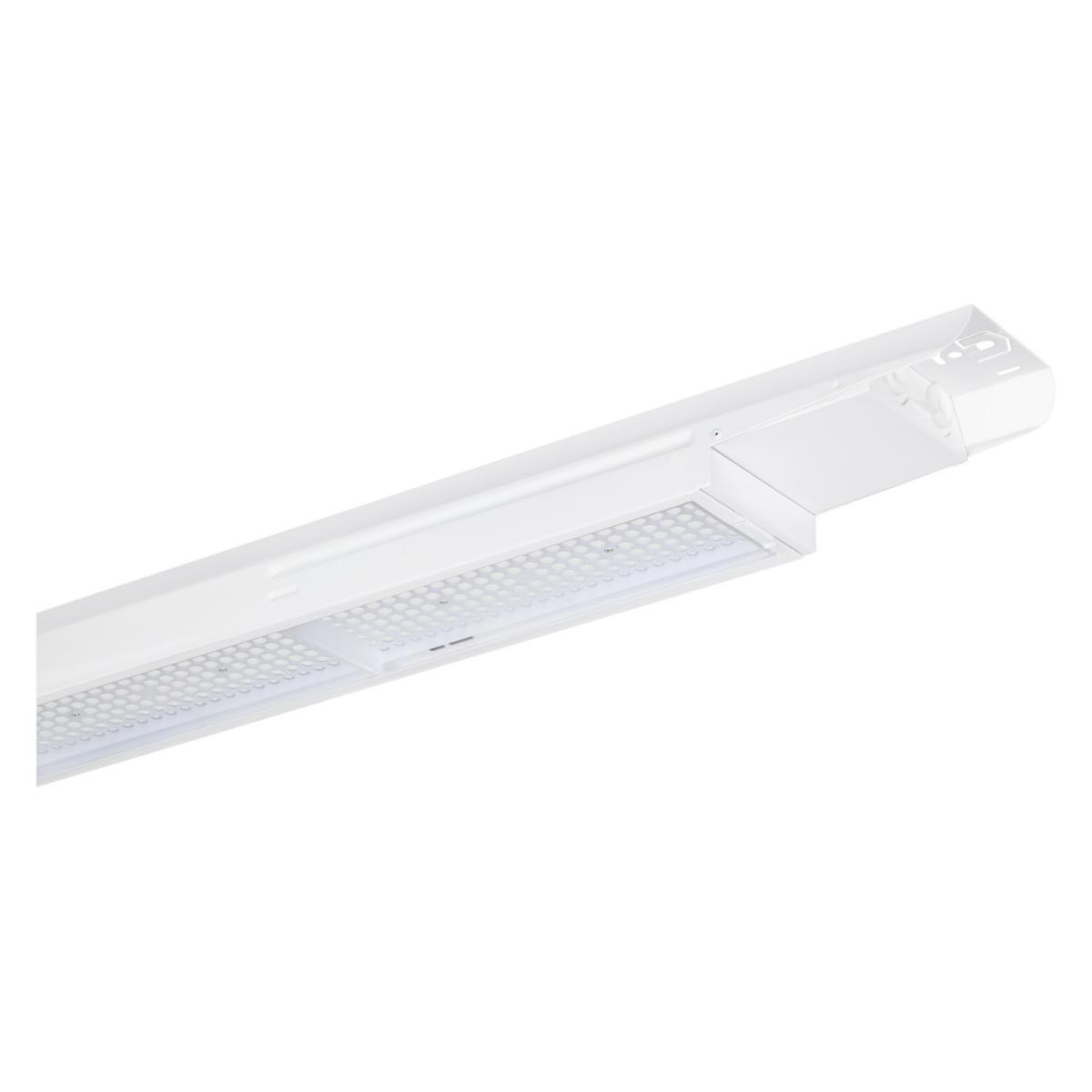

LEDVANCE LOW BAY FLEX is a luminaire for ceiling heights between 4 and 10 meters in warehouses, logistics halls, industries and grocery stores. Simple installation with various mounting options. High efficiency up to 160 lm/w and long life of up to 100,000 hours (L80). Tool-free opening of the end caps without screws with two cable entries at each end. 5- (on/off) and 7-pole (DALI) through connection. Available in two lengths and 4 effects as well as versions with DALI. 4 different spreading angles N – NARROW (60°) W - WIDE (90°) VW – VERY WIDE (120°) and OV – OVAL (40°X90°). Separate accessories: Protective grid to make the luminaire ball-proof, mounting brackets for angled mounting and pendant kit for suspended mounting, adjustable pendant length up to 5 meters. Luminaire housing in steel with matt finish in white color and diffuser in PMMA. 5 year warranty.

Article number:
7216970
Copy to clipboard
Suppl. article no:
4058075676107
Copy to clipboard
Ean no:
4058075676107
Copy to clipboard
Material class
QT1910
Copy to clipboard

Technical data

Packagin Size: 1 PCS/3 PCS
Design: 90°
Max. system power: 73 W
Rated luminous flux according to IEC 62722-2- 1: 11315 lm
Colour temperature: 4000 K
Dimming DALI: No
Dimming DALI-2: No
Length: 1236 mm
Width: 115 mm
Beam angle: > 80° - Extreme wide beam
Housing colour: White
Degree of protection (IP): IP23
Dimming with push-button: No
Height/depth: 65 mm
Voltage type: AC
Protection class according to IEC 61140: I
Colour consistency (McAdam ellipse): SDCM3
Housing material: Steel
Type of control gear: Electronic transformer
Nominal voltage: 220-240 V
With control gear: Yes
Suitable for light line configuration: No
Colour rendering index CRI: 80-89
Material cover: Plastic, transparent
Lamp type: LED not exchangeable
Light outlet: Direct
Suitable for built-in mounting: No
Suitable for emergency lighting: No
Suitable for suspended mounting: Yes
Suitable for surface mounting: Yes
With light source: Yes
With light sensor: No
With air slots: No
With movement sensor: No
Suitable for ceiling mounting: Yes
Type of grid: None
Impact strength: IK08
Suitable for workplace according to EN 12464-1: No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
Covering of the luminaire with thermally insulating material possible: No
Number of poles: 5
Dimming phase cut-off (trailing edge): No
Dimming mains voltage modulation: No
Dimming 0-10 V: No
Dimming 1-10 V: No
Dimming DMX: No
Dimming DSI: No
Dimming RF: No
Dimming Zigbee: No
Dimming potentiometer (integrated): No
Dimming programmable: No
Dimming manufacturer's proprietary system: No
Power factor: 0.9
Dimming phase cut-on (leading edge): No
Filament test according to IEC 60695-2-11: 650 °C - 30 s
Dimmable: No
Colour of light: White
Luminaire efficacy: 155 lm/W
Rated lifetime L70/B50 at 25 °C: 100000 h
Rated ambient temperature according to IEC 62722-2-1: -25-50 °C
Dimming Touch and Dim: No
Type of wiring: Loop-through wiring included
Operation by Bluetooth: No
Photobiological safety according to EN 62471: RG1
Beam angle adjustable: No
Colour of light adjustable: No
Compatible with Amazon Alexa: No
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Constant light output (CLO): No
Luminous flux adjustable: No
Max. number of luminaires per miniature circuit breaker B16 (MCB): 17
Max. number of luminaires per miniature circuit breaker C16 (MCB): 22
IFTTT support available: No
Exchangeable control gear: No
Light distribution: Symmetric
Light distributor: Diffuser lens/optic/panel
Suitable for wall mounting: No
Nominal current: 320 mA
Connection type: Push-in clamp
REACH Date: 2022-06-01
Dimming LineSwitch: No
Dimming Sine Wave Reduction: No
REACH Information obligation: No
Emergency power supply integrated: No
