SG Armaturen

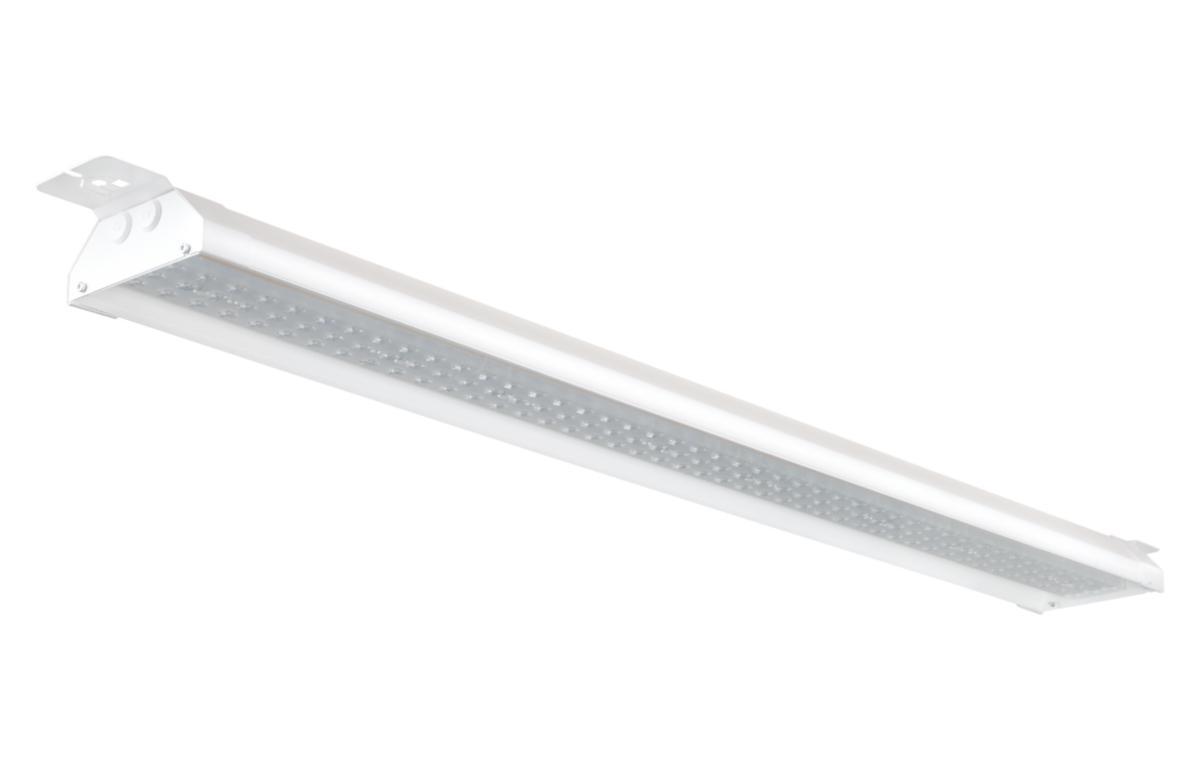

Industrial luminaire Arena
ARENA 1270 11700LM M 4K
Article number: Suppl. article no:
7213934
8246092476
to see price and stock

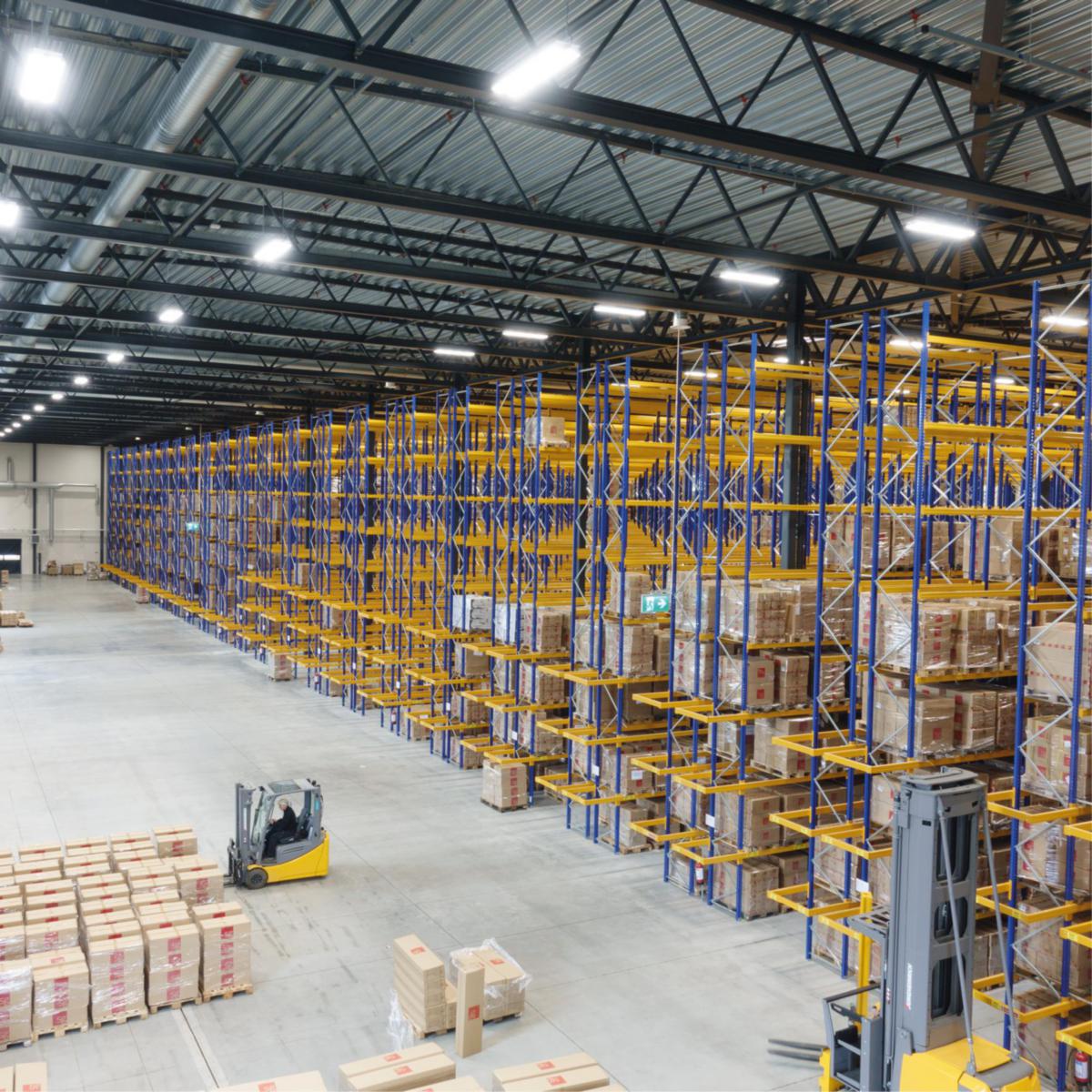

Arena is an energy-efficient surface-mounted IP23 luminaire for industrial and warehousing applications. The luminaire is easy to install with hinge cables, and it can be mounted directly on the ceiling (screws) or with hooks for horizontal rope mounting. Arena is available in two lengths and with three different light distributions and lumen flows from 9000-23000 lm. Connection in plug terminal 5x2x2.5 mm² at each end and connection.
- Article number: 7213934
- Suppl. article no: 8246092476
- Ean no: 5703821174473
- Material class QT1740
Technical data
- Packagin Size: 1 ST/50 ST
- Type: Arena 1200
- Max. system power: 79 W
- Rated luminous flux according to IEC 62722-2- 1: 11830 lm
- Colour temperature: 4000 K
- Length: 1269 mm
- Width: 139 mm
- Height/depth: 57 mm
- Dimming DALI: No
- Beam angle: 41-80° - Wide beam
- Light distribution: Double asymmetric
- Type of control gear: LED operating device current-controlled
- Colour of light: White
- Suitable for lamp power: 79 W
- Degree of protection (IP): IP23
- Lamp type: LED not exchangeable
- With light source: Yes
- With control gear: Yes
- Protection class according to IEC 61140: I
- Housing colour: White
- Impact strength: IK08
- Suitable for number of light sources: 1
- Number of poles: 5
- Dimming phase cut-off (trailing edge): No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Built-in length: 0 mm
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): No
- Colour rendering index CRI: 80-89
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Built-in width: 0 mm
- Dimmable: No
- Housing material: Steel
- Lamp holder: None
- Conductor cross section: 2.5 mm²
- Light distributor: Focal lens
- Suitable for emergency lighting: No
- Suitable for auxiliary lamp: No
- Material reflector: Other
- With protective cover: Yes
- Nominal voltage: 220-240 V
- Rated lifetime L70/B50 at 25 °C: 0 h
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Reflector: Other
- Degree of protection (NEMA): Other
- Voltage type: AC
- Dimming Touch and Dim: No
- Type of wiring: Loop-through wiring included
- Outer diameter: 0 mm
- Colour consistency (McAdam ellipse): SDCM3
- Luminaire efficacy: 150 lm/W
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 80 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 0 %
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 20 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 0 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 13
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 21
- Exchangeable control gear: No
- Built-in diameter: 0 mm
- Connection type: Push-in clamp
- Rated life time L90/B10 at 25 °C: 70000 h
- REACH Date: 2022-08-12
- Built-in height/depth: 0 mm
- REACH contains candidate substances: Bly
- Lowest energy efficiency class of the exchangeable lamp: A++
- Ball-proof: No
- Highest energy efficiency class of the exchangeable lamp: A++
- Energy efficiency class of the provided exchangeable built-in lamp: A++
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: Yes
- Emergency power supply integrated: No
- Mounting method: Surface mounting
