I-VALO

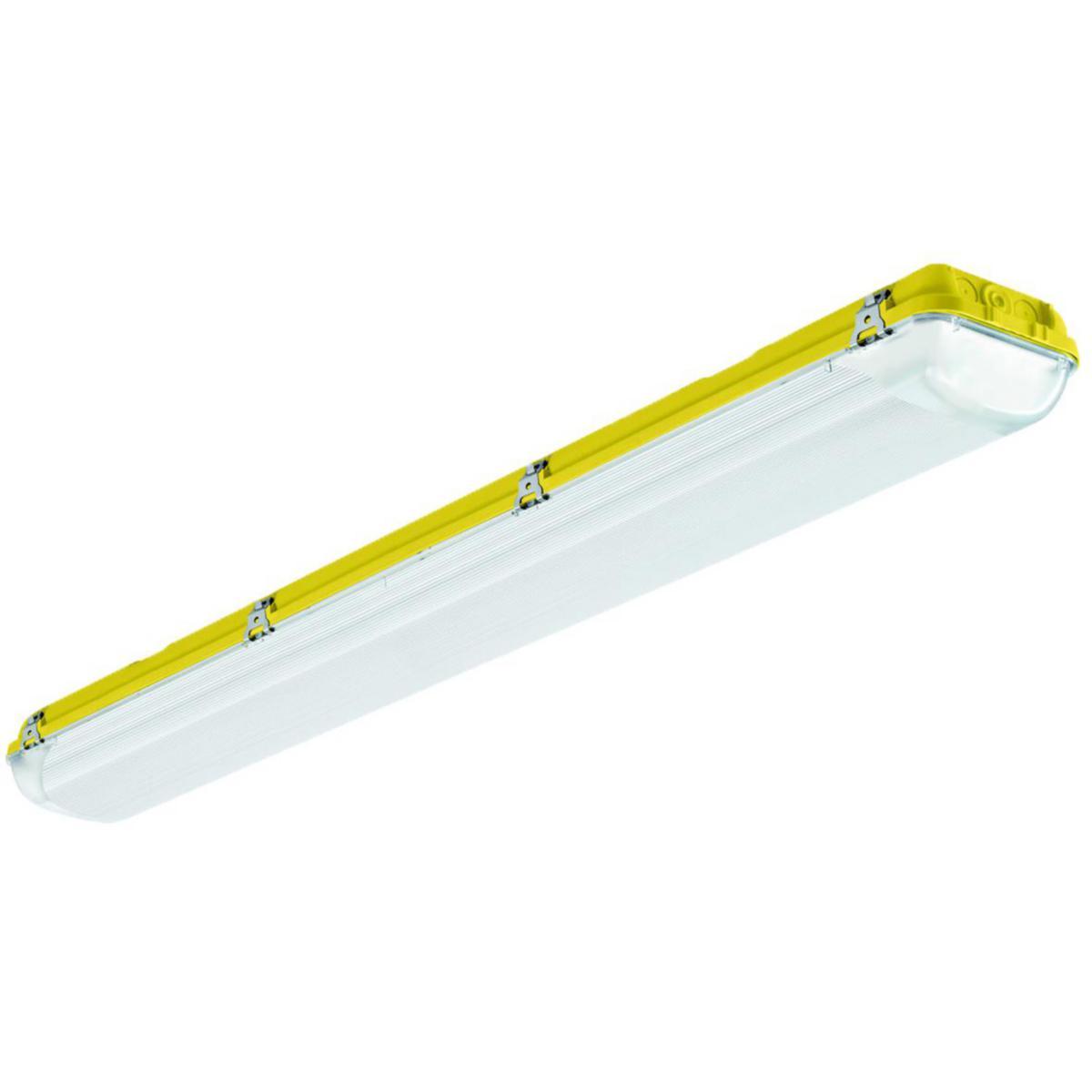

EX Industrial luminaire ACQUEX, I-Valo
21W. 2500LM. ZON 2.22 ACQUEX LED-M 600
Article number: Suppl. article no:
7214758
ACQUEX LED-M 600
to see price and stock
EX-rated LED luminaire approved for Zone 2 & 22, II3G Ex nA IIC T6 II3 G Ex nA IIC T6Gc, D Ex t II 3 D. -25 ° C + 40 ° C, incl. roof bracket and gland.
- Article number: 7214758
- Suppl. article no: ACQUEX LED-M 600
- Material class QT1890
Technical data
- Max. system power: 21 W
- Rated luminous flux according to IEC 62722-2- 1: 2500 lm
- Colour temperature: 4000 K
- Housing material: Plastic
- Material cover: Plastic, transparent
- Lamp holder: None
- Lamp type: LED not exchangeable
- Beam angle: > 80° - Extreme wide beam
- Width: 145 mm
- Length: 665 mm
- Height/depth: 101 mm
- Degree of protection (IP): IP66
- Mounting method: Ceiling mounting
- Impact strength: IK08
- Protection class according to IEC 61140: I
- Nominal voltage: 220-240 V
- Voltage type: AC
- Number of poles: 3
- Conductor cross section: 2.5 mm²
- With light source: Yes
- Rated ambient temperature according to IEC 62722-2-1: -25-40 °C
- With control gear: Yes
- For Ex-zone dust: 22
- For Ex-zone gas: 2
- Adjustable: No
- Rated life time L80/B10 at 25 °C: 50000 h
