Wall fixture LED Linus, SG-Armaturen
LINUS LED WHITE 17W LED 3000K LINUS
Article number: Suppl. article no:
7015140E
8246078759
to see price and stock

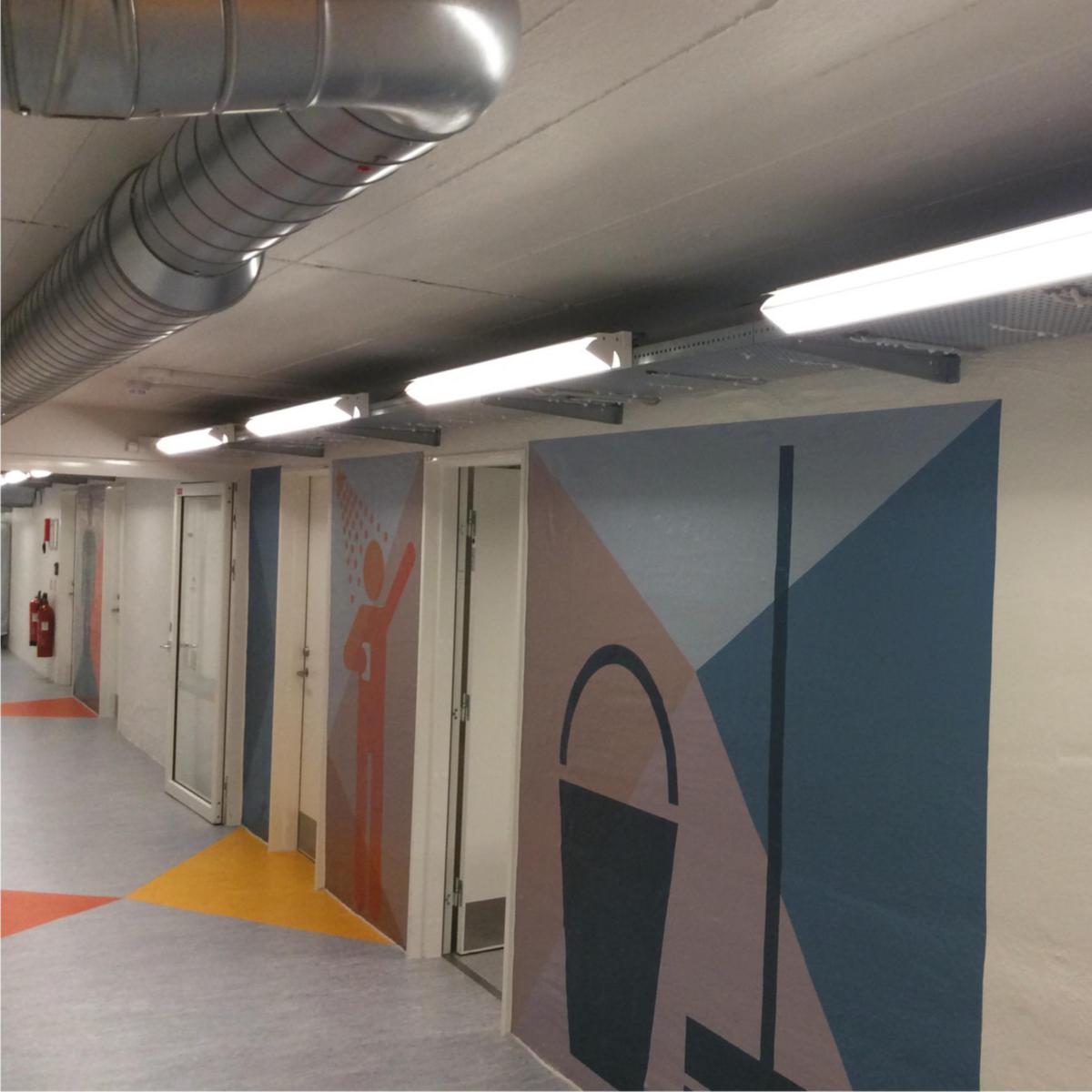

Linus has a direct / in. Light distribution to create a lighting relationship between ceiling and wall. Linus is suitable for corridors, stairwells and many other applications. Wall mounting. Frame of white lacquered sheet steel. Lens protection of prismatic shielding in PMMA. Connection via plug terminal 5x2x2.5 mm² located in the center. Cable entry on the top, center on the back and in each end.
- Article number: 7015140E
- Suppl. article no: 8246078759
- Ean no: 5703821162678
- Material class QT030A
Technical data
- Packagin Size: 1 ST/40 ST
- Max. system power: 17 W
- Rated luminous flux according to IEC 62722-2- 1: 1800 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: No
- Length: 1170 mm
- Width: 123 mm
- Height/depth: 90 mm
- Degree of protection (IP): IP20
- Impact strength: IK00
- Protection class according to IEC 61140: I
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Steel
- Nominal voltage: 220-240 V
- Voltage type: AC/DC
- With control gear: Yes
- Suitable for light line configuration: No
- Rated life time L80/B10 at 25 °C: 50000 h
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Colour rendering index CRI: 80-89
- Material cover: Plastic, structured
- Luminous flux adjustable: No
- Lamp type: LED not exchangeable
- Lamp holder: Other
- Suitable for built-in mounting: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Suitable for ceiling mounting: No
- Type of grid: White
- Beam angle: Wide beam 41-80°
- Suitable for workplace according to EN 12464-1: No
- Covering of the luminaire with thermally insulating material possible: No
- Number of poles: 3
- Conductor cross section: 2.5 mm²
- Dimming phase cut-off (trailing edge): No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming phase cut-on (leading edge): No
- Dimmable: No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Colour of light: White
- Luminaire efficacy: 106 lm/W
- Suitable for lamp power: 17 W
- Degree of protection (NEMA): Other
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: No
- Photobiological safety according to EN 62471: Other
- Beam angle adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 30
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 51
- IFTTT support available: No
- Exchangeable control gear: No
- Surface protection housing: Lacquered
- Light distribution: Asymmetric
- Light distributor: Other
- Energy efficiency class of the light source according to EU regulation 2019/2015: D
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Power factor: 100
- Light outlet: Direct
- Suitable for number of light sources: 1
- With air slots: No
- REACH Date: 2022-08-12
- REACH contains candidate substances: Bly
- Rated luminous flux according to IEC 62722-2-1: 1800 lm
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: Yes
- Dimming depending on control gear: No
