Hide-a-lite

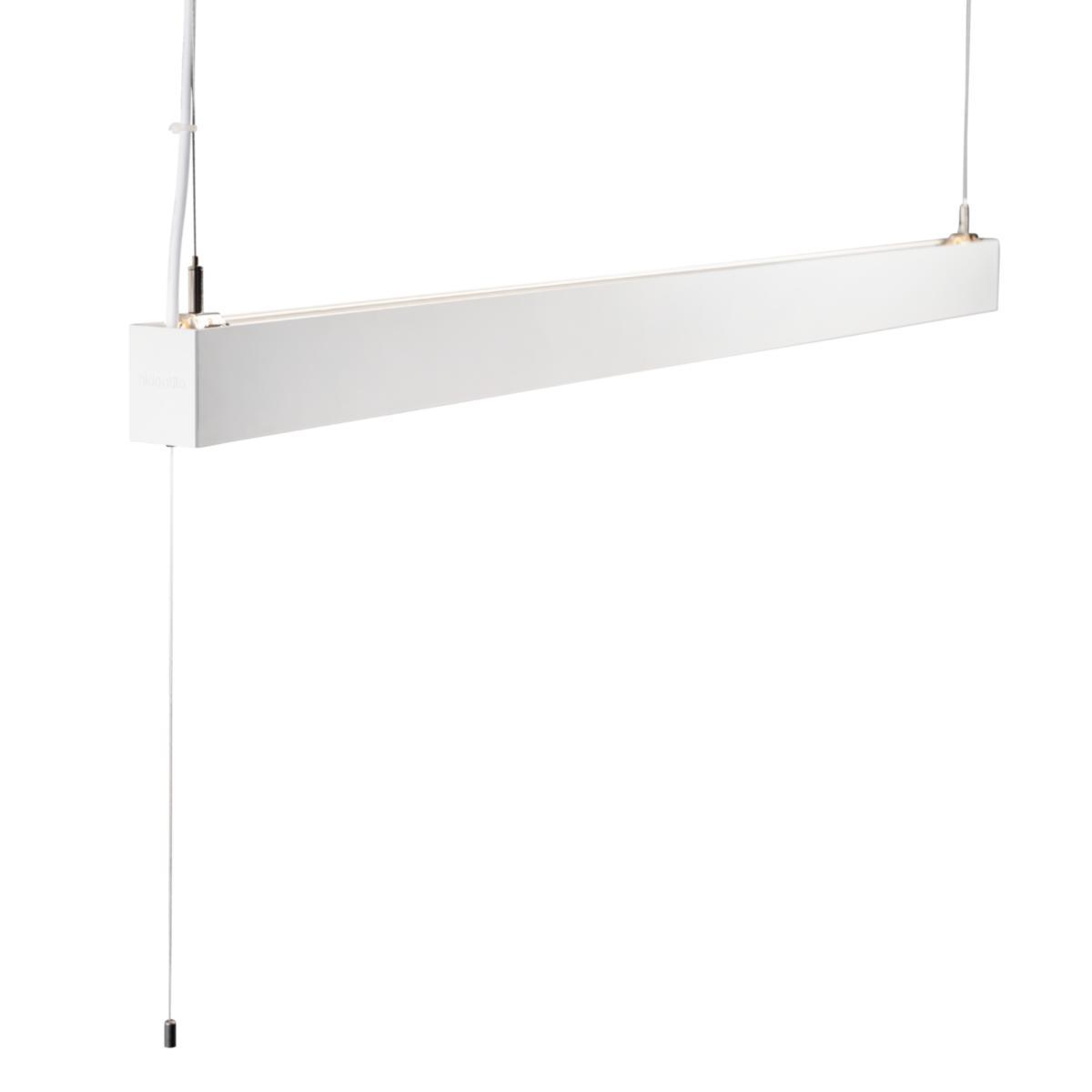

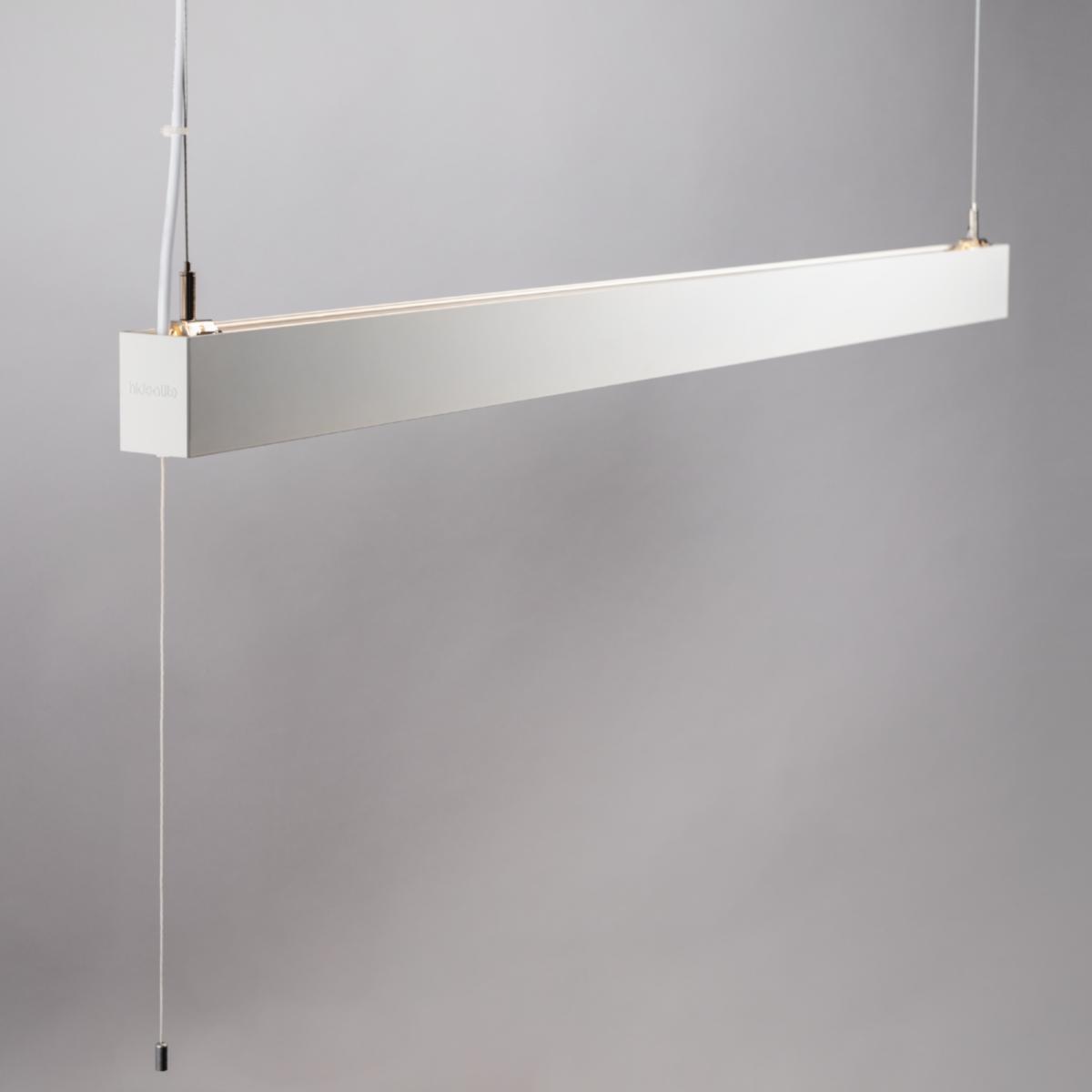

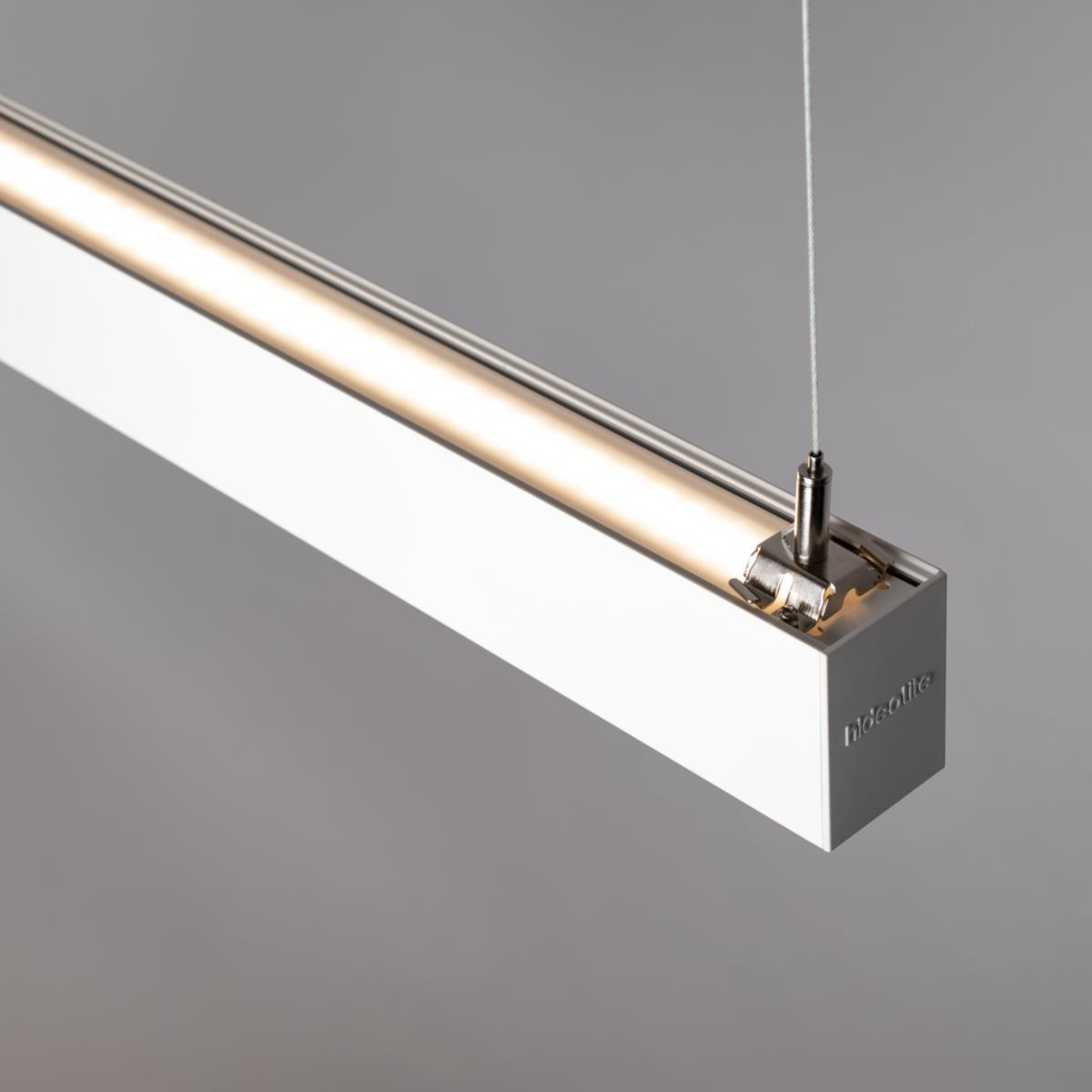

Pendant office luminaire Actor Basic, Hide-a-Lite
ACTOR BASIC PENDANT 830 50/50 ACTOR BASIC
Article number: Suppl. article no:
7017968
7017968
to see price and stock
Dimmable base luminaire with light distribution 50/50, perfect for offices and smaller premises. Frame and ends of white lacquered aluminum. Microprismatic glare protection creates a well-dimmed light image downwards and the illumination creates an indirect and shadow-free ambient light. A switch for common dimming of up and down lights with memory function for the last set value after voltage drop. Complete with mounting accessories for several types of roof and 2.5m cord rack with grounded plug.
- Article number: 7017968
- Suppl. article no: 7017968
- Ean no: 7392971138695
- Material class QT0320
Technical data
- Packagin Size: 1 ST/4 ST/4 ST
- Max. system power: 46 W
- Rated luminous flux according to IEC 62722-2- 1: 4550 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Degree of protection (IP): IP20
- Length: 1167 mm
- Width: 48 mm
- Height/depth: 66 mm
- Protection class according to IEC 61140: I
- With control gear: Yes
- Colour rendering index CRI: 80-89
- Colour consistency (McAdam ellipse): SDCM3
- Lamp type: LED not exchangeable
- Colour of light: White
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- With light source: Yes
- Dimming with push-button: No
- Direct-/indirect proportion separately controllable: No
- Suitable for light line configuration: No
- Pendant length: 100-2000 mm
- Type of grid: Matt
- With suspension: Yes
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimmable: Yes
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming Touch and Dim: No
- Dimming mains voltage modulation: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: Yes
- Type of control gear: LED operating device current-controlled
- Power factor: 0.9
- Lamp holder: None
- Conductor cross section: 0.75 mm²
- Light distributor: Reflector
- Light distribution: Symmetric
- Luminaire efficacy: 99 lm/W
- Light outlet: Direct/indirect
- Suitable for number of light sources: 1
- Suitable for emergency lighting: No
- Material cover: Plastic matt/satinized
- Housing material: Aluminium
- Nominal voltage: 220-240 V
- Reflector: Matt
- Voltage type: AC
- Type of wiring: Ending
- Connection type: Push-in clamp
- REACH Date: 2022-06-01
- LED nominal current at constant current: 1050 mA
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming GPRS: No
