SG Armaturen

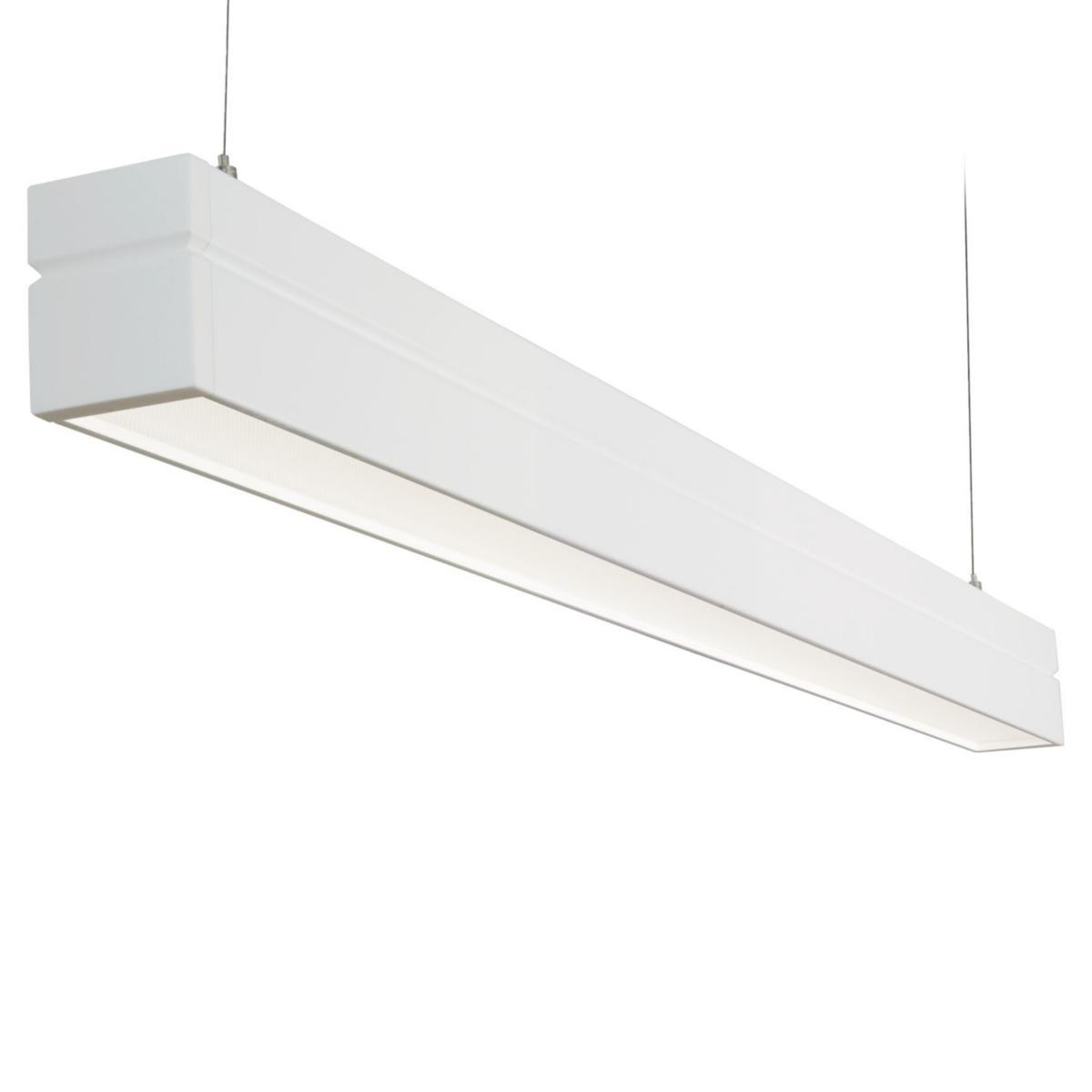

Office luminaire LED Facet Hanging, SG-Armaturen
FACET WITHE
Article number: Suppl. article no:
7015122
8246086097
to see price and stock
Facet is a suspended office luminaire with direct / ind. light distribution. Delivered complete with wire suspension and 2.5 m connection cable. Steel plate frame with ends made of ABS plastic and clear plastic plate as dust protection on the top.
- Article number: 7015122
- Suppl. article no: 8246086097
- Ean no: 5703821166102
- Material class QT030A
Technical data
- Packagin Size: 1 ST/98 ST
- Design: Dim
- Max. system power: 27 W
- Rated luminous flux according to IEC 62722-2- 1: 3290 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: No
- Length: 1164 mm
- Width: 64 mm
- Height/depth: 80 mm
- Degree of protection (IP): IP20
- Impact strength: IK00
- Protection class according to IEC 61140: I
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Steel
- Nominal voltage: 220-240 V
- Voltage type: AC/DC
- With control gear: Yes
- Suitable for light line configuration: No
- Rated life time L80/B10 at 25 °C: 50000 h
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Colour rendering index CRI: 80-89
- Material cover: Plastic, structured
- Luminous flux adjustable: No
- Lamp type: LED not exchangeable
- Lamp holder: Other
- Suitable for built-in mounting: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: Yes
- Suitable for surface mounting: No
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Suitable for ceiling mounting: Yes
- Type of grid: Other
- Beam angle: 41-80° - Wide beam
- Suitable for workplace according to EN 12464-1: Yes
- Covering of the luminaire with thermally insulating material possible: No
- Number of poles: 3
- Conductor cross section: 0.75 mm²
- Dimming phase cut-off (trailing edge): No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: Yes
- Dimming Touch and Dim: Yes
- Dimming phase cut-on (leading edge): No
- Dimmable: Yes
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Colour of light: White
- Luminaire efficacy: 122 lm/W
- Suitable for lamp power: 27 W
- Degree of protection (NEMA): Other
- Type of wiring: Ending
- Operation by Bluetooth: No
- Photobiological safety according to EN 62471: Other
- Beam angle adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 28
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 45
- IFTTT support available: No
- Exchangeable control gear: No
- Surface protection housing: Lacquered
- Light distribution: Symmetric
- Light distributor: Other
- Suitable for wall mounting: No
- Connection type: Plug
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Power factor: 100
- Light outlet: Direct/indirect
- Suitable for number of light sources: 1
- With air slots: No
- REACH Date: 2022-08-29
- REACH contains candidate substances: Bly
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: Yes
- Dimming depending on control gear: No
