Designlight

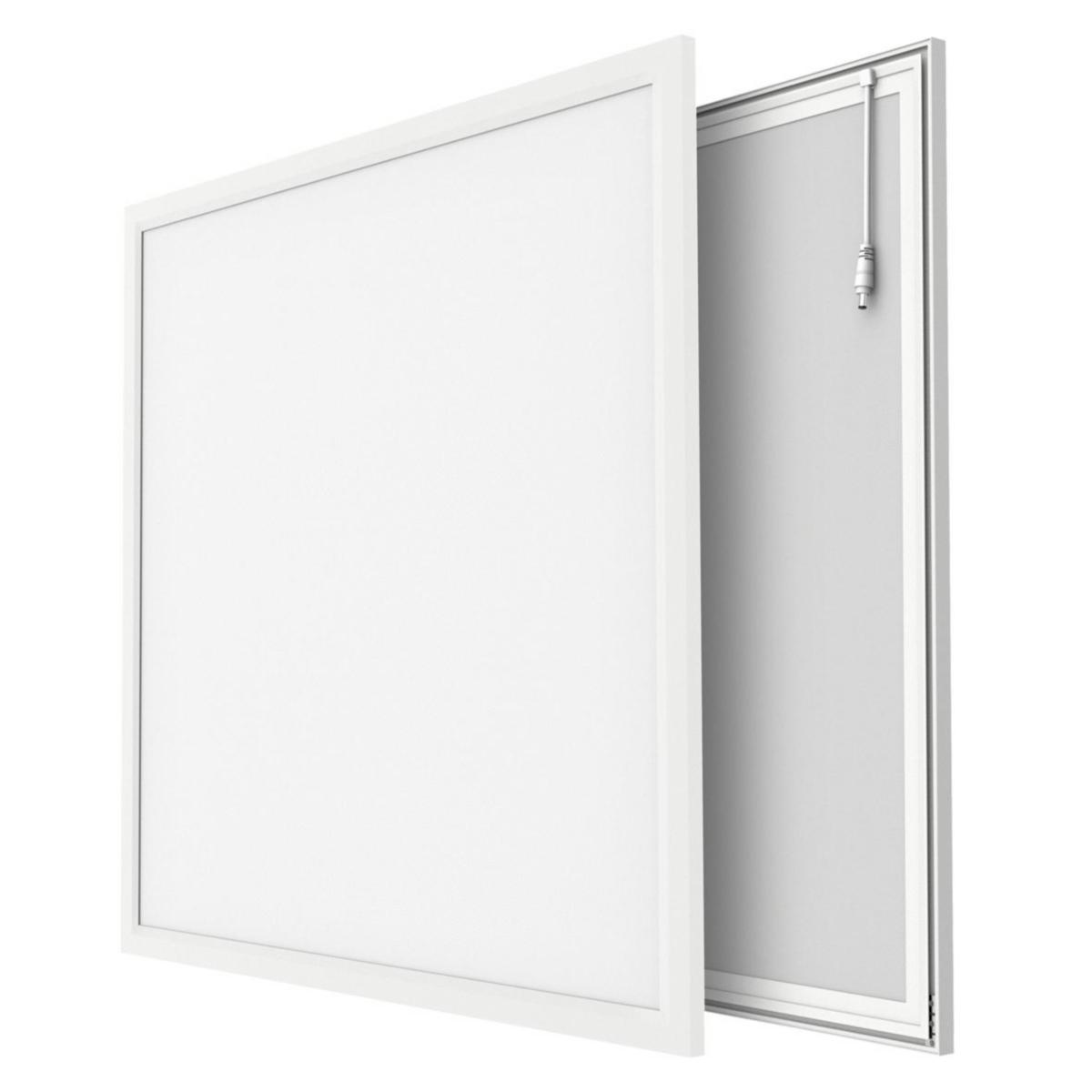

Recessed interior luminaire Sixty Basic
Panel Sixty Basic 3K 8-P
Article number: Suppl. article no:
7026961
LPB-60x60MW3K-8
to see price and stock
Sixty Basic, high-performance LED panel 36 watts, (595x595) frame in elegant white (RAL9003) design that offers pleasant flicker-free light with a high luminous flux (3600lm). Opalized dome, 110° dispersion angle. Sixty Basic is delivered in a flexible project pack of 8 panels including drive. The panel is only 7 mm and is easily mounted in the supporting structure of the suspended ceiling (595x595). On/off, operates with pre-assembled cord rack and Euro plug (2m).
- Article number: 7026961
- Suppl. article no: LPB-60x60MW3K-8
- Ean no: 7340132805962
- Material class QT0400
Technical data
- Energy label: F
- Max. system power: 36 W
- Rated luminous flux according to IEC 62722-2- 1: 3600 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Dimming DALI-2: No
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: No
- Length: 595 mm
- Width: 595 mm
- Height/depth: 7 mm
- Degree of protection (IP): IP40
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Colour rendering index CRI: 80-89
- Colour of light adjustable: No
- Constant light output (CLO): No
- Material cover: Plastic matt/satinized
- Luminous flux adjustable: No
- Built-in width: 595 mm
- Lamp type: LED not exchangeable
- Lamp holder: Other
- Suitable for built-in mounting: Yes
- Suitable for suspended mounting: Yes
- Built-in length: 595 mm
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Beam angle: Open beam/diffuse
- Covering of the luminaire with thermally insulating material possible: No
- Dimming phase cut-off (trailing edge): No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming phase cut-on (leading edge): No
- Dimmable: No
- Colour of light: White
- Luminaire efficacy: 100 lm/W
- Suitable for lamp power: 30-36 W
- Type of wiring: Ending
- Operation by Bluetooth: No
- Beam angle adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Emergency power supply integrated: No
- Exchangeable control gear: Yes
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Compatible with Casambi: No
- Suitable for wall mounting: No
- Built-in height/depth: 7 mm
- Connection type: Plug
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Power factor: 0.95
- Light outlet: Direct
- With air slots: No
- REACH Date: 2023-10-27
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- REACH Information obligation: No
