AhlsellProductsElectricLighting 70-8370 Interior light luminairesRecessed luminaires and accessoriesRecessed luminaires
Designlight

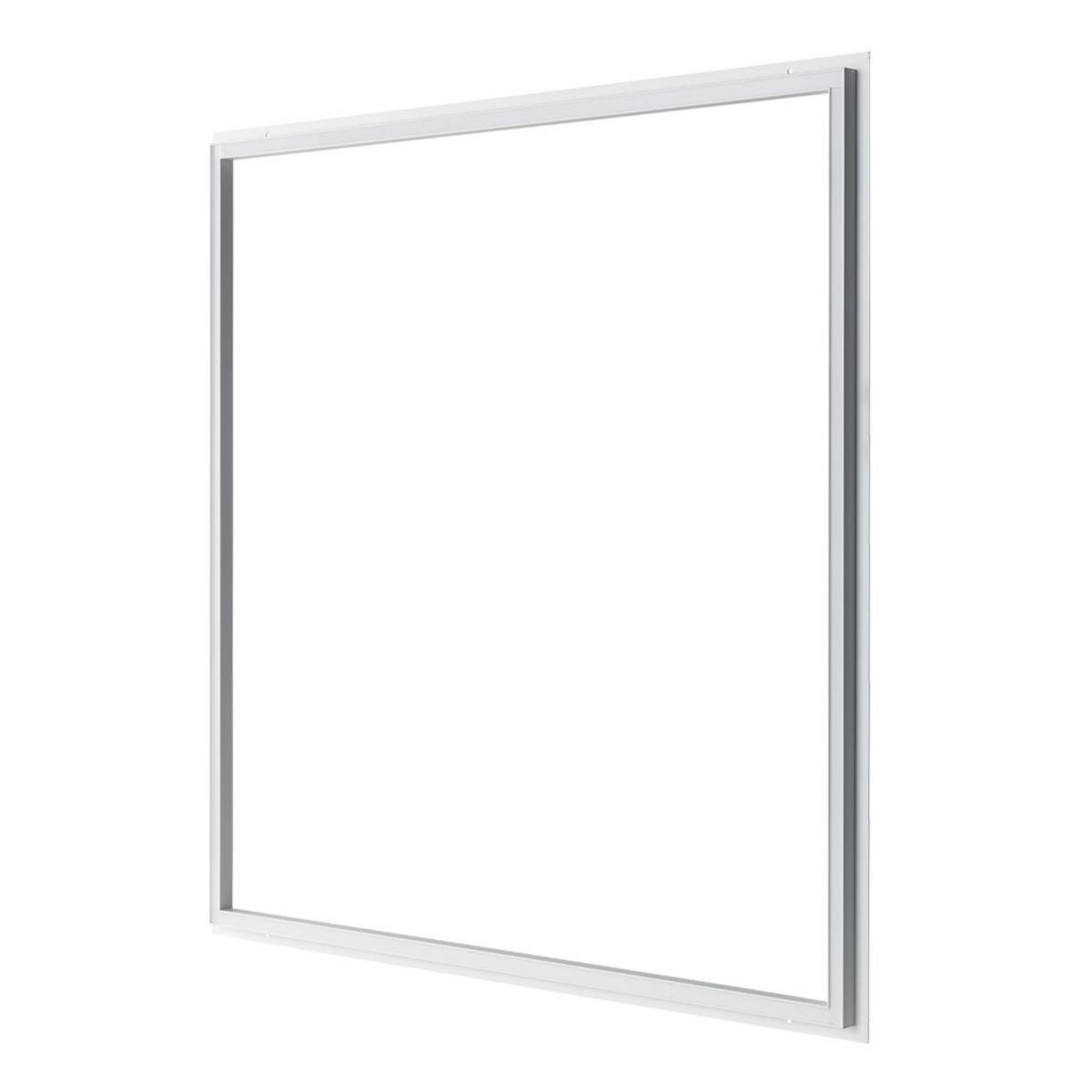

Recessed interior luminaire Framy
Panel 60x60 Framy 3K White
Article number: Suppl. article no:
7026781
LPF-60x60MW3K
to see price and stock
Framy a brilliant light frame 36 watts, (595x595), design that offers pleasant flicker-free light. Prismatic surface provides minimal glare (UGR19). 3600lm. 90° scattering angle. Framy - ideal for environments that require good and pleasant general lighting, fits perfectly in a variety of places such as; restaurants, malls, schools, offices, shops. Framy is only 14 mm and is easily mounted in the supporting structure of the suspended ceiling. The plate in the false ceiling where Framy is installed is simply put back and fits into the Framy frame without modification.
- Article number: 7026781
- Suppl. article no: LPF-60x60MW3K
- Ean no: 7340132805832
- Material class QT0400
Technical data
- Packagin Size: 1 PCS/5 PCS
- Energy label: F
- Max. system power: 36 W
- Rated luminous flux according to IEC 62722-2- 1: 3600 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Dimming DALI-2: No
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: No
- Length: 595 mm
- Width: 595 mm
- Height/depth: 14 mm
- Degree of protection (IP): IP20
- Unified Glare Ratio (UGR): 19
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 70000 h
- Colour rendering index CRI: 80-89
- Colour of light adjustable: No
- Constant light output (CLO): No
- Material cover: Plastic matt/satinized
- Luminous flux adjustable: No
- Built-in width: 595 mm
- Lamp type: LED not exchangeable
- Lamp holder: Other
- Suitable for built-in mounting: Yes
- Suitable for suspended mounting: Yes
- Built-in length: 595 mm
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Beam angle: Open beam/diffuse
- Covering of the luminaire with thermally insulating material possible: No
- Dimming phase cut-off (trailing edge): No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming phase cut-on (leading edge): No
- Dimmable: No
- Colour of light: White
- Luminaire efficacy: 100 lm/W
- Luminaire efficacy: 100 lm/W
- Suitable for lamp power: 30-36 W
- Type of wiring: Ending
- Operation by Bluetooth: No
- Beam angle adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Emergency power supply integrated: No
- Exchangeable control gear: Yes
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Compatible with Casambi: No
- Suitable for wall mounting: No
- Built-in height/depth: 14 mm
- Connection type: Plug
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Power factor: 0.95
- Light outlet: Direct
- With air slots: No
- REACH Date: 2023-09-29
- Rated luminous flux according to IEC 62722-2-1: 3600 lm
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- REACH Information obligation: No
