Interior luminaire Sense Opalprismatic, SG-Armaturen
Sense Pro 600x600 3K Ra>80
Artikelnummer: Lev. artikelnr:
7024625
212670
för att se saldo och pris

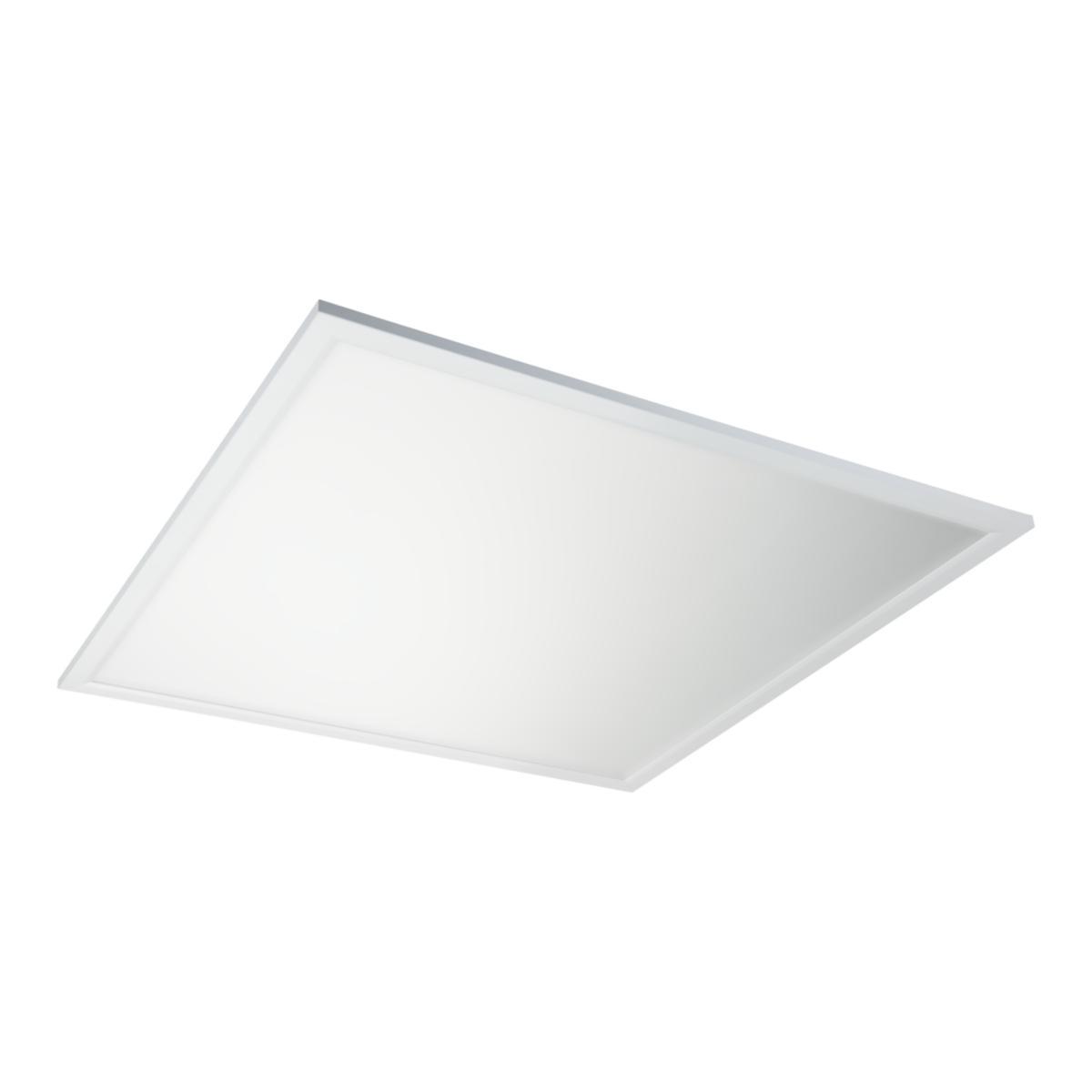

Rectangular or square LED panel with opal prismatic shielding. Can be laid in T-profiles, mounted on the surface with an extension frame or suspended with a wireset. For example, size 300x1200 can be advantageously suspended over a table and combined with 600x600 tiles in the ceiling for the same consistent design execution. Driver ordered separately (lumen and power determined by driver).
There are 3 types of driver kits:
3000 Lumens
- Driver kit 700mA 7981370 gives 26W and 3300lm. Schucko connection and dimmable with rear edge dimmer.
- Driver kit 700mA 7981866 gives 26W and 3300lm. Quick-connect connection Linect 3-pole and dimmable with rear edge dimmer.
- Driver kit 700mA 7981373 gives 26W and 3300lm. DALI Quick-connect connection Linect 5-pin.
4000 Lumens
- Driver kit 900mA 7981981 gives 33W and 4300lm. Schucko connection and not dimmable.
- Driver kit 900mA 7981983 gives 33W and 4300lm. Quick-connect connection Linect 3-pole and not dimmable
- Driver kit 900mA 7981982 gives 33W and 4300lm. DALI Quick-connect connection Linect 5-pin.
5000 Lumens
ATTENTION! Driver kit 1050mA does not work for SENSE 300x1200 (7017999 and 7018000).
-Driver kit 1050mA 7981984 gives 40W and 5000lm. Schucko connection and not dimmable.
- Driver kit 1050mA 7981986 gives 40W and 5000lm. Quick-connect connection Linect 3-pole and not dimmable
- Driver kit 1050mA 7981985 gives 40W and 5000lm. DALI Quick-connect connection Linect 5-pin.
There are 3 types of driver kits:
3000 Lumens
- Driver kit 700mA 7981370 gives 26W and 3300lm. Schucko connection and dimmable with rear edge dimmer.
- Driver kit 700mA 7981866 gives 26W and 3300lm. Quick-connect connection Linect 3-pole and dimmable with rear edge dimmer.
- Driver kit 700mA 7981373 gives 26W and 3300lm. DALI Quick-connect connection Linect 5-pin.
4000 Lumens
- Driver kit 900mA 7981981 gives 33W and 4300lm. Schucko connection and not dimmable.
- Driver kit 900mA 7981983 gives 33W and 4300lm. Quick-connect connection Linect 3-pole and not dimmable
- Driver kit 900mA 7981982 gives 33W and 4300lm. DALI Quick-connect connection Linect 5-pin.
5000 Lumens
ATTENTION! Driver kit 1050mA does not work for SENSE 300x1200 (7017999 and 7018000).
-Driver kit 1050mA 7981984 gives 40W and 5000lm. Schucko connection and not dimmable.
- Driver kit 1050mA 7981986 gives 40W and 5000lm. Quick-connect connection Linect 3-pole and not dimmable
- Driver kit 1050mA 7981985 gives 40W and 5000lm. DALI Quick-connect connection Linect 5-pin.
- Article number: 7024625
- Suppl. article no: 212670
- Ean no: 7021982126703
- Material class QT0300
Teknisk data
- Packagin Size: 1 PCS/4 PCS/28 PCS/28 PCS
- Design: Ra 80
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: No
- Length: 597 mm
- Width: 597 mm
- Height/depth: 11 mm
- Degree of protection (IP): IP40
- Impact strength: IK10
- Protection class according to IEC 61140: III
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Aluminium
- Voltage type: DC
- With control gear: No
- Suitable for light line configuration: No
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Colour rendering index CRI: 80-89
- Material cover: Plastic, opal
- Luminous flux adjustable: No
- Lamp type: LED not exchangeable
- Lamp holder: Other
- Suitable for built-in mounting: Yes
- Suitable for emergency lighting: No
- Suitable for suspended mounting: Yes
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Beam angle: > 80° - Extreme wide beam
- Suitable for workplace according to EN 12464-1: No
- Covering of the luminaire with thermally insulating material possible: No
- Number of poles: 2
- Conductor cross section: 1 mm²
- Dimming phase cut-off (trailing edge): No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming phase cut-on (leading edge): No
- Dimmable: Yes
- Filament test according to IEC 60695-2-11: None
- Colour of light: White
- Suitable for lamp power: 25-38 W
- Degree of protection (NEMA): Other
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: No
- Photobiological safety according to EN 62471: Other
- Beam angle adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Emergency power supply integrated: No
- Exchangeable control gear: Yes
- Surface protection housing: Lacquered
- Light distribution: Symmetric
- Light distributor: Other
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Suitable for wall mounting: No
- Nominal current: 700-1050 mA
- Built-in height/depth: 49 mm
- Connection type: Other
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Light outlet: Direct
- Suitable for number of light sources: 1
- With air slots: No
- REACH Date: 2023-08-17
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- REACH Information obligation: No
