Interior luminaire LED panel 600X600 Cefalu
LEDPANEL 30W830NO DRIVER
Artikelnummer: Lev. artikelnr:
7019475
7072907787868
för att se saldo och pris

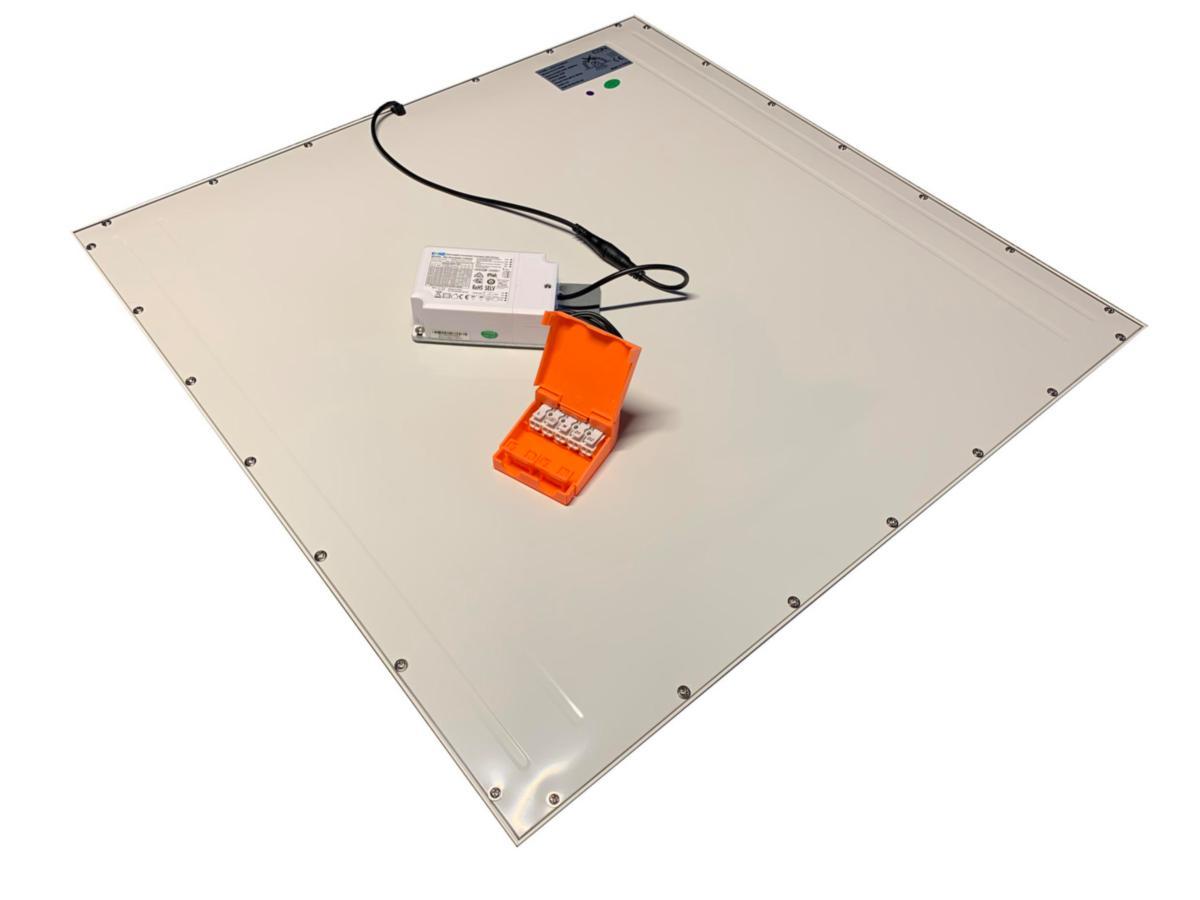

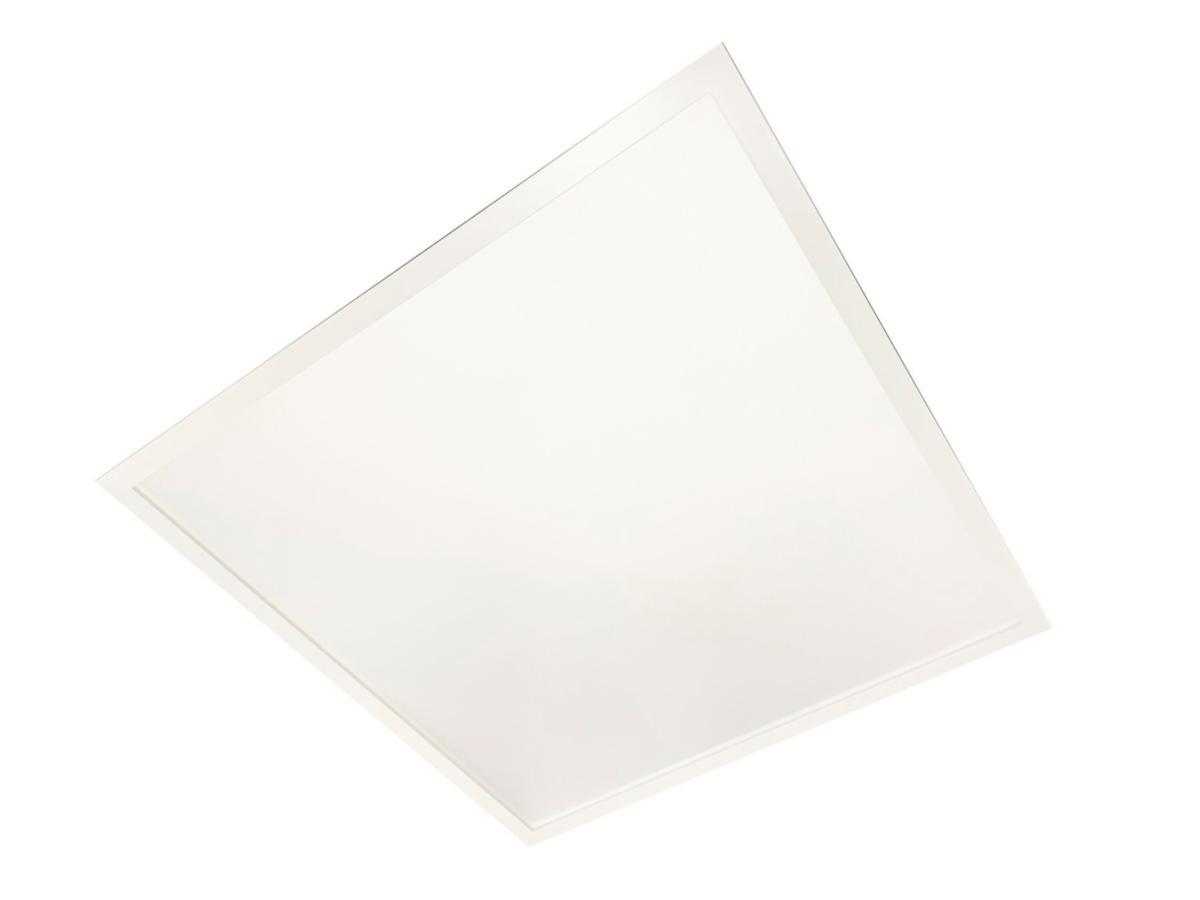

Cefalu is a low slim LED panel with good performance as it maintains UGR<19 and 135lm/W.
- Article number: 7019475
- Suppl. article no: 7072907787868
- Material class QT0380
Teknisk data
- Max. system power: 30 W
- Rated luminous flux according to IEC 62722-2- 1: 3809 lm
- Colour temperature: 2950-3000 K
- Housing colour: White
- Dimming DALI: Yes
- Dimming DALI-2: No
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: Yes
- Length: 595 mm
- Width: 595 mm
- Height/depth: 10 mm
- Degree of protection (IP): IP44
- Protection class according to IEC 61140: II
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Aluminium
- Nominal voltage: 220-230 V
- Voltage type: AC/DC
- With control gear: No
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated life time L80/B10 at 25 °C: 50000 h
- Colour rendering index CRI: 80-89
- Constant light output (CLO): No
- Material cover: Plastic, structured
- Lamp type: LED not exchangeable
- Suitable for built-in mounting: Yes
- Suitable for suspended mounting: Yes
- Suitable for surface mounting: Yes
- With light source: Yes
- Suitable for ceiling mounting: Yes
- Beam angle: 41-80° - Wide beam
- Suitable for workplace according to EN 12464-1: Yes
- Number of poles: 2
- Dimming phase cut-off (trailing edge): No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: Yes
- Dimming DMX: No
- Dimming DSI: Yes
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: Yes
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming phase cut-on (leading edge): No
- Dimmable: Yes
- Colour of light: White
- Luminaire efficacy: 127 lm/W
- Type of wiring: Loop-through wiring included
- Exchangeable control gear: Yes
- Surface protection housing: Lacquered
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Energy efficiency class of the light source according to EU regulation 2019/2015: A
- Suitable for wall mounting: No
- Power factor: 0.9
- Light outlet: Direct
- REACH Date: 2021-01-01
- Dimming LineSwitch: Yes
- Dimming Sine Wave Reduction: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
