JK Belysning

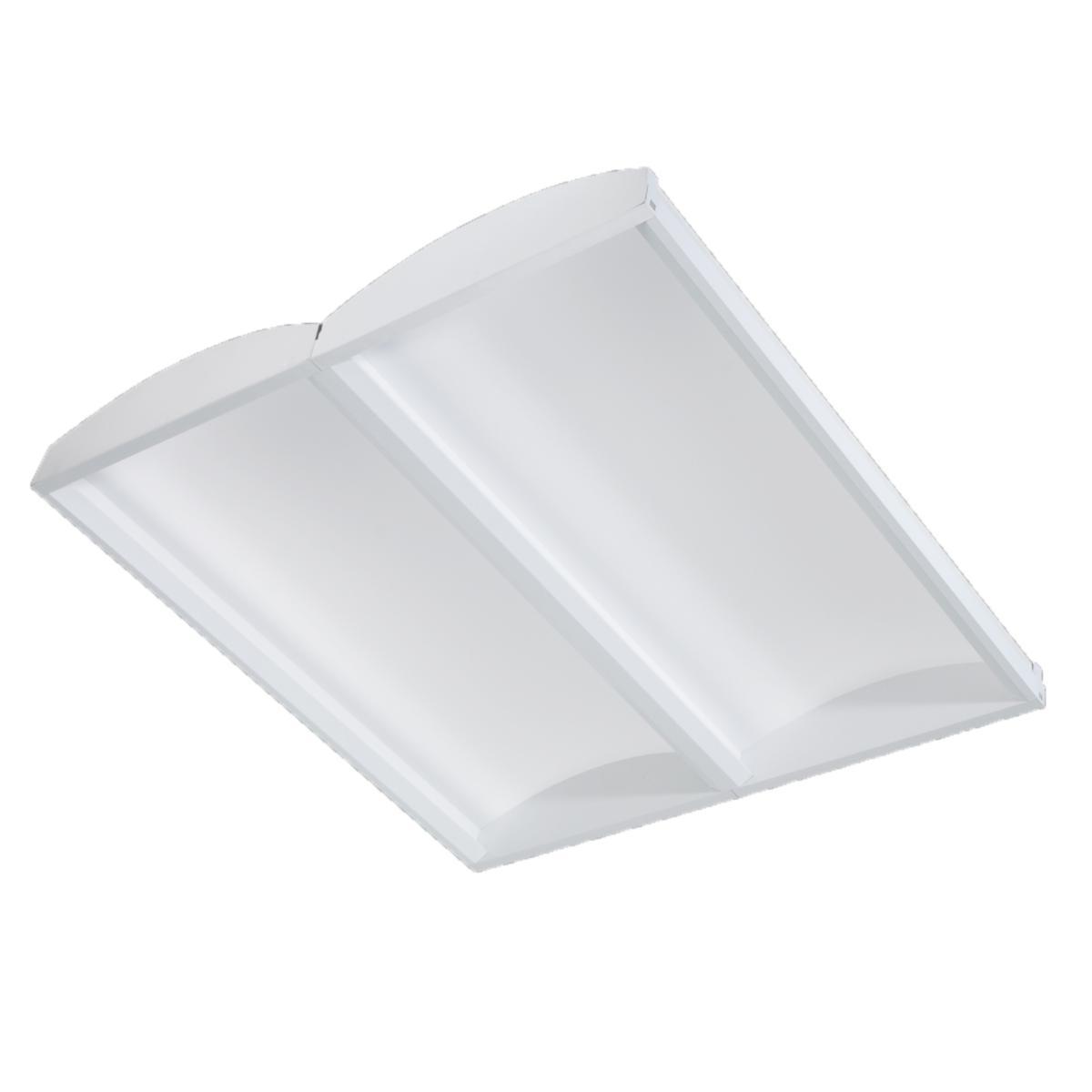

Interior luminaire Ecolumi, JK Belysning

ARM ECOLITE60 28W 3000K CRI90 ECOLUMI 60
Article number:
7017217
Suppl. article no:
78-0150-000009





 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Undviks.
The product range ECOLUMI has been created with thoughts about circular economy and sustainability, where the luminaire must be able to be continuously upgraded in accordance with the needs of the area and the demands of time. The patented reflector, which is in all products, reflects 99% of the light from the hidden light sources, which provides a high luminous flux but with low glare, an indirect lighting. Diffusion angle of 138°, UGR value <19. Driver is ordered separately, the driver comes with a quick connection to the luminaire: 7981916 (1-10V) 7981917 (DALI)
  • Article number:
    7017217
  • Suppl. article no:
    78-0150-000009
  • Material class
    QT0350
Technical data
  • Design: Dimable
  • Max. system power: 28 W
  • Rated luminous flux according to IEC 62722-2- 1: 3045 lm
  • Colour temperature: 3000 K
  • Housing colour: White
  • Length: 600 mm
  • Width: 600 mm
  • Height/depth: 85 mm
  • Degree of protection (IP): IP20
  • Protection class according to IEC 61140: II
  • Colour consistency (McAdam ellipse): SDCM3
  • Nominal voltage: 220-240 V
  • Voltage type: AC
  • With control gear: No
  • Rated life time L80/B10 at 25 °C: 50000 h
  • Colour rendering index CRI: 90-100
  • Lamp type: LED not exchangeable
  • Beam angle: > 80° - Extreme wide beam
  • Power factor: 0.95
